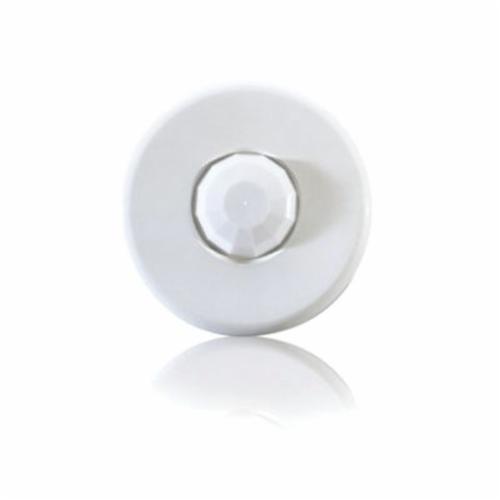

WattStopper® CI-205-1 Ceiling Mount Occupancy Sensors, 24 VAC, Passive Infrared Sensor, 500 sq-ft Coverage, 360 deg
Ceiling Mount Occupancy Sensors
1196074
MFG #: CI-205-1
WattStopper®
127.73000
/ ea
- http://www.passandseymour.com(Seller Home Page URL)
- Install Instructions URL - IDW_DOCUMENT_1525182557035.pdf(Install Instructions URL)
- Spec Sheet URL - ws-cutsheet-ci-200_3710.pdf(Spec Sheet URL)
- Tech Drawing URL - ci-200.aspx(Tech Drawing URL)
- Video - https://www.youtube.com/embed/qsVCQV9uGKM(Video)
- Warranty URL - ID-WAR-v1-ws-warranty_standard-product-warranty.pdf(Warranty URL)
- Applications
- Features
| Office Spaces, Classrooms, Warehouses |
| Passive Infrared |
| 95% relative humidity, non-condensing, for indoor use only environmental conditions |
| This passive infrared (PIR) ceiling sensor provides 360 deg coverage to detect occupancy in the controlled area |
| These low profile sensors reliably control lighting in a variety of applications |
| Detection signature analysis eliminates false triggers and provides immunity to RFI and EMI |
| Pulse count processing eliminates false-off without reducing sensitivity |
| ASIC technology reduces components and enhances reliability |
| Low-profile design ensures a clean and uncluttered ceiling appearance |
| User-adjustable time delay from 15 seconds to 30 minutes by two-minute increments |
| Sensitivity is programmed through a DIP switch which has four settings ranging from minimum to maximum |
| Light level output can create bi-level lighting for added convenience and energy savings |
| Isolated relay can be used to interface with HVAC, EMS or an additional lighting load |
| Dual element, temperature compensated pyroelectric sensor |
| 1 A at 24 VDC/VAC load |
