GET FULLY ASSEMBLED PANELBOARDS WHEN YOU NEED THEM
24-48 HOURS |
When you need it quick. |
WITHIN 7 DAYS |
Choose the day you need it. |
UP TO 2 WEEKS |
Delivered on your schedule. |

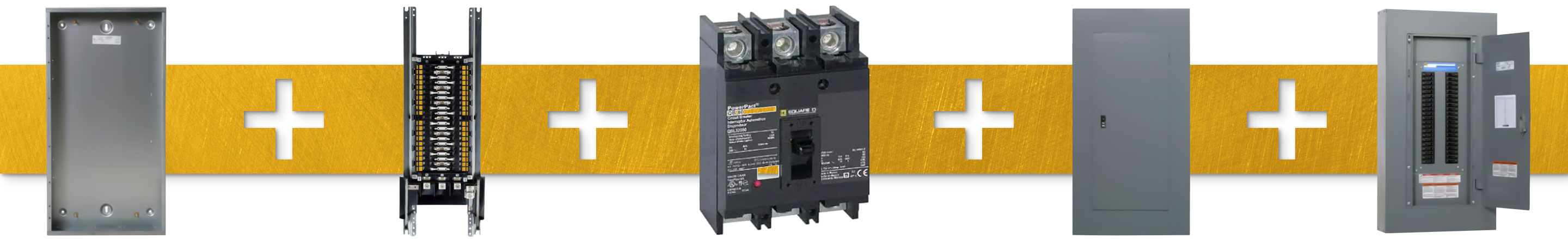

Save time and reduce labor costs with ready-to-install panelboards complete with box, interior, trim and circuit breakers.
Let Steiner’s factory-trained technicians complete the assembly for you with reliable Square D™ parts that meet your requirements. Fully assembled panelboards typically take up to three weeks to receive direct from the manufacturer. With Steiner’s large local inventory, knowledgeable gear team and expert assemblers you can get exactly what you need ready for pickup or delivery in as little as 24 hours*.
Delivered in minimum waste packaging for a greener jobsite and reduced cleanup costs.
PANELBOARD CONFIGURATIONS CAN INCLUDE
Square D™ Panelboards
♦ NQ Lighting & Appliance Panelboards (120/208 Vac Max.)
♦ NF Lighting & Appliance Panelboards (480/277 Vac Max.)
♦ I-Line™ Power Distribution Panelboards (600 Vac Max.)
Square D™ Circuit Breakers (10A to 1200A)
♦ PowerPact® I-Line™ Molded Case Circuit Breakers
♦ QO® and QOB Miniature Circuit Breakers
NQ Panelboards | NF Panelboards | I-Line Panelboards | |
Ampacity | 100A to 400A MB & MLO | 100A to 400A MB & MLO | 100A to 1200A MB & MLO |
# of Circuits | 18, 30, 42, + Many more options available | 18, 30, 42, + Many more options available | 18, 30, 42, + More (Up to 108" Mtg. Space Available) |
# of Sub-Feed Breakers |
Maximum 2 breakers up to 225A | Maximum 2 breakers up to 225A | N/A for I-Line Applications |
Phase/Voltage Configuration |
∙120/208 3PH/4W ∙120/240 1PH/3W |
∙480/277 3PH/4W ∙120/208 3PH/4W |
∙480/277 3PH/4W ∙120/208 3PH/4W |
Enclosure Type | NEMA 1, NEMA 3R/5/12 | NEMA 1, NEMA 3R/5/12 | NEMA 1, NEMA 3R/5/12 |
Trim Type | ∙Surface Mono-Flat Front ∙Flush Mono-Flat Front |
∙Surface Mono-Flat Front ∙Flush Mono-Flat Front |
∙Surface With Door ∙Surface Without Door |
Bussing | Copper or Aluminum* | Copper or Aluminum* | Copper |
Ampere Interrupting Capacity (AIC) |
AIC at 120/208V ∙10 kAIC to 42 kAIC (Depending on configuration) ∙Many options available. Contact one of our Gear Specialists today for assistance. |
AIC at 480/277V ∙14 kAIC to 65 kAIC (Depending on configuration) ∙Many options available. Contact one of our Gear Specialists today for assistance. |
AIC at 120/208V AIC at 480/277V ∙10 kAIC to 65 kAIC (Depending on configuration) ∙Many options available. Contact one of our Gear Specialists today for assistance. |
Breaker Functions & Modifications |
Many options available. Contact one of our Gear Specialists today for assistance. | Many options available. Contact one of our Gear Specialists today for assistance. | Many options available. Contact one of our Gear Specialists today for assistance. |
*Aluminum available within 7 days
- 480V 3PH/3W can only be pulled off a 3PH/4W WYE System.
- I-Line breakers currently in stock at Steiner. Contact one of our gear specialists for assistance with any I-Line emergency needs.
The Steiner gear team can help you select the right panelboard configuration to meet your requirements and get fully assembled ready-to-install units to you fast!
Steiner has been a proud Square D Authorized Distributor since 1935, with one of the largest inventories in the Midwest.
Have a specific manufacturer’s panelboard to cross reference? Give one of our gear specialists a call for a compatible solution to meet your requirements.
*Some restrictions may apply. Please consult your Steiner Gear Team representative to review requirements.
