IDEAL Test and Measurement

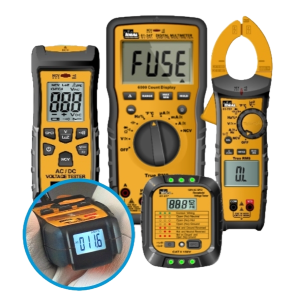

The integrated flashlights and backlit display on the unit enhance visibility by illuminating your workspace and ensuring you can easily read measurements in dark environments. The new universal hanging strap clip and convenient probe holders allow for easier maneuvering, freeing up your hands for more precise testing in tight spaces. Additionally, the patented TightSight® LCD Display, positioned at the bottom of the unit, streamlines measuring by eliminating the need to bend or twist conductors or place your head near the panel, ensuring safer and more efficient testing. Download Sell Sheet

Shop IDEAL Testers & Meters

Features & Benefits

  • TightSight® Display: The patented TightSight® display enables safer and more convenient readings by allowing you to view measurements from a safe distance, eliminating the need to twist the meter or risk pulling on an energized conductor.
  • Probe Holders and Hanging Straps: Integrated probe holders free up a hand during testing, while an optional hanging strap allows the meter to be securely attached to a nail, screw, or magnetic surface for easier maneuverability.
  • Notifications: Multimeters designed to measure current include Lead Warning and Fuse Blown notifications, preventing use with leads in the wrong ports and alerting users when a fuse is blown, enhancing safety and preventing misuse.
  • New Features: The redesigned Circuit Breaker Finder simplifies circuit identification with added features like a built-in flashlight, NCVT, GFCI Trip test indicator, and a lighter design compared to older models.
Electrical Testers & Meters

Features Worth Looking For:

  • Battery Life: A longer battery life ensures that the meter can be used for extended periods without frequent replacements, enhancing convenience and reducing downtime.
  • Alert/Tone Technology: Audible alerts and tone indicators improve safety and efficiency by providing immediate feedback during testing, helping to identify issues quickly.
  • Clear Digital Display with Backlight: A high-contrast digital display with backlighting makes it easy to read measurements in low-light or dark environments, reducing the chance of errors.
  • Heavy Duty: A robust and durable design ensures the meter can withstand demanding work conditions, providing longevity and reliability.
  • Certifications: Meters with industry-standard certifications guarantee that they meet safety and performance requirements, ensuring trust and compliance.
  • One-Handed Design: An ergonomic design that allows for one-handed operation improves ease of use, especially in tight or awkward spaces, enabling professionals to work more efficiently.

Download Test Lead Chart

Choosing the Right Meter: Benefits and Advantages

  • Enhanced Safety: Choosing the correct meter improves safety, particularly in high-current applications. Clamp or fork meters are safer than probe-based multimeters as they allow current measurements without breaking the circuit, minimizing the risk of arc flashes.
  • Convenience with Clamp Meters: Clamp meters are often the easiest to use when isolating a single conductor from a group and offer the convenience of hands-free readings by hanging directly from conductors.
  • Efficiency in Tight Spaces: Fork meters provide an advantage in confined spaces, allowing prongs to fit around conductors without needing to manipulate the clamp, making them more practical for tight environments.
  • Practicality Despite Bulkiness: Although clamp meters tend to be bulkier, their ability to hang from conductors ensures practical hands-free operation during testing.
  • Improved Visibility: Some manufacturers include a secondary display at the base of clamp meters, making it easier to read measurements in dark or hard-to-reach junction boxes.
.

Category Ratings & Job Settings

Meters are classified into four categories, each offering progressively higher capabilities and costs. Higher protection ratings are essential for ensuring safety in more demanding work environments. A meter can be safely used in its rated category or any lower category but not in higher-rated environments. For instance, a CAT III meter may be used in a CAT II environment, but should not be used in a CAT IV environment, even if the voltage to be measured is within its nominal range. Test instruments are rated based on their ability to withstand voltage spikes applied through a specified resistance, with the applied voltage spike increasing with each CAT rating.

  • CAT I - Electronic: Suitable for small electronics work, battery testing, and continuity adjustments in low-current applications.

  • CAT II - Residential: Suitable for single-phase situations up to 120V (or 240V depending on location), including small appliances, sockets, plug-ins, and long branch circuits within residential settings.

  • CAT III - Commercial: Capable of handling three-phase distribution, including single-phase commercial high-amperage lighting. This category includes distribution devices, feeders, industrial plant circuits, and high-current appliance circuitry in service areas.

  • CAT IV - Industrial: The highest rating, suitable for outdoor applications involving utility power, meters, distribution systems, overhead lines, and overcurrent protection modules.

Electricians choose the highest category of protection based on the work environment. Most modern meters are dual-rated, such as CAT III 1000V and CAT IV 600V, providing versatile protection. Additionally, meters must have both the appropriate CAT rating and voltage rating for their intended use.

.
