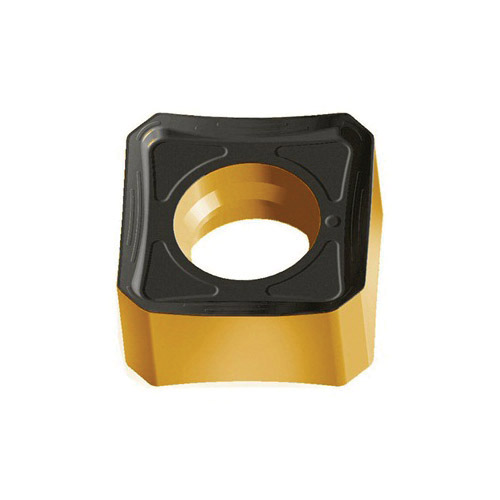

Valenite Tiger-tec® Gold 5040941 Negative Indexable Milling Insert, SNGX1205ANN-F67 WAK15 ANSI, Square, SNGX Insert
SNGX Milling Inserts
PDW~9958015
MFG #: SNGX1205ANN-F67WAK15
Walter (Valentine)
28.70000
/ ea
Tiger-tec® Gold is a new Walter technology platform for unique indexable insert coatings. These are produced using the innovative ultra low pressure method (ULP-CVD). The special titanium aluminium nitride layer makes them highly resistant to abrasion, hairline cracks, oxidation and plastic deformation, as well as ensuring maximum tool life and process reliability.
- Features
| F67 Geometry - The easy cutting one |
| For good machining conditions |
| Low cutting force |
| Medium feed rates |
| +/-0.025 mm cutting edge tolerance |
| +/-0.025 mm inscribed circle tolerance |
| +/-0.13 mm thickness tolerance |
| 1.5 mm width face chamfer |
| 4 cutting edges |
| 45 deg approach |
