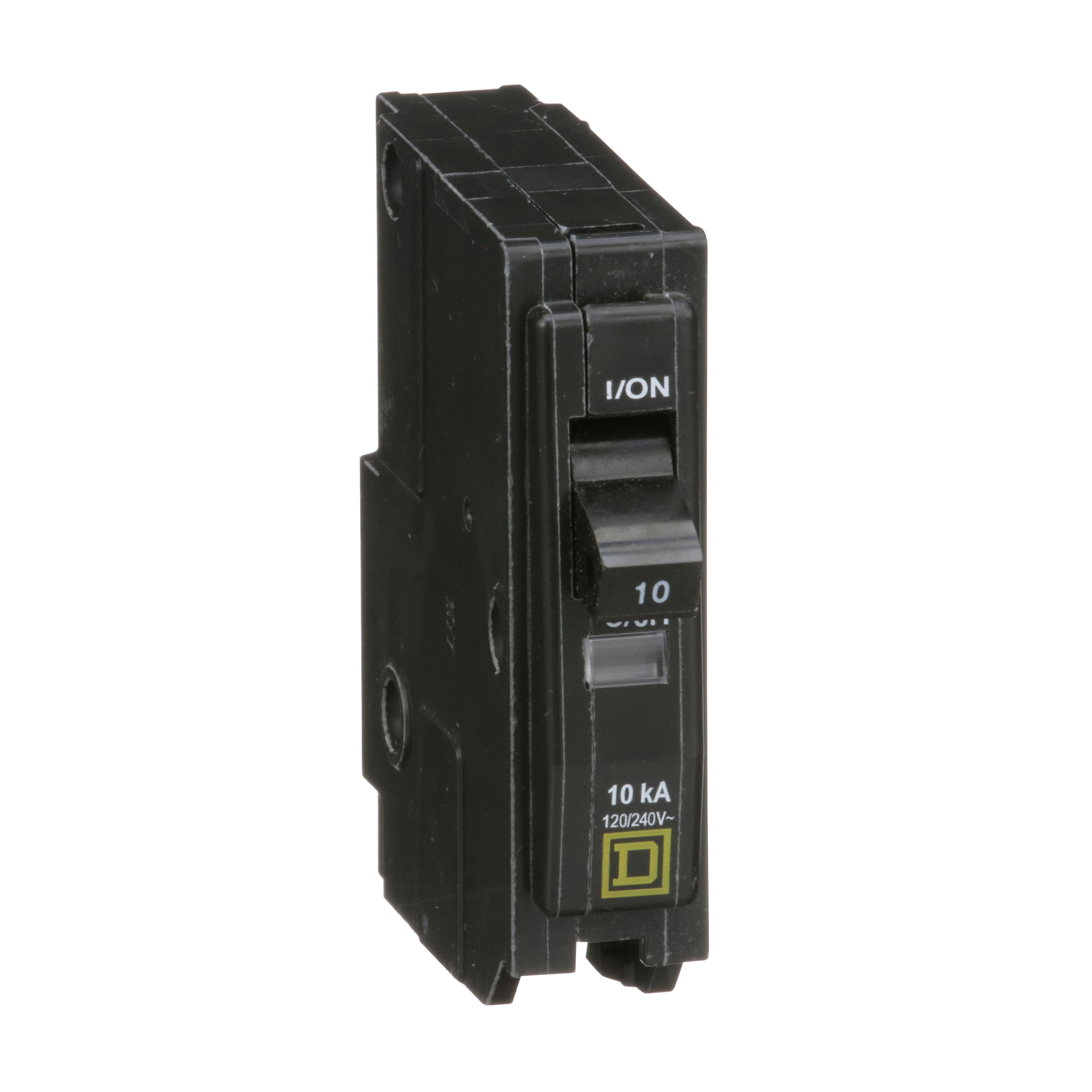

Square D™ QO110 Miniature Circuit Breaker, 120/240 VAC, 10 A, 10 kA Interrupt, 1 Pole, Thermal Magnetic Trip
Circuit Breakers
32431
MFG #: QO110
Square D™
13.69000
/ ea
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8083890360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=QO110(3D Rendering URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Catalog 1 URL - Square_D_QO110_Catalog_1.pdf(Catalog 1 URL)
- Catalog URL - IDW_DOCUMENT_418351a0c169b39c8b07e0e57bb2dda631f61cac8df986423bf48ea1333409c5.pdf(Catalog URL)
- Compliance Cert URL - Square_D_QO110_Compliance_Certificate.pdf(Compliance Cert URL)
- Install Instructions 1 URL - 11003_J3N0V7I21RWPY6ZX.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_YBU9MSFAD4EXGRH0.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_RHP3OJ09N4UWFIZM.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_5AX61MRT70JWDSBU.pdf(Tech Drawing URL)
- Tech Bulletin URL - files?p_enDocType=Data+Bulletin&p_File_Name=0102DB2301.pdf(Tech Bulletin URL)
- Applications
- Features
| NOT RATED |
| STANDARD PLUG-ON |
| QO® and QOB circuit breakers have an overcenter, trip-free toggle mechanism with quick-make, quickbreak action and positive handle indication |
| The tripping mechanisms in 2 and 3-pole circuit breakers operate such that an overcurrent on any pole of the circuit breaker will cause all poles of the circuit breaker to open simultaneously |
| Plug-on QO® circuit breakers are for use in QO® load centers, NQ and NQOD panelboards, OEM mounting bases and Speed-D® switchboard distribution panels |
| QO® and QOB circuit breakers have Visi-Trip® feature, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit |
| 14 to 8 AWG aluminum/copper wire |
