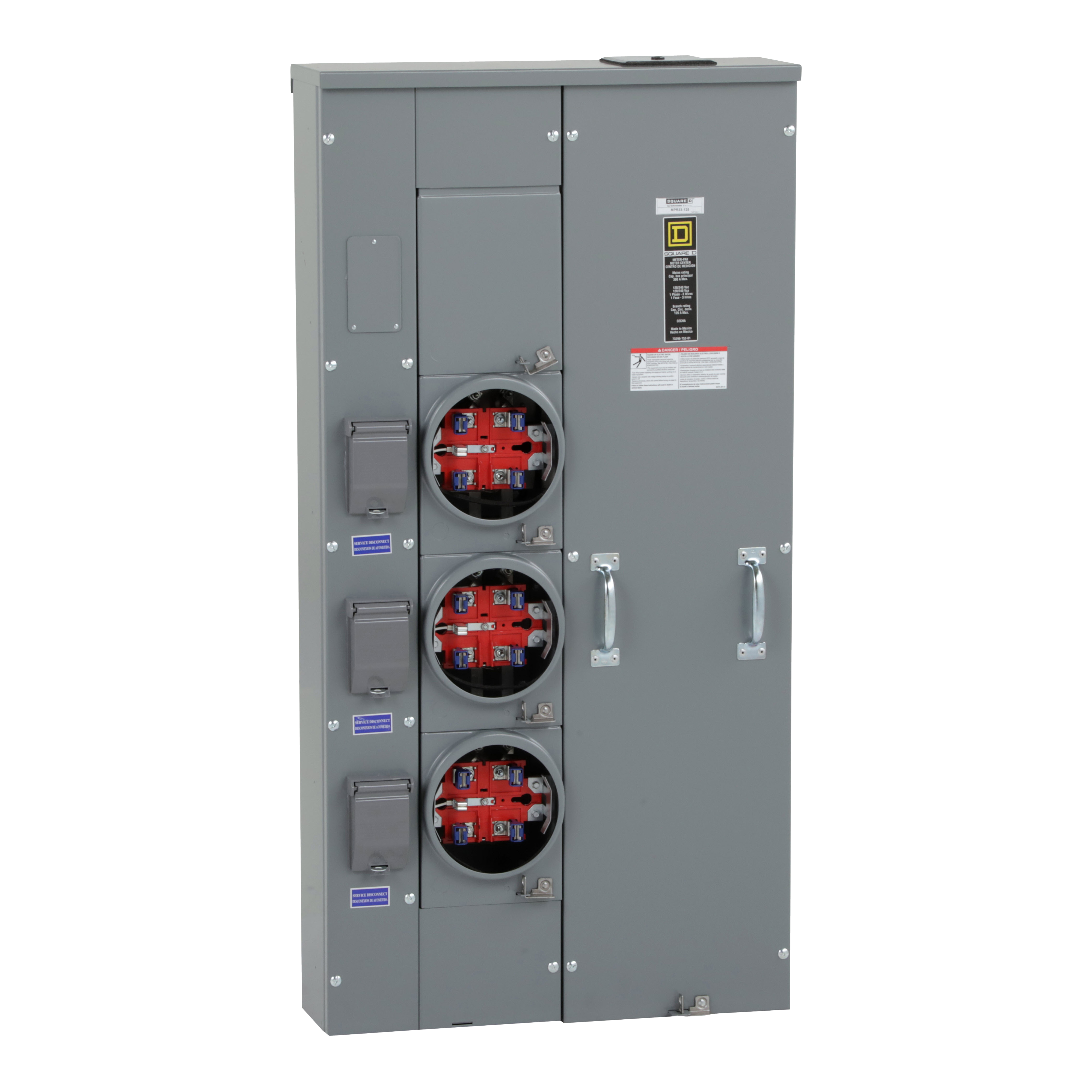

Square D™ Meter-Pak™ MPR33125 MP Series 3-Position 3-Wire Meter Center, 240 VAC, 125 A, 1 Phase, NEMA 3R Enclosure
Meter Sockets - Multi Position
1175014
MFG #: MPR33125
Square D™
790.47000
/ ea
- 360 Degree View URL - index.html?pid=11003&id=8085077360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - 4b0a6e146db4eb0ae4fa05712ffd1e636c40af1d.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_L807O3EKQMDBTYUP.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_LIUSJ7EB43AQ8K1V.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_O37WZKET2Y0VUFDP.dwg(Tech Drawing URL)
- Applications
- Features
| For service equipment applications |
| Main Lugs;Aluminium: busbar |
| Enclosures are indoor/rainproof NEMA 3R construction |
| Swingable mounting feet supplied at bottom of device |
| Surface mount or convertible to semi-flush with field installed flange kit |
| Aluminum busbar and steel enclosure |
| 9 in meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures |
| 300 a main rated and bus rated current |
| Without bypass |
| ACPL closing plate |
