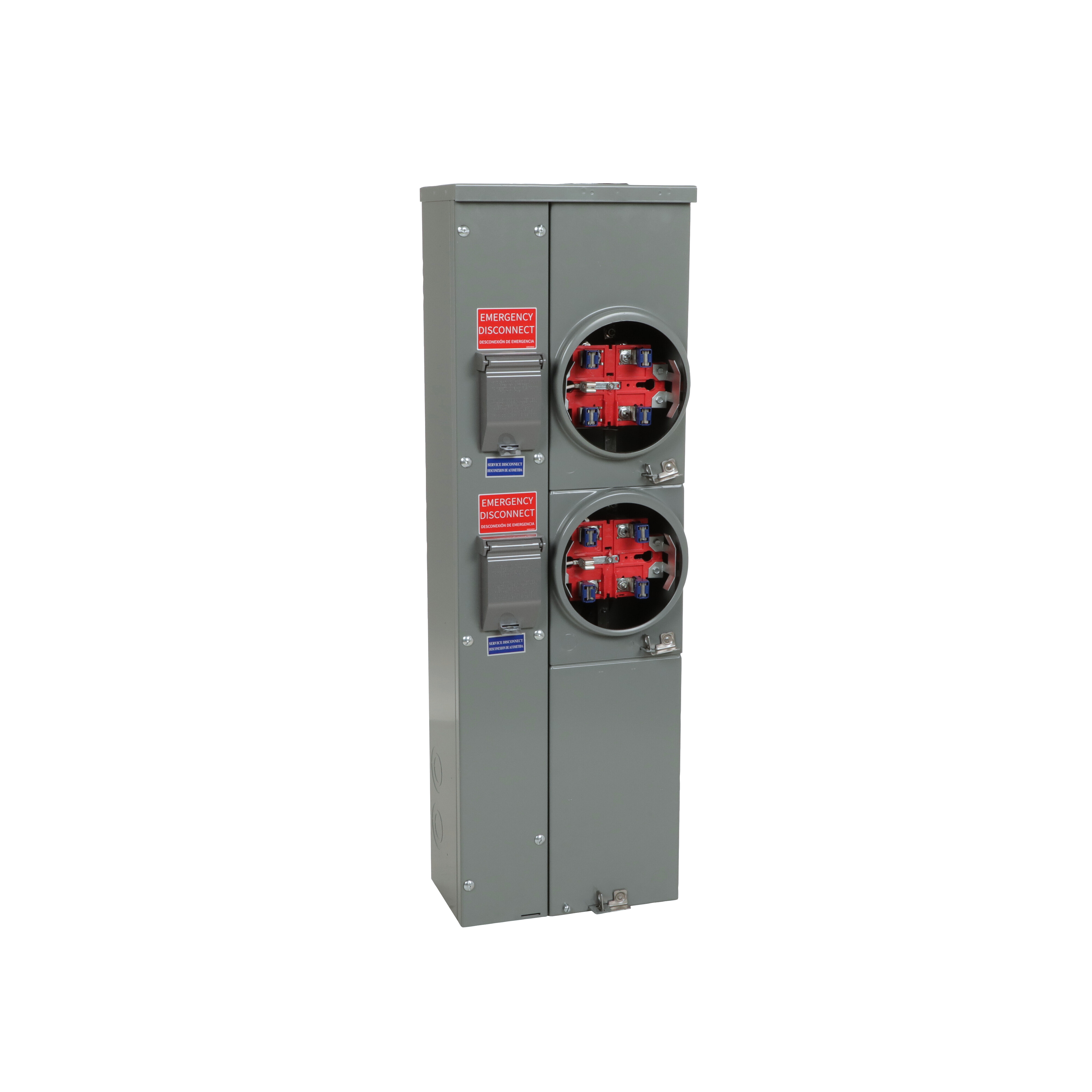

Square D™ Meter-Pak™ MPR22125 MP Series 2-Position 3-Wire Meter Center, 240 VAC, 125 A, 1 Phase, NEMA 3R Enclosure
Meter Sockets - Multi Position
PDW~6410950
MFG #: MPR22125
Square D™
0.00000
/ ea
- 360 Degree View URL - index.html?pid=11003&id=8085068360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - f9f410ff1c0533b8e501d66991e8d6ac3c3f123d.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_L807O3EKQMDBTYUP.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_G6RXDS4FZEQOYUAB.pdf(Spec Sheet URL)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=2248.dwg(Tech Drawing URL)
- Applications
- Features
| For service equipment applications |
| Main Lugs;Aluminium: busbar |
| Enclosures are indoor/rainproof NEMA 3R construction |
| Swingable mounting feet supplied at bottom of device |
| Surface mount or convertible to semi-flush with field installed flange kit |
| Aluminum busbar and steel enclosure |
| 9 in meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures |
| 200 a main rated and bus rated current |
| Without bypass |
| ACP closing plate |
