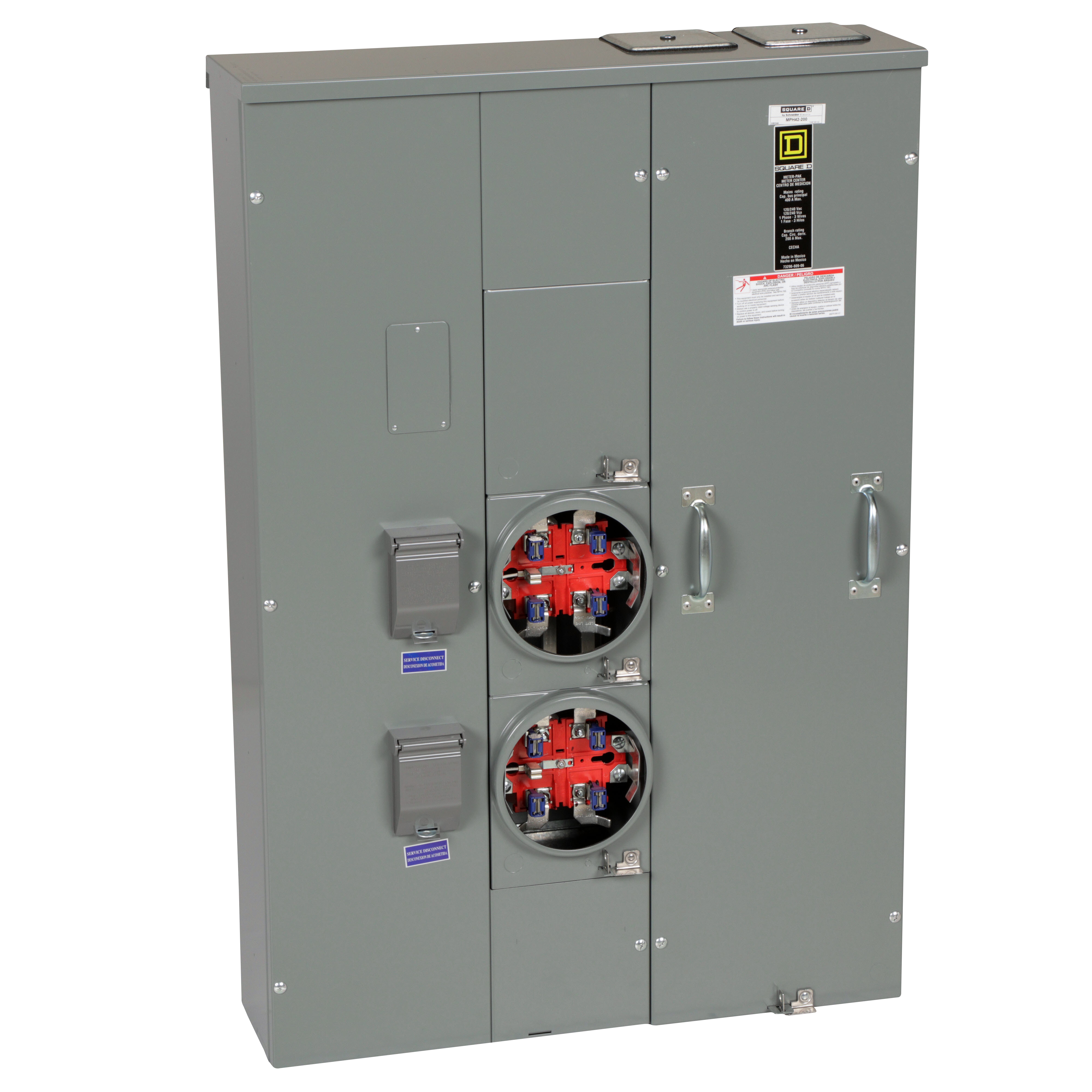

Square D™ Meter-Pak™ MPH42200 2-Position 3-Wire Main Lug Meter Center With Horn Bypass, 240 VAC, 200 A, 1 ph Phase, NEMA 3R Enclosure
Meter Sockets - Multi Position
1147536
MFG #: MPH42200
Square D™
898.17000
/ ea
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8034162360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - 7255033e6215449568d69e60e29b8157600a0ba2.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_L807O3EKQMDBTYUP.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_9RNWOGA5KFSMHJ6T.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_PTYBCGK3VNEF0L7H.dxf(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=2527.dxf(Tech Drawing URL)
- Applications
- Features
| For service equipment |
| Main Lugs;Aluminium: busbar |
| Enclosures are indoor/rainproof NEMA 3R construction |
| Swingable mounting feet supplied at bottom of device |
| Surface mount or convertible to semi-flush with field installed flange kit |
| Aluminum busbar and steel enclosure |
| 9 in meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures |
| 400 A main rated and bus rated current |
| (2) ACPL closing plate |
