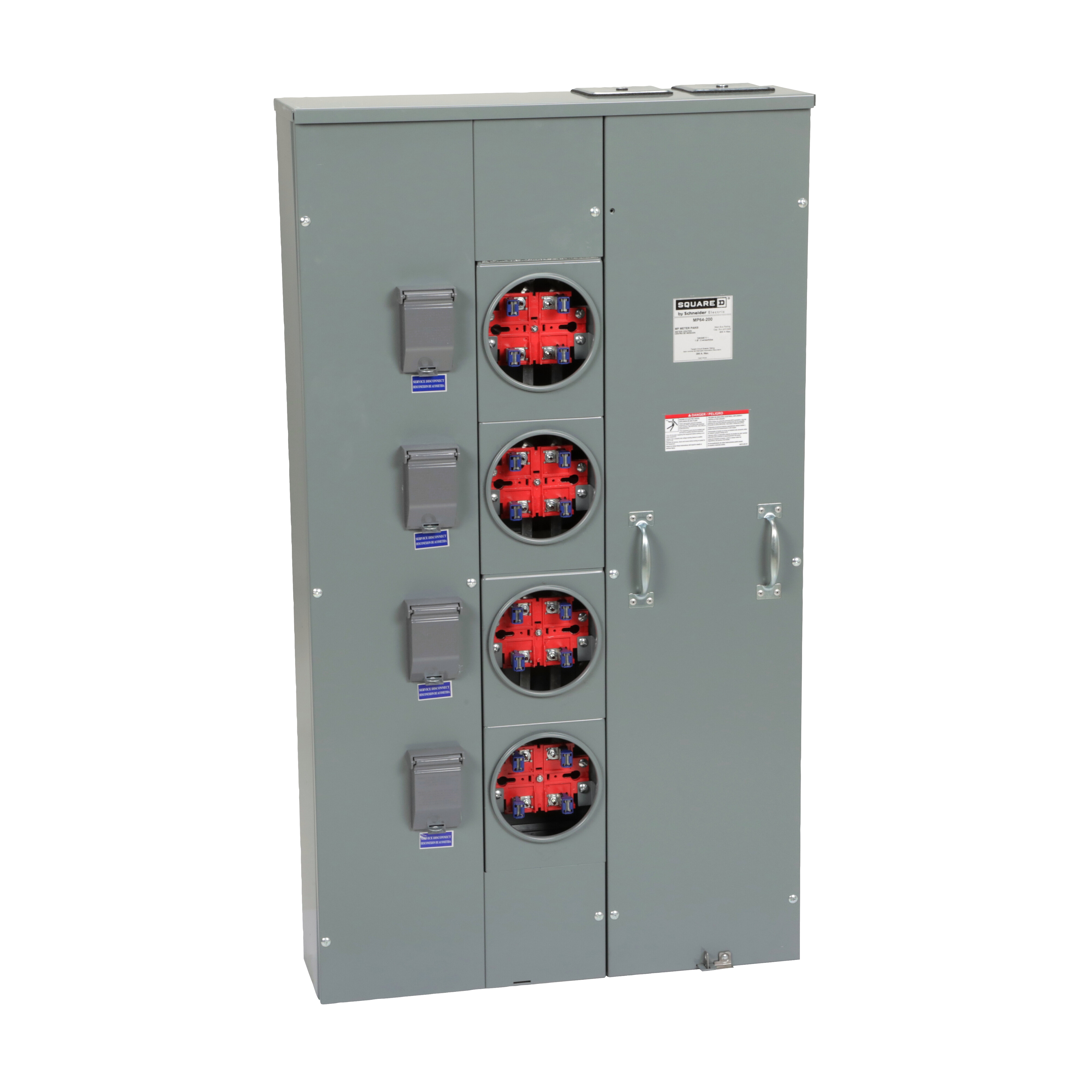

Square D™ Meter-Pak™ MP64200 MP Series 4-Position 3-Wire Meter Center, 240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
Meter Sockets - Multi Position
1159993
MFG #: MP64200
Square D™
1744.77000
/ ea
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8034098360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_O20ILD847ERGQUMN.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - a7538c539382aa49cbd6ff608406dd8a0bbd4bf7.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_L807O3EKQMDBTYUP.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_C61YHMEVLI0XU59S.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_G62IV9JBZ1ACO0XY.dxf(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=2528.dwg(Tech Drawing URL)
- Applications
- Features
| For service equipment applications |
| MAIN LUGS,ALUMINIUM BUSBAR |
| Enclosures are indoor/rainproof NEMA 3R construction |
| Swingable mounting feet supplied at bottom of device |
| Surface mount or convertible to semi-flush with field installed flange kit |
| Aluminum busbar and steel enclosure |
| 9 in meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures |
| 400 a main rated and 600 a bus rated current |
| Without bypass |
| (2) ACPL closing plate |
