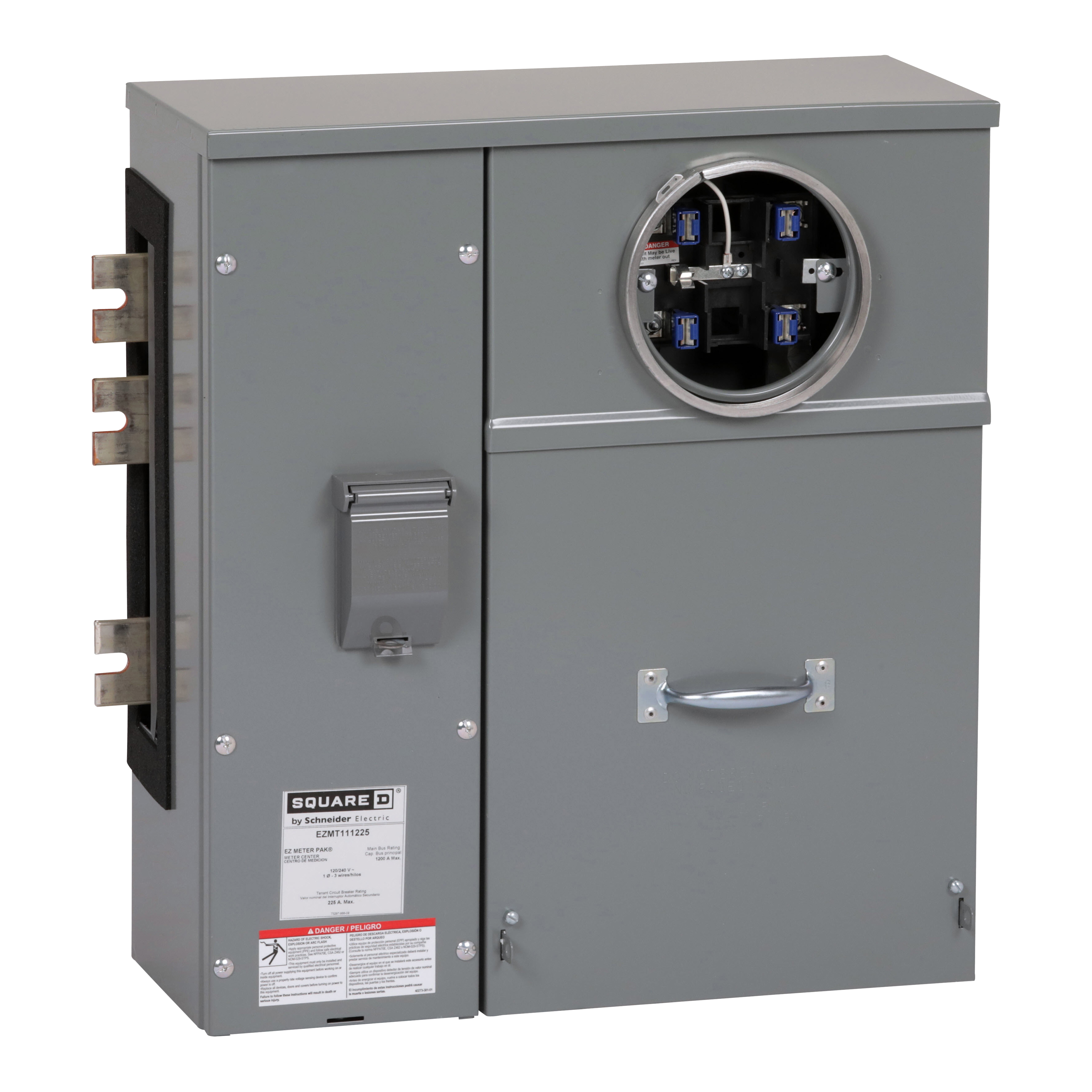

Square D™ Meter-Pak™ EZMT111225 1-Position 3-Wire Meter Center Branch Unit With Test Block Bypass, 2-Pole Branch Circuit Breaker, 120/240 VAC, 225 A, 1 Phase, NEMA 3R Enclosure
Meter Sockets - Single Position
PDW~6399940
MFG #: EZMT111225
Square D™
0.00000
/ ea
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8127733360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3272.dwg(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_G5MH3ON4IA1TSLQD.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_3WGC69M1X5YB7JKV.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_Q039YMVA5ILCPTER.zip(Tech Drawing URL)
- Features
| Aluminium/copper: busbar |
| Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit |
| To suit individual applications, residential and commercial devices may be interconnected |
| Basic devices for connection to 3 phase 4-wire 120/208 VAC service are factory phase balanced to save installation time |
| The phase balancing may be modified in the field to meet most system variations |
| Aluminum horizontal cross busbar |
| 4 AWG to 300 kcmil copper/aluminum neutral/service ground, 12 to 2/0 AWG aluminum, 14 to 2/0 AWG copper grounding wire |
| Ring type test-block bypass EUSERC |
