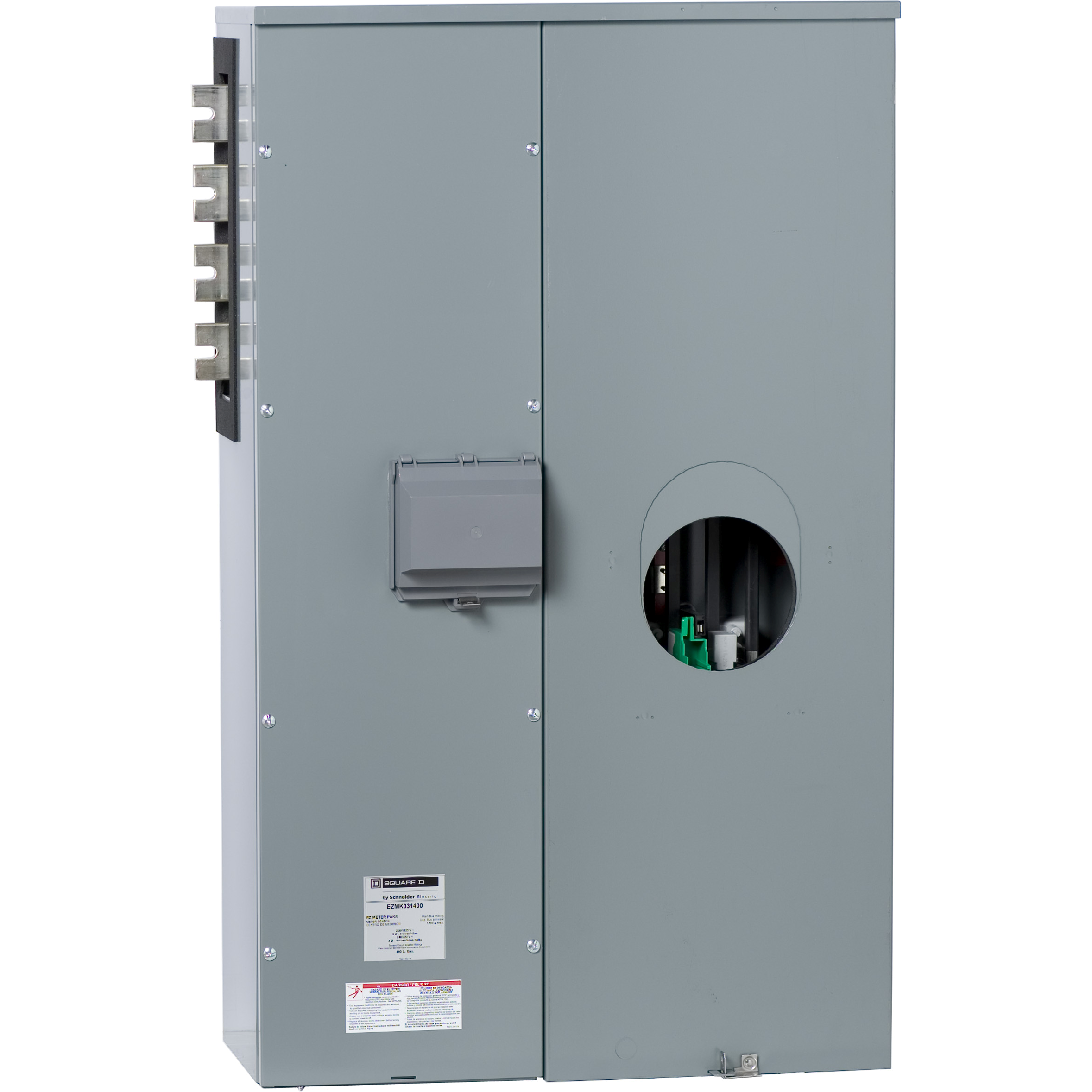

Square D™ Meter-Pak™ EZMK331400 4-Wire K-Base Meter Center Branch Unit With Manual Bypass, 208Y/120 VAC, 240/120 Delta VAC, 400 A, 3 Phase, NEMA 3R Enclosure
Meter Sockets - Single Position
PDW~6399798
MFG #: EZMK331400
Square D™
0.00000
/ ea
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=4100BR9801.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3281.dwg(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_1J9IKTY3M8EBUVDC.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_MWS632X9YZCLNVK5.zip(Tech Drawing URL)
- Tech Drawing URL - 11003_RINW5QS6JZ2GXD80.zip(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=3281.dwg(Tech Drawing URL)
- Features
| Copper busbar |
| Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit |
| To suit individual applications, residential and commercial devices may be interconnected |
| Basic devices for connection to 3 phase 4-wire 120/208 VAC service are factory phase balanced to save installation time |
| The phase balancing may be modified in the field to meet most system variations |
| Aluminum horizontal cross busbar |
| 1/0 AWG to 250 kcmil cable 1, 1/0 AWG to 600 kcmil cable 2 neutral/service ground, 6 to 2/0 AWG cable 2 equipment grounding |
