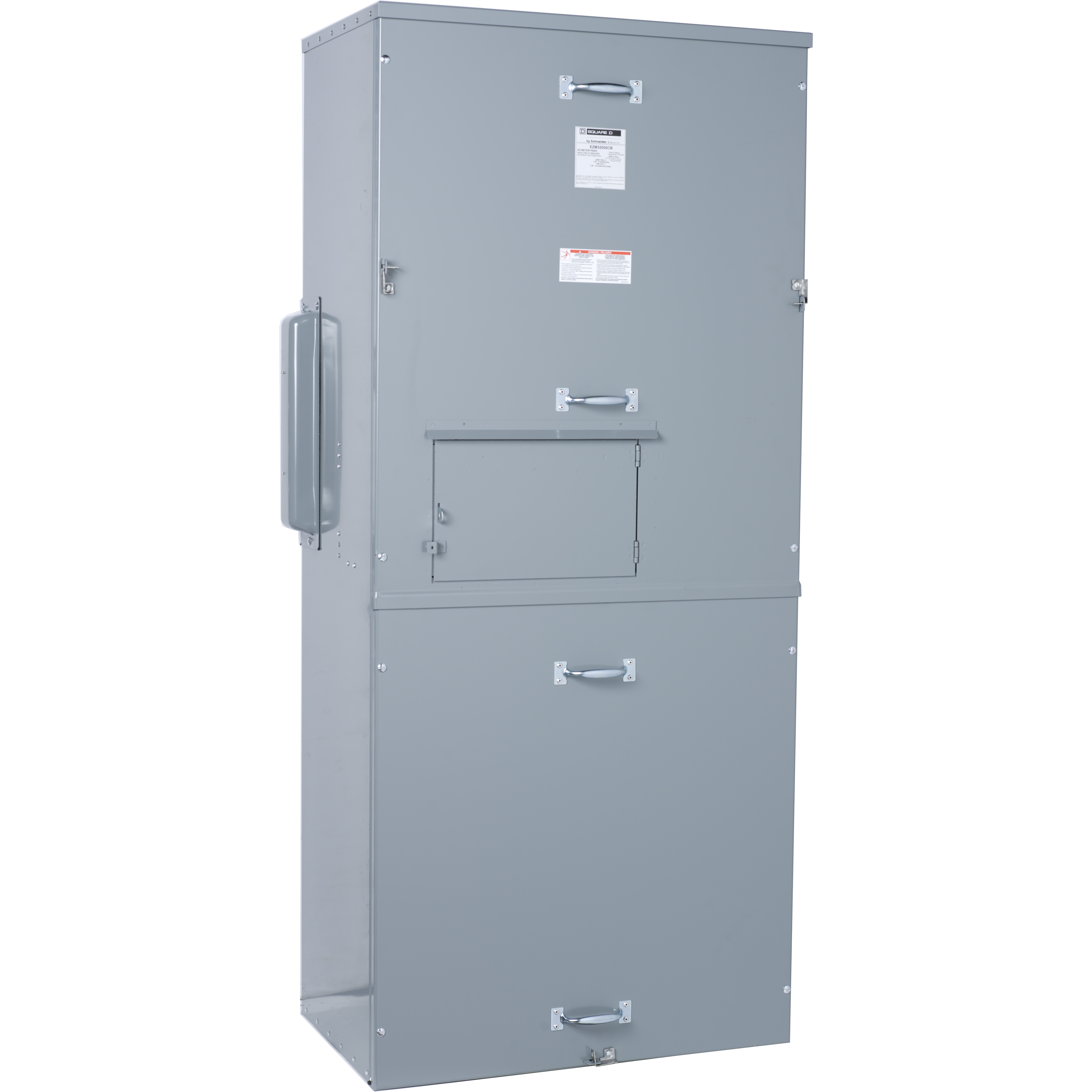

Square D™ Meter-Pak™ EZM32000CB 4-Wire Meter Center Main Unit With Main Circuit Breaker, 208Y/120 VAC, 240/120 Delta VAC, 2000 A, 3 Phase, NEMA 3R Enclosure
Meter Sockets - Single Position
391631
MFG #: EZM32000CB
Square D™
57518.00000
/ ea
Square D™ Meter-Pak™ Meter Center Main Unit, 4-Wire, Series: EZM, 208Y/120 VAC, 240/120 Delta VAC, 2000 A, 3 ph, Overhead/Underground Feed, 6 AWG to 300 kcmil, 1/0 AWG to 700 kcmil Al/Cu Wire, Closing Plate Hub, Lug Terminal, Surface Mounting, NEMA 3R Enclosure, 68.7 in H x 30.19 in W x 18.33 in D Dimensions
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=3357.dxf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_JH9WCIO4UXA1S70Q.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_XBTQFZW71JRY8GML.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_UFLZKHOY324PXGN8.zip(Tech Drawing URL)
- Features
| Main Circuit Breaker;Aluminium/copper: busbar |
| Top and bottom wiring gutters with knockouts allow branch circuits to exit from either the top, bottom or back of the unit |
| To suit individual applications, residential and commercial devices may be interconnected |
| Basic devices for connection to 3 phase 4-wire 120/208 VAC service are factory phase balanced to save installation time |
| The phase balancing may be modified in the field to meet most system variations |
| Aluminum horizontal cross busbar upto 1000 A maximum |
| 6 AWG to 300 kcmil ground cable 1, 1/0 AWG to 700 kcmil line/neutral cable (6) lugs |
