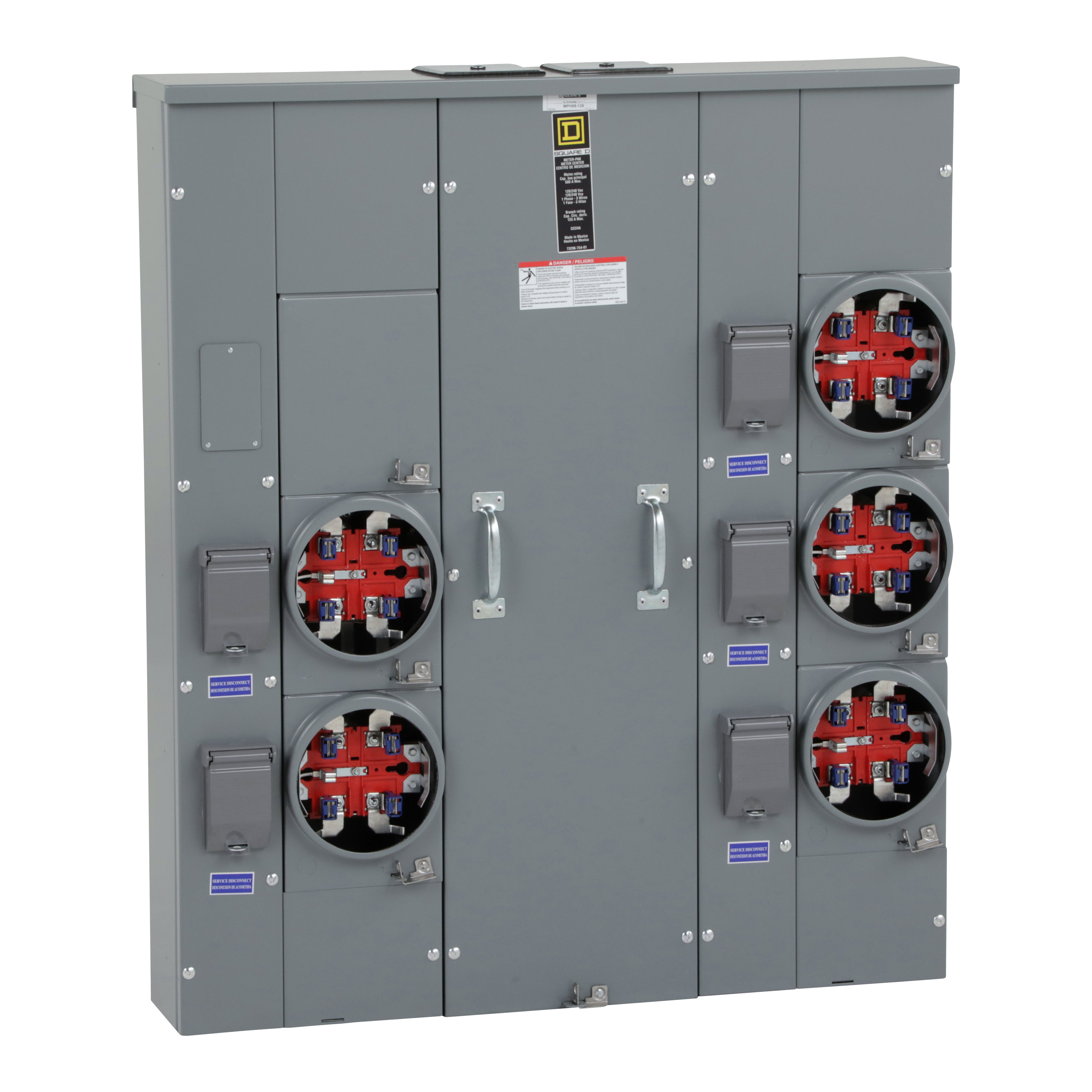

Square D™ MPH55125 MTR MP DEVICE RINGLESS
Meter Sockets - Multi Position
272743
MFG #: MPH55125
Square D™
1444.67000
/ ea
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8085124360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_DSZIL7J2N8OX5KY9.pdf(Brochure URL)
- Brochure URL - 11003_SZO3TUPKYWH86VIJ.pdf(Brochure URL)
- Catalog URL - Square_D_MPH33125_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - 33ab9a14717b11dad88bedc7430215a7453c312f.pdf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_L807O3EKQMDBTYUP.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_9JW4M835LPGVN07R.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_7KNR4ZQP8VXA5M2G.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_JCKY7BR8DHGTQ1VS.dwg(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical Drawing&p_File_Name=2250.dwg(Tech Drawing URL)
- Video - https://youtube.com/embed/6kd7_oF37r8(Video)
- Features
| MAIN LUGS,ALUMINIUM BUSBAR |
| Enclosures are indoor/rainproof NEMA 3R construction |
| Swingable mounting feet supplied at bottom of device |
| Surface mount or convertible to semi-flush with field installed flange kit |
| Aluminum busbar and steel enclosure |
| 9 in meter center spacing allows for more sockets per device creating lighter, more compact branch enclosures |
| 125 A maximum tenant circuit breaker amperage, 500 A bus ampacity |
| Meter socket jaws, constructed of tin plated copper are spring reinforced on MP devices |
| Stainless steel cover hasps and latches meet tough coastal utility sealing requirements |
| Barrel lock provisions on all ringless devices |
| (2) ACPL closing plate |
