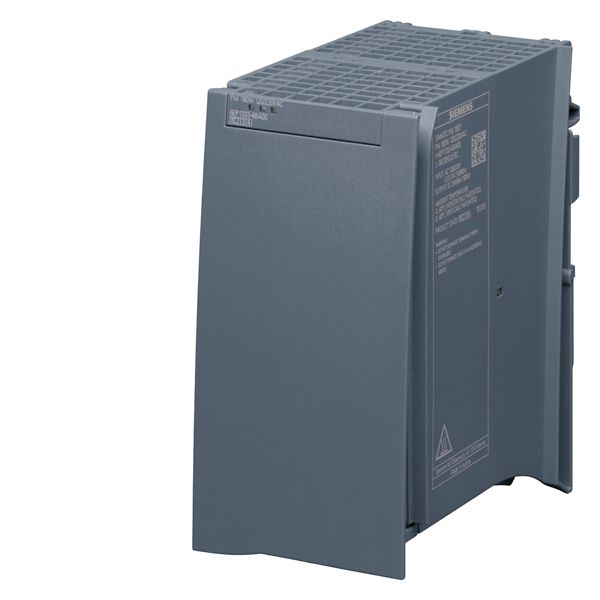

Siemens 6EP13334BA00 SIMATIC Power Supply, 120/230 VAC Input, 24 VDC Output, 192 W, 3.7/1.7 A, DIN Rail Mount
DC Power Supplies
760798
MFG #: 6EP13334BA00
Siemens
345.00000
/ ea
- 3D Rendering URL - G_KT01_XX_00756V.pdf(3D Rendering URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Spec Sheet URL - 10991_D7H8J5NMIZGBKUY9.pdf(Spec Sheet URL)
- Spec Sheet URL - 10991_DXA3GNHCWV69OZL2.pdf(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=6EP13334BA00&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=6EP1333-4BA00&language=en(Spec Sheet URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=PDPS&mlfbs=6EP1333-4BA00&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Features
| The SIMATIC PM1507 single-phase load power supply (PM = power module) with automatic input voltage range selection is optimally adapted to the SIMATIC S7-1500 controller in its design and functionality. It supplies 24 VDC to the S7-1500 system components |
| The load current supplies are directly fastened to the S7-1500 mounting rail and can be mounted directly to the left of the cpu |
| Diagnostics LED to indicate status and faults operation, Fault, stand-by |
| On/off switches for possible swapping of modules |
| Mains connection plug with touch protection and strain relief for connection of input voltage |
| Plug-in 24 VDC output terminal with reverse polarity protection for connection of 24 V loads |
| Connection to all 1-phase 50/60 Hz networks (120 / 230 V AC) through automatic range switching |
| Short term mains buffering |
| Output voltage of 24 VDC that is limited to maximum 28 VDC |
| 3.7 A at 120 VAC, 1.7 A at 230 VAC input, 8 A output |
