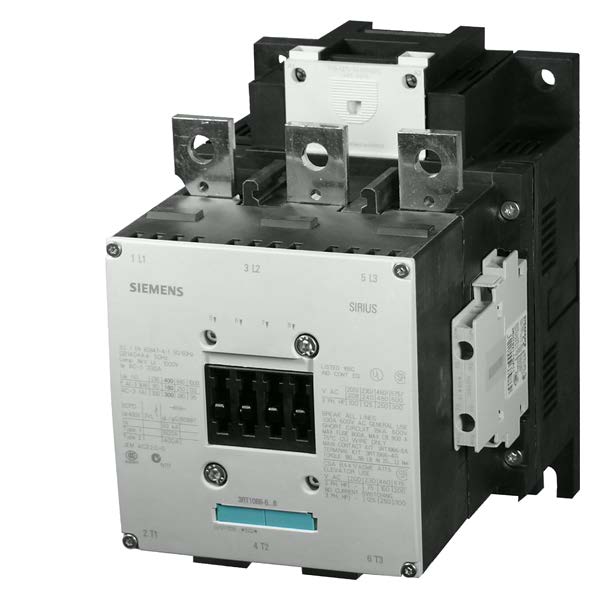

Siemens 3RT1066-6AF36 Standard IEC Contactor 3RT1066-6AF36, 110 VAC/127 VDC Coil, 300 A Max Load, 3NO, 3 Poles
Contactors
82792
MFG #: 3RT1066-6AF36
Siemens
1655.77000
/ ea
- 3D Rendering URL - G_IC03_XX_04363V.pdf(3D Rendering URL)
- Brochure URL - SIRIUS_SWITCH_E20001-A460-P302-X-7600_PWBR-20000-1103.pdf(Brochure URL)
- Catalog URL - SIRIUS_3RA1317_8XB30_1AK6_Catalog.pdf(Catalog URL)
- Computer~Aided [CAD|BIM] Model URL - 3RT106__00000133_001_ALL.dxf(Computer~Aided [CAD|BIM] Model URL)
- http://www.sea.siemens.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet 1 URL - Siemens_3RT1066_6AF36_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - DatasheetService?format=PDF&caller=EGH&mlfbs=3RT1066-6AF36&language=en(Spec Sheet URL)
- User Manual URL - man(User Manual URL)
- Video - http://www.automation.siemens.com/bilddb/download.aspx?reqInsID=873289(Video)
- Features
| Number Of Poles: 3; Design of the fuse link: Fuse gL/gG: 10 AMP Auxiliary, Fuse gL/gG: 500 AMP Main; Enclosure: S10 |
| 590 VA at 50 Hz (pick-up), 6.7 VA at 50 Hz (holding) magnet coil at AC, 650 W (closing), 7.4 W (holding) magnet coil at DC |
| 0.9 (closing/holding) power factor |
