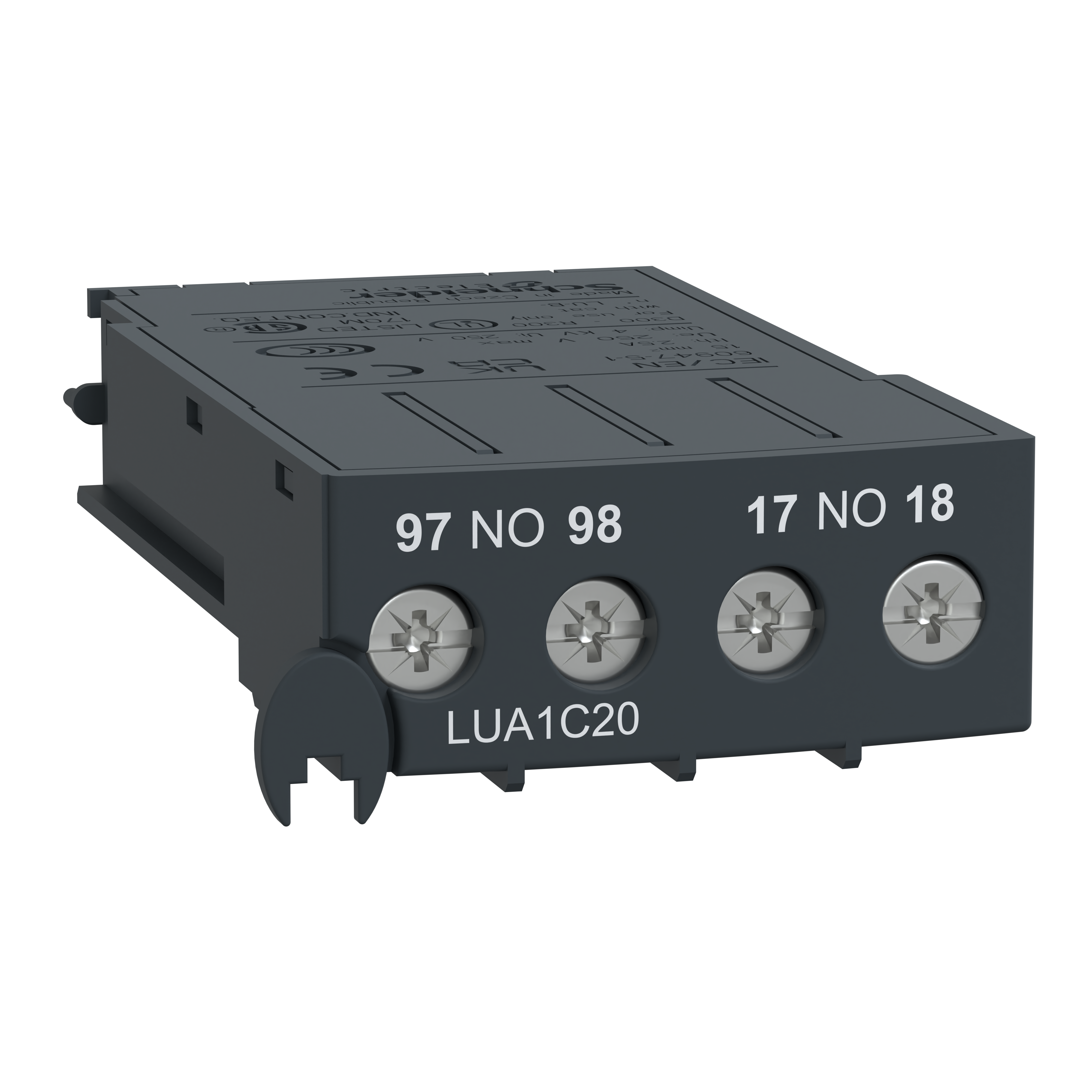

Schneider Electric TeSys™ LUA1C20 Auxiliary Contact, 250 VAC/VDC, 0.208 A, 2 Contacts
Starters
97200
MFG #: LUA1C20
Schneider Electric
34.50000
/ ea
Schneider Electric LUA1C20 AUX. CONTACT BLOCK 2NO W/TERMS,2 NO,250 V conforming to CSA-250 V conforming to UL-250 V conforming to IEC 60947-5-1,<= 250 V DC-<= 250 V AC,5 A,LUA1,auxiliary contact,Screw Clamp,TeSys,TeSys U,provides additional contacts
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8092774360Den&ext=webp(360 Degree View URL)
- 3D Rendering URL - SEproductListV2.html?p=LUA1C20(3D Rendering URL)
- Brochure URL - 1dd055d407a404cf0573a71104eb1e47aed1cd07.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADPD0004714_2D-bottom.dxf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_5I2W3TPE0MY97HLQ.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet 1 URL - Square_D_LUA1C20_Data_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 11003_3AXWFLBJNDV9S4E7.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_DWK1P7M3RN4BVGC5.dxf(Tech Drawing URL)
- Tech Drawing URL - 11003_WFLQSHCZ9O64DY2G.dxf(Tech Drawing URL)
- User Manual URL - 11003_BGX3V4Z7QP9A0NTI.pdf(User Manual URL)
- User Manual URL - 11003_JR9ZYIHDM80G7BPL.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/ZspiS_-OK5U(Video)
- Applications
- Features
| PROVIDES ADDITIONAL CONTACTS |
| FAULT SIGNALLING-INDICATING ROTARY KNOB IN READY POSITION |
| 2NO auxiliary contact composition |
| 17 V switching voltage |
| 5 mA minimum switching current |
| Screw clamp terminal connection |
| 250 V voltage rating conforming to CSA, IEC 60947-5-1-250 and 250 VAC/VDC conforming to UL |
