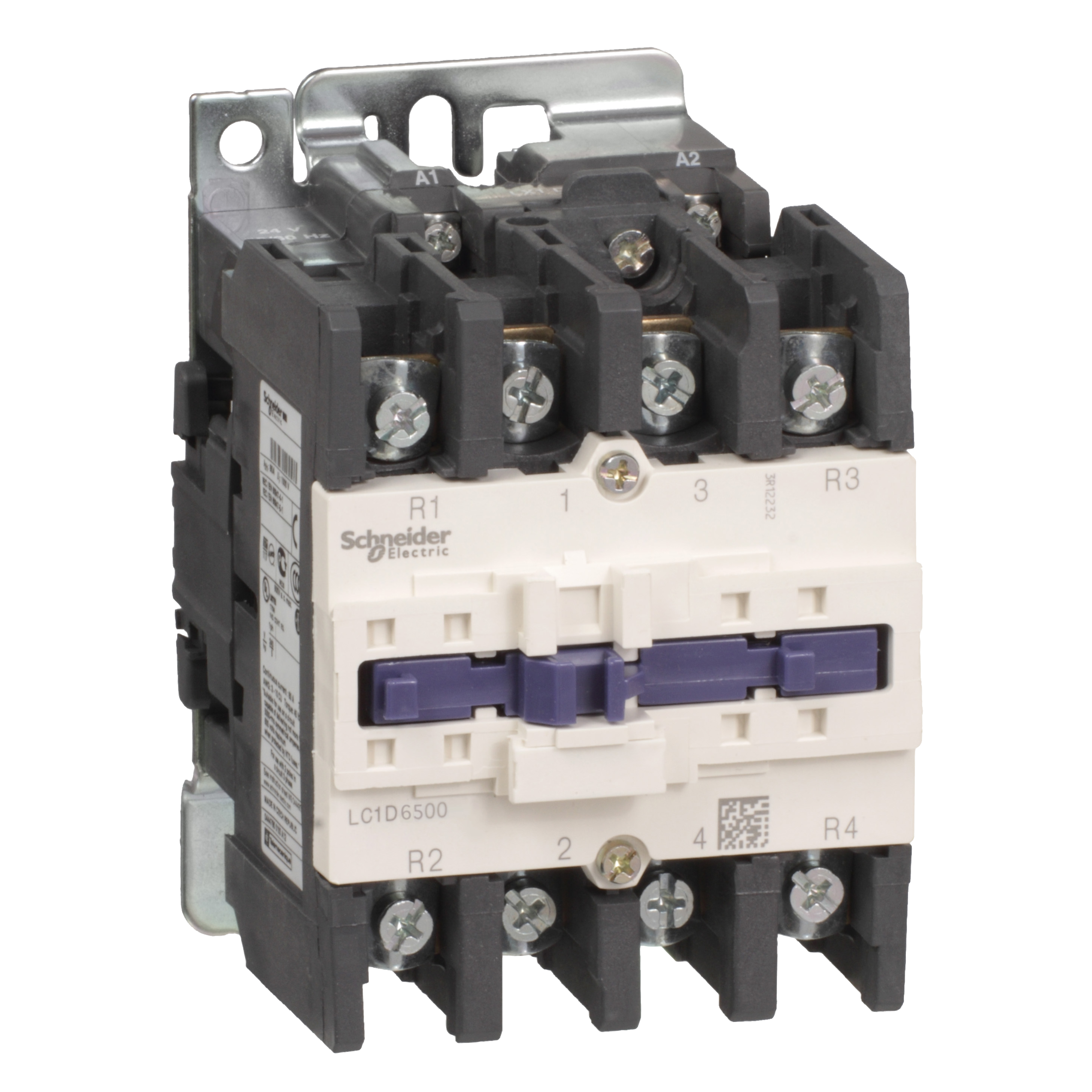

Schneider Electric TeSys™ D LC1D IEC Contactor LC1D65008F7, 110 VAC Coil, 80 A Max Load, 2NO/2NC, 4 Poles
Contactors
397669
MFG #: LC1D65008F7
Schneider Electric
900.45000
/ ea
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=8042913360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Brochure URL - files?p_enDocType=Brochure&p_File_Name=998-20803955_GMA-US.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_WEJC1ZNTS3GF5P0H.pdf(Service Manual URL)
- Spec Sheet 1 URL - Schneider_Electric_LC1D65008F7_Datasheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL(Spec Sheet URL)
- Spec Sheet URL - 11003_E5DCOHJ2RGLBV6S7.pdf(Spec Sheet URL)
- Tech Bulletin URL(Tech Bulletin URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Video - https://www.youtube.com/embed/e8UrRZljFg0(Video)
- Tech Drawing URL - SB105142(Tech Drawing URL)
- Applications
- Features
| Resistive load |
| WITHOUT BUILT-IN SUPPRESSOR MODULE |
| Conforming to IEC 60947 rated impulse withstand voltage |
| III overvoltage category |
| 80 A at 140 deg F power circuit conventional-free air thermal current |
| 1000 A at 440 VAC power circuit conforming to IEC 60947 IRMs rated making capacity and rated breaking capacity |
| 125 A gG at 690 V coordination type 1 power circuit, 125 A gG at 690 V coordination type 2-power circuit associated fuse rating |
| 1.5 mOhm at 50 Hz - Ith 80 A power circuit average impedance |
| 600 VAC power circuit certifications CSA/600 VAC power circuit certifications UL/690 VAC power circuit conforming to IEC 60947-4-1 rated insulation voltage |
| 12 to 26 ms closing/4 to 19 ms opening operating time |
| 3600 cycles/hr at <=140 deg F (60 deg C) operating rate |
| Without built-in suppressor module coil technology |
| 140 VA at 68 deg F 60 Hz, 160 VA at 68 deg F 50 Hz inrush power |
| 13 VA at 68 deg F 60 Hz, 15 VA at 68 deg F 50 Hz hold-in power consumption |
| 4 to 5 W heat dissipation |
| TH protective treatment |
| 3 pollution degree |
| -40 to 158 deg F permissible ambient air temperature around the device, -76 to 176 deg F storage temperature |
| 9842.52 ft without derating in temperature operating altitude |
| 1562 deg F (850 deg C) conforming to IEC 60695-2-1 fire resistance |
| V1 conforming to UL 94 flame retardance |
| 9.6 W (AC-1) power dissipation per pole |
