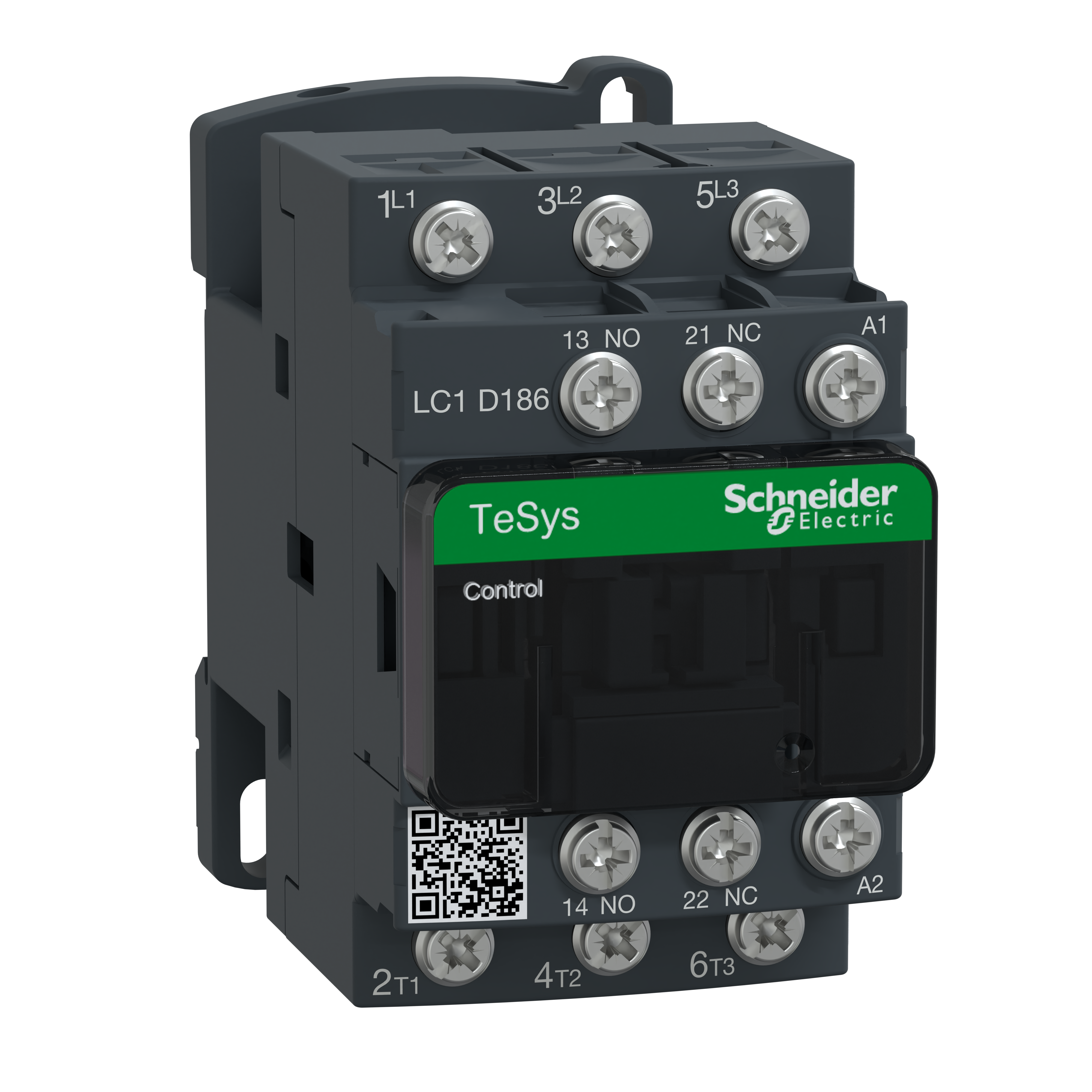

Schneider Electric LC1D186F7 CONTACTOR 600VAC 18AM
NEMA & IEC Contactors
970264
MFG #: LC1D186F7
Schneider Electric
193.40000
/ ea
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=10660590360Den&ext=webp(360 Degree View URL)
- Brochure URL - 11003_9PT1LU7VOI5CXNW3.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=MCADPP0003702_2D-left.dxf(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_4CT8A7OV2ZUEYDQP.pdf(Install Instructions 1 URL)
- ROHS Compliance URL - Schneider_Electric_LC1D186F7_RoHS.pdf(ROHS Compliance URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_580BRMYI619ZSGLN.pdf(Service Manual URL)
- Service Manual URL - 11003_YQ40O6UGP7C8EZ91.pdf(Service Manual URL)
- Spec Sheet URL - 11003_SJOPNM4YU98IW7K1.pdf(Spec Sheet URL)
- Tech Bulletin URL - 11003_8G547S3DJIOHPNLZ.pdf(Tech Bulletin URL)
- Tech Bulletin URL - 11003_R8DPHVO6FAXJE9S2.pdf(Tech Bulletin URL)
- Tech Drawing URL - 11003_I3ZAVG07JSY6EDX8.zip(Tech Drawing URL)
- Tech Drawing URL - files?p_enDocType=Technical+Drawing&p_File_Name=LC1D186F7_2D+Sales+Drawing.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/kW01lFljKgE(Video)
- Applications
- Features
| Motor control;resistive load |
| Without built-in suppressor module |
| High making and breaking capacity |
| 1NO and 1NC integrated auxiliary contact |
| Up to 30 million mechanical operation cycles |
| Electrical cycles up to 3600 cycles per hour at ambient temperature |
| No derating up to 3000 m altitude |
| Safe and long lasting power connection with EverLink and spring terminals |
| Suitable for safety applications thanks to mechanically linked contacts and mirror contacts |
| Identification of safety chain with red cover and auxiliary contact |
| Recognized high performance and quality solutions |
| Outstanding breaking/making capacity up to 20 in |
| PLC direct connection |
| Certified type 1 and 2 coordination tables |
| TeSys™ D contactors have been designed for perfect integration in control systems, specific references BL or BBE compatible with digital PLC I/O 100 mA or 500 mA |
| These contactors can be used to create motor starters for any type of application |
