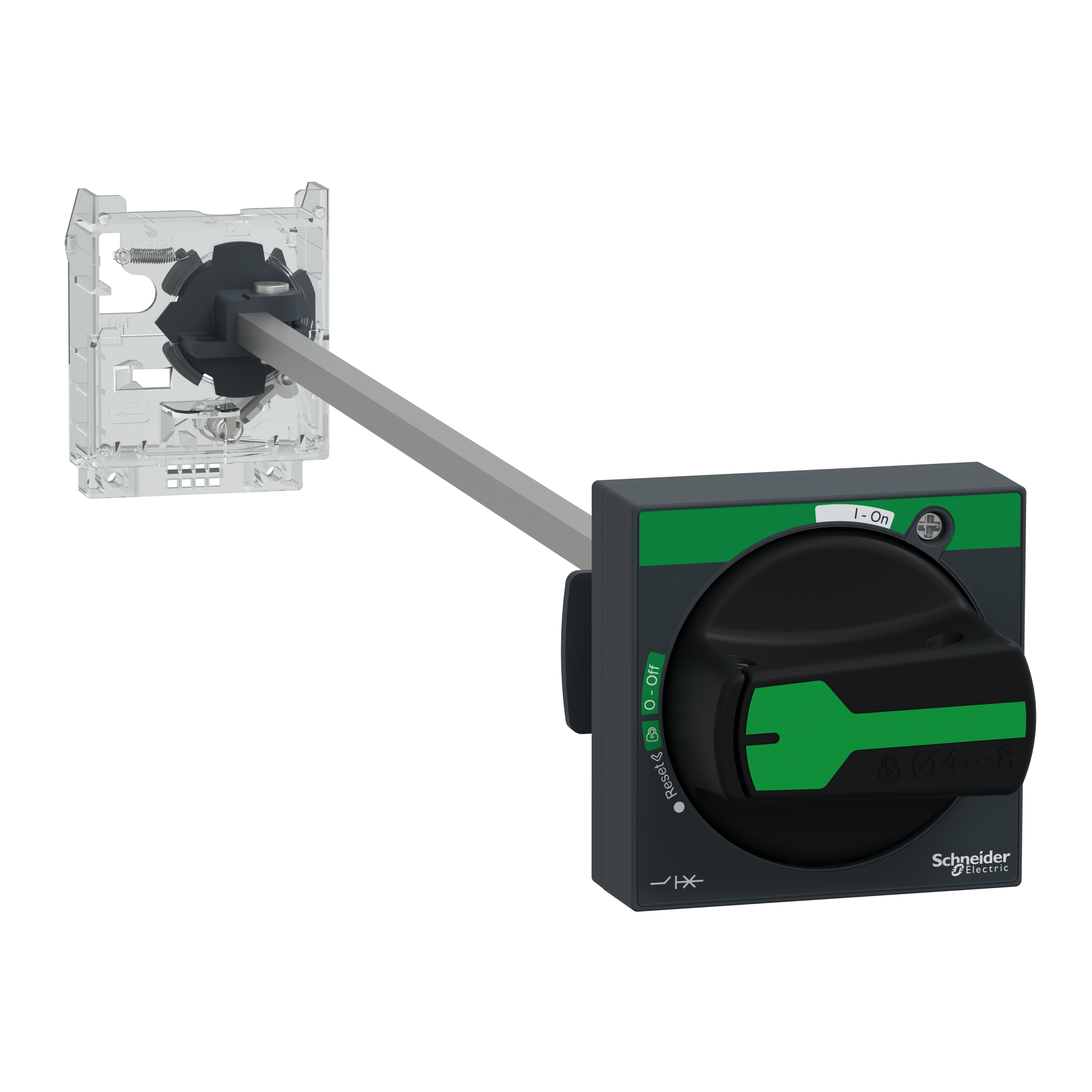

Schneider Electric GV2APK01 GV2AP Rotary handle kit, for use with GV2L/GV2P, Black
Starter Renewal Parts
PDW~12045573
MFG #: GV2APK01
Square D™
0.00000
/ ea
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=15636281360Den&ext=webp(360 Degree View URL)
- Brochure URL - b271386a410f0e59146c773fcdaf71c5c7b1c4ee.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=GV2APK01_3D-simplified.stp(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_XTSWLKA4HCDB0NY3.zip(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - files?p_enDocType=Circularity+Profile&p_File_Name=ENVEOLI2207006_V2.pdf(Service Manual URL)
- Spec Sheet URL - 11003_1MWE8VR9OTD6SAQ7.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_7KYS0JO6D3LZN9FI.dwg(Tech Drawing URL)
- Tech Drawing URL - 11003_X6GUYR278ZDQVK4J.dwg(Tech Drawing URL)
- Applications
- Features
| For GV2L-GV2P Schneider Electric SQD GV2APK01 Extended rotary handle Extended rotary handle kit, TeSys, For GV2L-GV2P |
| The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit |
| The basic motor starter GV2ME controls motors with full load currents up to 32A |
| The GV2P, high performance manual starter, offers a higher withstand rating and visible trip indication for convenience |
| The GV2P has an additional UL 508 type E rating as a stand alone self-protected manual combination starter |
| Single phase sensitivity |
| Magnetic instantaneous short-circuit protection |
| Test trip mechanism |
| The addition of an undervoltage trip enables the motor circuit-breaker to be tripped if voltage is lost |
| The addition of a shunt trip enables remote control of tripping |
| Fingersafe terminals (meets IP20 standards) |
| Fingersafe terminals (meets IP20 standards) |
| Black handle colour |
| Grey handle front plate colour |
| Padlock in ON positionPadlock in OFF position rotary handle padlocking |
| Extended rotary handle mounting style |
| 1 to 3 padlocks locking options description |
