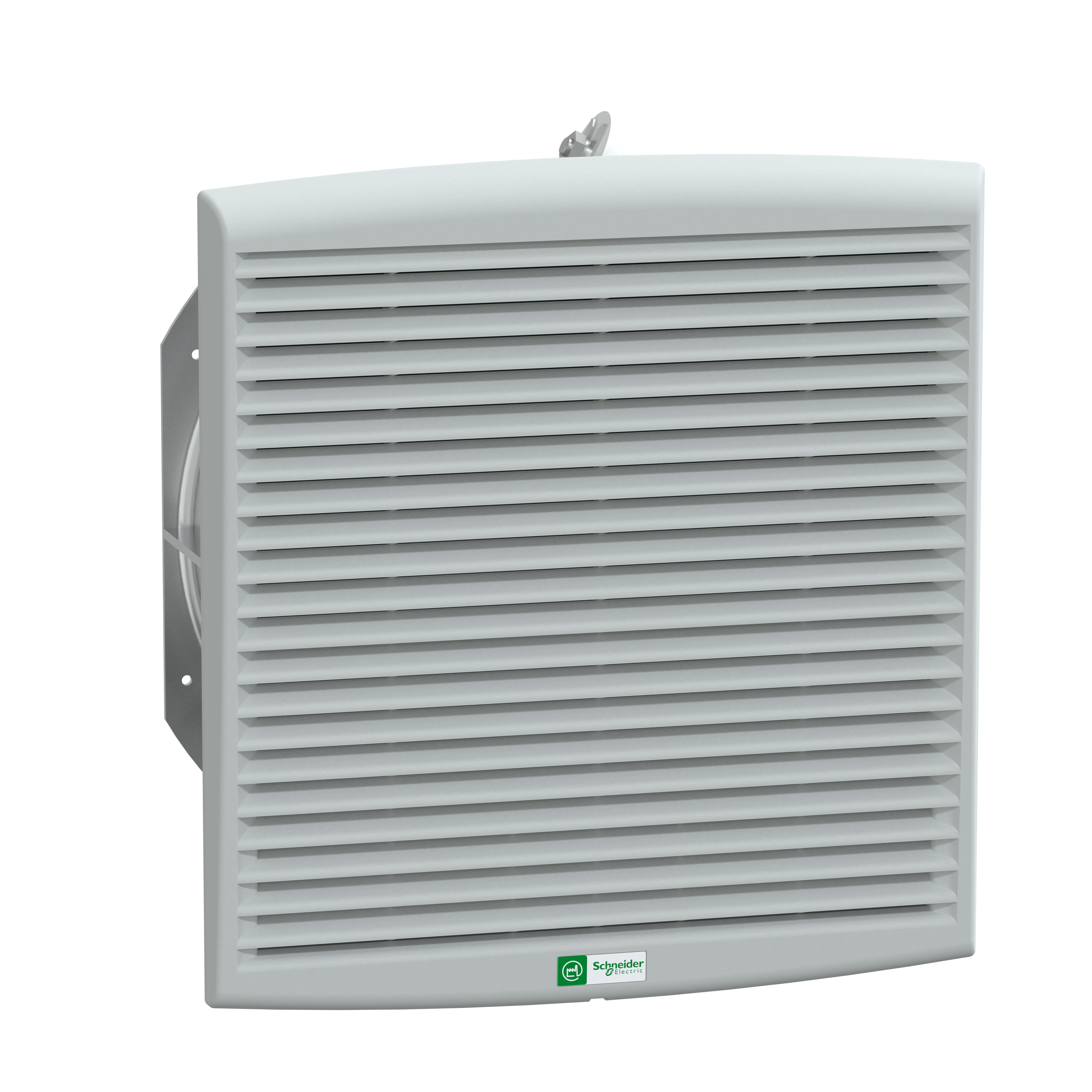

Schneider Electric ClimaSys CV Square D™ NSYCVF850M115PF Self-Extinguishing Forced Ventilation Fan, 115 VAC, 1.279/1.6 A, 145/182 W Power Rating, 850 cu-m/hr Air Flow, IP54 Enclosure
Enclosure Fans
1341054
MFG #: NSYCVF850M115PF
Square D™
668.61000
/ ea
- 360 Degree View URL - 360(360 Degree View URL)
- 360 Degree View URL - index.html?pid=11003&id=11198194360Den&ext=webp(360 Degree View URL)
- Brochure URL(Brochure URL)
- Brochure URL - 11003_BATP10J4UZY3OI95.pdf(Brochure URL)
- Brochure URL - 11003_Q9GEAJDSF2BMHTUI.pdf(Brochure URL)
- Computer~Aided [CAD|BIM] Model URL(Computer~Aided [CAD|BIM] Model URL)
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=NSYCVF850M115PF.zip(Computer~Aided [CAD|BIM] Model URL)
- Install Instructions 1 URL - 11003_WU46I8O7YJ2CFKLT.pdf(Install Instructions 1 URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Service Manual URL - 11003_2UL7FXEJ0YAP9ZIW.pdf(Service Manual URL)
- Service Manual URL - 11003_WZKGQ2914N3LCPEF.pdf(Service Manual URL)
- Spec Sheet URL - 11003_T27435P0HNCWY81X.pdf(Spec Sheet URL)
- User Manual URL - 11003_QEXC7DM34YBZS6AV.pdf(User Manual URL)
- User Manual URL - 11003_N59V4X8Z160LDQMA.pdf(User Manual URL)
- Applications
- Features
| FORCED VENTILATION 850 M¦/H |
| Terminal block |
| The ClimaSys CV is recommended for installations in which the ambient temperature is lower than the desired temperature inside the enclosure |
| The fans comprise an axial motor, a protective housing on the front and rear surfaces and a filter designed to retain dust particles |
| Filter can be replaced during operation without risk of contact with the rotating element |
| The outside temperature must be 5 deg C lower than the desired temperature inside the enclosure |
| The filters that equipped the fans must be cleaned and replaced regularly |
| The surrounding environment must be relatively clean and over frequent filter replacement should be avoided |
| Bear in mind the pressure losses caused by the outlet element (grille with filter, ventilation louvre or simple opening) when determining the fan flow rate |
| -40 to 70 deg C storage |
| The cutout template supplied with the device avoids the need for marking and protects the surface of the enclosure during handling |
| 145 W at 50 Hz, 182 W at 60 Hz power rating |
| 145 W at 50 Hz, 182 W at 60 Hz power rating |
| 1.279 A at 50 Hz, 1.6 A at 60 Hz current rating |
