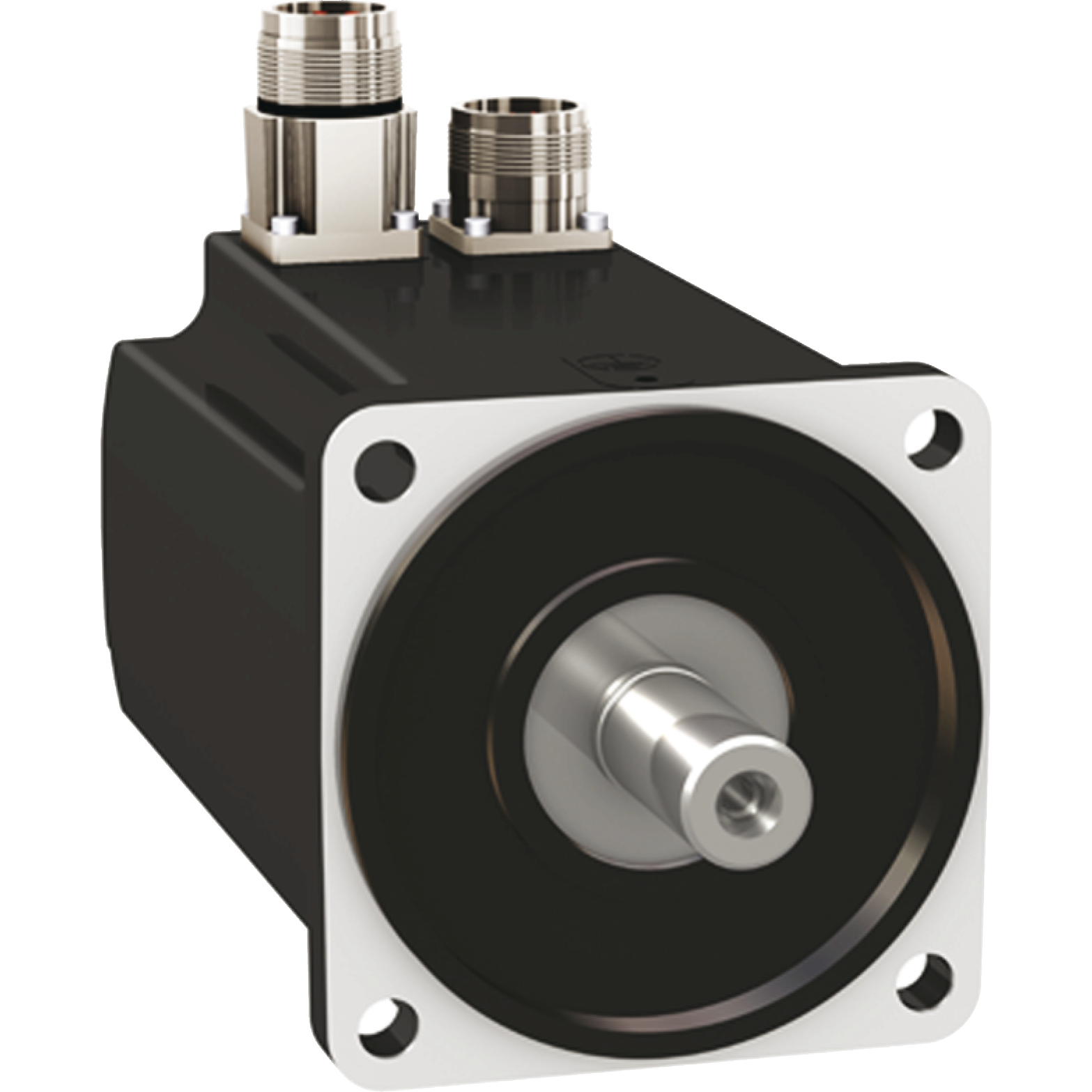

Schneider Electric BMH1001T01A1A BMH Series 1-Stack 10-Poles Smooth Shaft, 240 V, 15 A, 2000,3000 rpm speed, Flange mount
Servo Motors
PDW~13593409
MFG #: BMH1001T01A1A
Square D™
0.00000
/ ea
- Computer~Aided [CAD|BIM] Model URL - files?p_enDocType=CAD&p_File_Name=BMH1001T01A1A_3D.stp(Computer~Aided [CAD|BIM] Model URL)
- Seller Home Page URL - us(Seller Home Page URL)
- Spec Sheet URL - 11003_3ZI7SX2MDOAQEWC4.pdf(Spec Sheet URL)
- Tech Drawing URL - 11003_NCH9O4GQJ18ED7B6.pdf(Tech Drawing URL)
- Tech Drawing URL - 11003_RZGKXWHBEM5O647U.pdf(Tech Drawing URL)
- User Manual URL - 11003_3Y8EK0T6DGH74FOC.pdf(User Manual URL)
- User Manual URL - 11003_689WZKHILTJMNVE5.pdf(User Manual URL)
- Video - https://www.youtube.com/embed/ZR2PVbFb8fM(Video)
- Features
| Three book-size servo drive models and two servo motor families plus a full range of intelligent options |
| Lexium 32 simplifies all aspects in the machine life cycle from engineering to maintenance |
| A speed bandwidth of 1,600 Hz provides outstanding response |
| With a power density of 548 W/l Lexium 32 packs maximum power into minimum volume |
| This saves on cabinet space and size, reduces the machine footprint and decreases costs |
| Powerful integration software simplifies the entire process from planning to commissioning |
| The new Autotuning function makes tuning easier than ever before |
| Lexium 32 offers a host of features for rapid installation and maintenance |
| Lexium 32 supports a wide selection of interfaces for fast integration into architectures |
| Leverage the full power of existing assets such as applications or legacy motors |
| Leverage the full power of existing assets such as applications or legacy motors |
| "Safe Torque Off" on board (IEC/EN 61800-5-2) for shorter downtime and less wiring |
| The optional enhanced safety module eSM frees you from the hassle of devising complex, proprietary safety concepts. Access to SS1, SS2, SOS and SLS safety functions (IEC/EN 61800-5-2) |
| Without holding brake |
| 700 W LXM32.D30M2 10 A, 115 V, single phase900 W LXM32.D18M2 6 A, 230 V, single phase nominal output power |
| Without second shaft end second shaft |
| Single turn SinCos Hiperface feedback type |
| 3.94 in (100 mm) motor flange size |
| 43.3 V/krpm 248 deg F (120 deg C) back emf constant |
| 3.19 kg.cm2 rotor inertia |
