| Without coolant entry |
| 2 mm neck diameter |
| 15.471 mm usable length |
| 2.6 mm pre-machined hole diameter |
| 2.8448 mm thread diameter |
| N and P material grade |
| Thread back taper property |
| Released life cycle state |

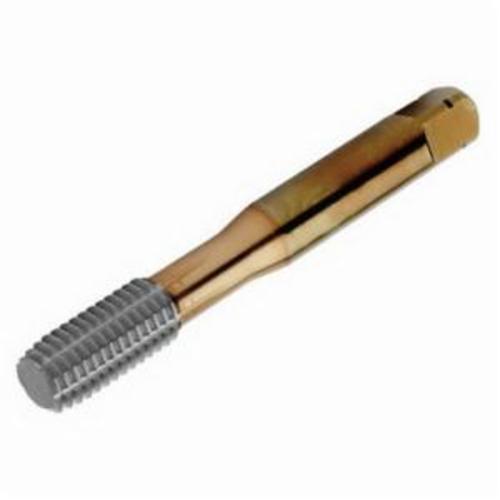

| Taps that form the thread instead of cutting |
| A chip-free solution |
| All materials not suitable since there is need of certain ductility |
| Recommended tensile strength limit is 1200 N/sq-mm |
| For through or blind holes applications |
| 2.5XD cutting depth |
| 0.141 x 0.11 in tap shank adaptive interface machine direction |
| C2-3 chamfer |
