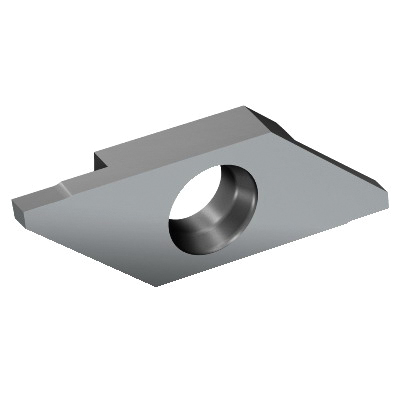

Sandvik Coromant 6071728 CoroCut® XS, MACL 3 200-T 1105, MACR/L-T Insert, Carbide, 1105, MACL 3 200-T 1105
MACL/MACR Cut-off & Parting Inserts
1253987
MFG #: 6071728
Sandvik Coromant
50.72000
/ ea
Sandvik Coromant Parting Insert, Series: CoroCut® XS, MACR/L-T Insert, 1/8 in Thickness, 0.0078 in Width, 0.473 in Length, MAC Chipbreaker, 0.001 in Corner Radius, Manufacturer's Grade: 1105, ANSI Code: MACL 3 200-T 1105, ISO Code: MACL 3 200-T 1105, Left Hand, Carbide, PVD Coated, Material Grade: M/S
- Features
| 6 deg clearance |
| 20 life cycle state |
| 0 deg body machine side |
| Finishing operation |
| 40 - 60 deg countersunk hole and flat surface |
| -0.02 mm W cutting lower tolerance |
| 0.02 mm W cutting upper tolerance |
| -0.03 mm corner radius lower tolerance |
| 0.03 mm corner radius upper tolerance |
| E cutting edge condition |
| 2 edges |
| Positive rake |
| 0.02 - 0.14 mm/r cutting feed |
| 3 insert mounting style code |
| 3 insert seat size code |
| 3 mm D cutting |
