- Features
| 0 deg body machine side |
| 0 deg body workpiece side |
| Axial concentric coolant entry |
| Axial inclined focused coolant exit with nozzle |
| 0 deg inclination |
| 93 deg cutting edge |
| 50 deg maximum ramping |
| 30 life cycle state |
| 28 mm maximum overhang |
| 0.9 Nm torque |
| 12 mm W functional |
| 40 - 60 deg insert screw clamping |
| V - 35 deg diamond insert |

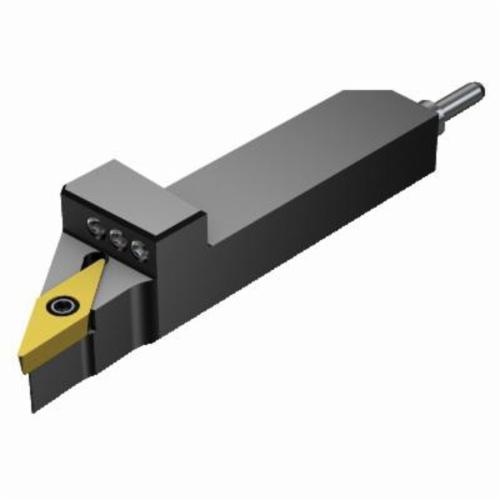

| ANSI Code: QS-SVJCL1212E11HP |
| ISO Code: QS-SVJCL1212E11HP |
