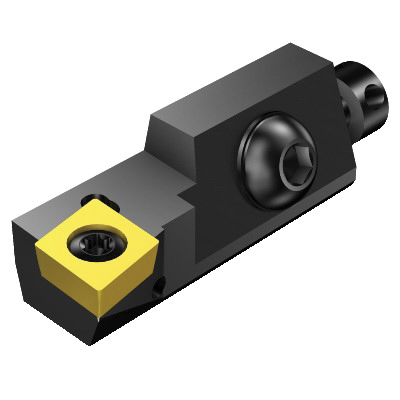

Sandvik Coromant 5749014 CoroTurn® 107, CCMT 09 T3 08(MIIDM) and CCMT 3(2.5)2(MIIDN) Insert, SCFCR/L..CA Insert, Left Hand
Indexable Turning Cartridges
1250397
MFG #: 5749014
Sandvik Coromant
237.60000
/ ea
Sandvik Coromant Turning Cartridge, Series: CoroTurn® 107, SCFCR/L..CA Insert, Insert Compatibility: CCMT 09 T3 08(MIIDM) and CCMT 3(2.5)2(MIIDN), Left Hand Cutting, Steel
- Features
| -1 to 1 mm adjustment limit |
| 15 mm W shank |
| Without coolant entry |
| 40 - 60 deg insert screw clamping interface |
| No coolant exit |
| 7 mm Dia access hole |
| 50 mm Dia minimum bore |
| 55 mm OAL |
| C - 80 deg diamond shape |
| 0 deg orthogonal |
| 20 mm H shank |
| 12 mm H functional |
| 90 |
| -3 deg inclination |
| 55 mm L functional |
| 35 mm L head |
| 20 deg mounting hole |
| 20 deg mounting hole |
| 20 mm mounting hole distance |
| 6 mm mounting hole height |
