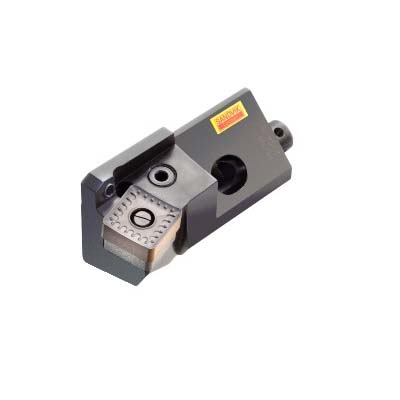

Sandvik Coromant 5740022, SNMG 12 04 08(MIIDM) and SNMG 432(MIIDN) Insert, PSKNR/L..CA Insert, Left Hand
Indexable Turning Cartridges
1237930
MFG #: 5740022
Sandvik Coromant
237.60000
/ ea
Sandvik Coromant Turning Cartridge, PSKNR/L..CA Insert, Insert Compatibility: SNMG 12 04 08(MIIDM) and SNMG 432(MIIDN), Left Hand Cutting, Steel
- Features
| -1 to 1 mm adjustment limit |
| 20 mm W shank |
| Without coolant entry |
| Lever hole clamping interface |
| No coolant exit |
| 9 mm Dia access hole |
| 55 mm Dia minimum bore |
| 66 mm OAL |
| S - Square shape |
| -6 deg orthogonal |
| 25 mm H shank |
| 16 mm H functional |
| 75 deg cutting edge |
| -7 |
| 63 - 66 mm L functional |
| 39 mm L head |
| 66 mm L protruding |
| 45 deg mounting hole |
| 45 deg mounting hole |
| 25 mm mounting hole distance |
