| Store-and-forward technology, configurable alarm contact, N-Ring™ technology with 30ms healing |
| Web configuration Ethernet/IP™ CIP messaging, DHCP server with option 82 relay, option 61, and IP fallback, port mirroring |
| ESD and surge protection on all built-in ports |
| Internet group management protocol snooping intelligent forwarding and filtering of multicast traffic |
| VLAN (Virtual local area network enables switch segmentation allows creation of two or more separate local area network domains |
| QoS (quality of service) prioritizes network traffic and improves latency of prioritized Ethernet packets required for ring management, real-time, and other interactive applications |
| Trunking (link aggregation)enables multiple physical ports to be linked together and function as one uplink to another identically configured N-Tron® switch, increases bandwidth and redundancy to applications requiring high levels of fault tolerant operation |
| Port mirroring allows traffic on one port to be duplicated and sent to a designated mirror port, can be used to Monitor Ethernet traffic on the designated source port using the assigned mirror port |
| DHCP (DHCP server/client) automates the assignment of IP addresses, option 82 assures that a replacement device on a specific port receives the same IP address as the original |
| RSTP (rapid spanning tree protocol) allows configuration in a ring or mesh topology, provides support for redundant path communications with high speed (rapid) healing |

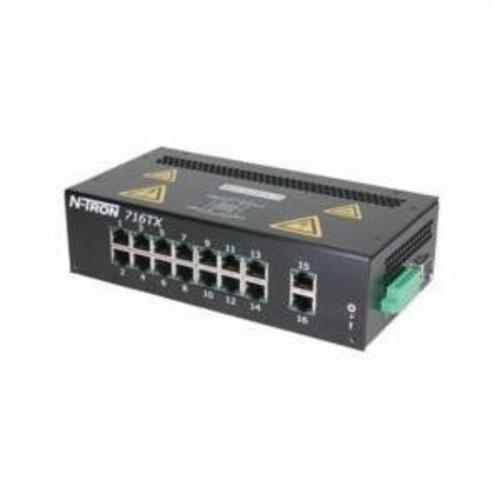

| For ease of configuration and monitoring, the 716TX offers web browser management and N-View™ OLE for process control (OPC) server software |
| The N-Tron® N-View™ software can be combined with popular HMI software packages to add network traffic monitoring, trending, and alarming to any application using N-Tron® switches |
| In addition, SNMP is available for switch link and status monitoring, the alarm contact and status LED can be configured to respond to power failure on power input 1 or input 2, N-Ring™ broken, partial break high, partial break low, or if multiple ring managers are detected |
| Designed to operate in industrial environments |
| It is housed in a rugged steel DIN rail enclosure, it has extended industrial specifications and features to meet or exceed the operating parameters of connected equipment |
| These include extended temperature ratings extended shock and vibration specs, redundant power inputs and high MTBF (greater than 2M hours) |
| The 10/100BaseTX ports are auto sensing and auto configuring each copper port is automatically negotiated for maximum speed and performance by default, but can also be Hard coded through-the user interface |
| A high speed processor enables wire speed on all 100BaseTX ports simultaneously |
| 8000 MAC addresses, programmable aging time, latency typical is 2.6 us, store and forward switch, redundant input voltage of 10-30 VDC input current of 620 mA at 24 VDC BTU/hr is 50.8 at 24 VDC |
| Operating humidity is 5% to 95% (non condensing), operating altitude is 0 to 10000 ft, 200 g at 10ms shock, vibration/seismic of 50 g, 5-200 Hz, triaxial, >2 million hours MTBF|Recommended wiring clearance is 4 in front, 1 in side |
