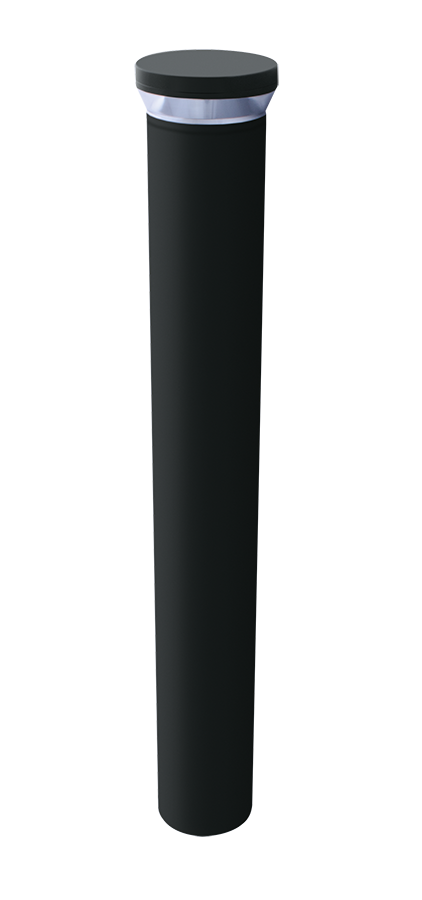

RAB Lighting BLEDR18N RAB BLED Round Bollard Light, LED Lamp, 22 W Fixture, 120/208/240/277 VAC, Bronze/Polyester Powder Coated Housing
Bollard Lights
812491
MFG #: BLEDR18N
RAB
852.60000
/ ea
RAB Bollard Light, Round, Series: BLED, 120/208/240/277 VAC, 22 W Fixture, 0.24/0.18/0.15/0.12 A, 270 deg Lighting Pattern, LED Lamp, 18 W Lamp, L70 Lamp Base, 100000 hr Average Life, 4000 K Color, 87 CRI, Polycarbonate Glass Lens, 922 Lumens, Concrete Pad Mount, Aluminum Housing, Bronze/Polyester Powder Coated Housing, 42 in H x 6-1/2 in W
- Brochure URL - 11274_ID-BRO-v1-bled_backup_datasheet.pdf(Brochure URL)
- http://www.rabweb.com(Seller Home Page URL)
- Install Instructions 1 URL - 11274_V9A6HTBROMZF4QDI.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 11274_PWJHLN09XZVRAFGT.pdf(Spec Sheet URL)
- Tech Drawing URL - 11274_ID-DRW-v1-bled18r_2.png(Tech Drawing URL)
- Warranty URL - 11274_ID-WAR-v2-Website_Terms_of_Use.pdf(Warranty URL)
- Warranty URL - Website_Terms_of_Use.pdf(Warranty URL)
- Applications
- Features
| OUTDOOR |
| Round Bollard |
| Patent pending base mount design for super sturdy installation |
| Durable construction and vandal resistant polycarbonate lens |
| 3 configurations to provide 360, 270, 180 or 90 deg lighting pattern |
| Precision engineered optics deliver maximum downward lighting without glare |
| (4) leveling screws provided for easy installation |
| Clear, vandal resistant polycarbonate lens |
| Suitable for use in 104 deg F ambient temperature |
| High temperature silicone gaskets seal out moisture |
| (4) anchor bolts provided for concrete pad mounting |
| 81% efficacy |
| 42 LPW efficacy |
| Without photocell |
| 0.24 A at 120 VAC, 0.18 A at 208 VAC, 0.15 A at 240 VAC, 0.12 A at 277 VAC |
