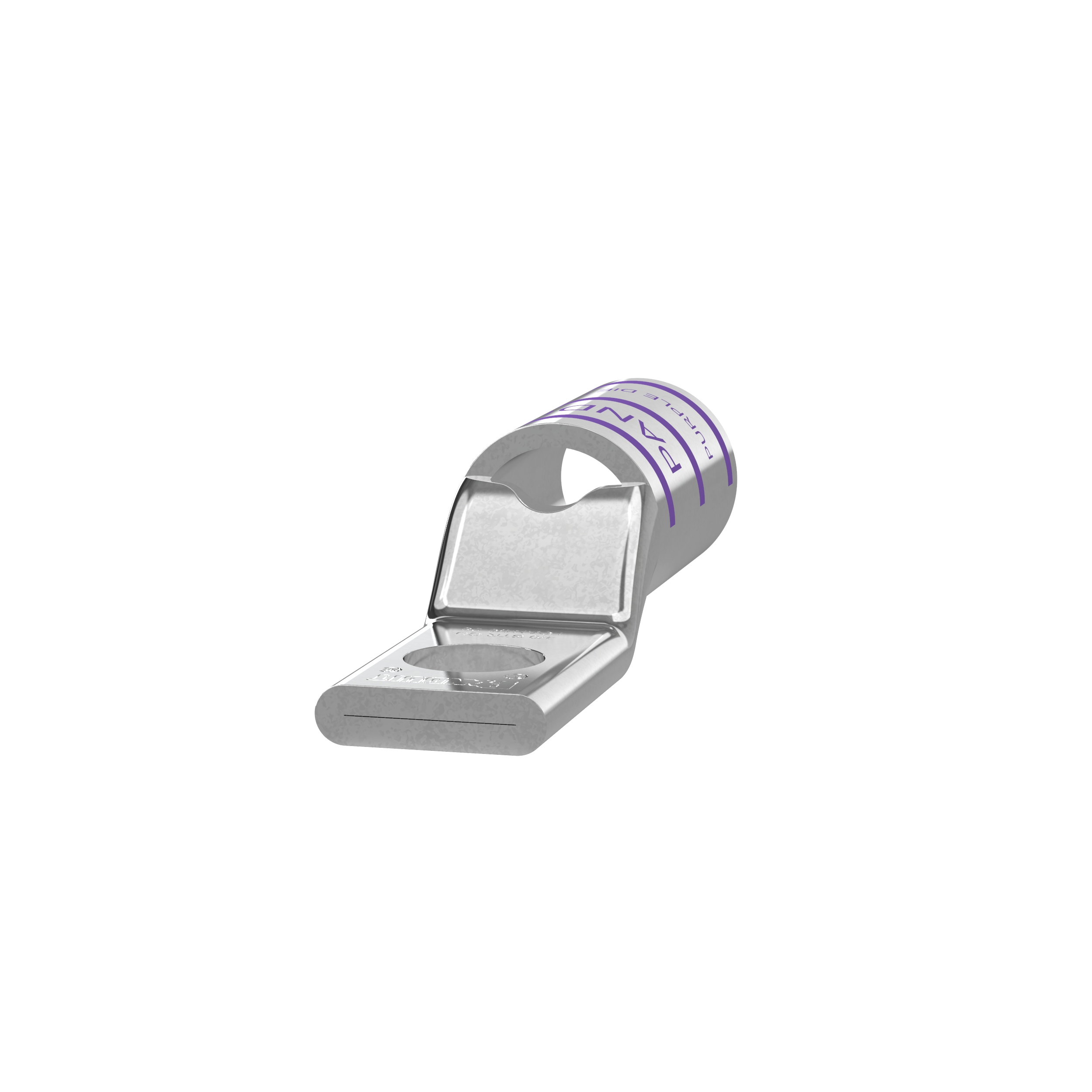

Panduit® LCAN4/0-38-X LCAN 1-Hole Compression Lug Connector With Inspection Window, 4/0 AWG Copper Conductor, 3/8 in Stud, P54
Lugs
501374
MFG #: LCAN4/0-38-X
Panduit®
1932.98000
/ ea
- Full Eng Drawing URL - LCAN400-38-6rev01.pdf(Full Eng Drawing URL)
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - 10965_8HR3XEG6CB7NY1PF.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - 10965_SV17D5G0NPEHFL3C.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - LCAN4_0-38-X-01.pdf(Install Instructions 1 URL)
- Install Instructions URL - N-PCT-PMPI-63-PC--REV09--ENG.pdf(Install Instructions URL)
- Spec Sheet URL - LCAN4_0-38-X-01.pdf(Spec Sheet URL)
- Tech Bulletin URL - 10965_4HBSMXIT3RPVYJL0.pdf(Tech Bulletin URL)
- Tech Bulletin URL - D-PCCB15--SA-ENG-CrimpingMachine.pdf(Tech Bulletin URL)
- Video - https://www.panduit.com/content/dam/panduit/en/products/media/7/77/277/5277/110185277.mp4(Video)
- Tech Drawing URL - 10965_6A7BPD3N02LJWRIO.pdf(Tech Drawing URL)
- Video - http://www.panduit.com/heiler/Videos/M-PCUP65CRIMP--HIR-ENG.mp4(Video)
- Tech Drawing 1 URL - Panduit_LCAN4_0_38_X_Technical_Drawing.pdf(Tech Drawing 1 URL)
- Features
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
| Tin plated to inhibit corrosion |
| Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection |
| Inspection window to visually assure full conductor insertion |
| 320 micro in (8 micro m) tin-plating meets ASTM B545-97, class C |
| High conductivity seamless copper tube |
| Narrow tongue width for limited space applications |
| Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V |
