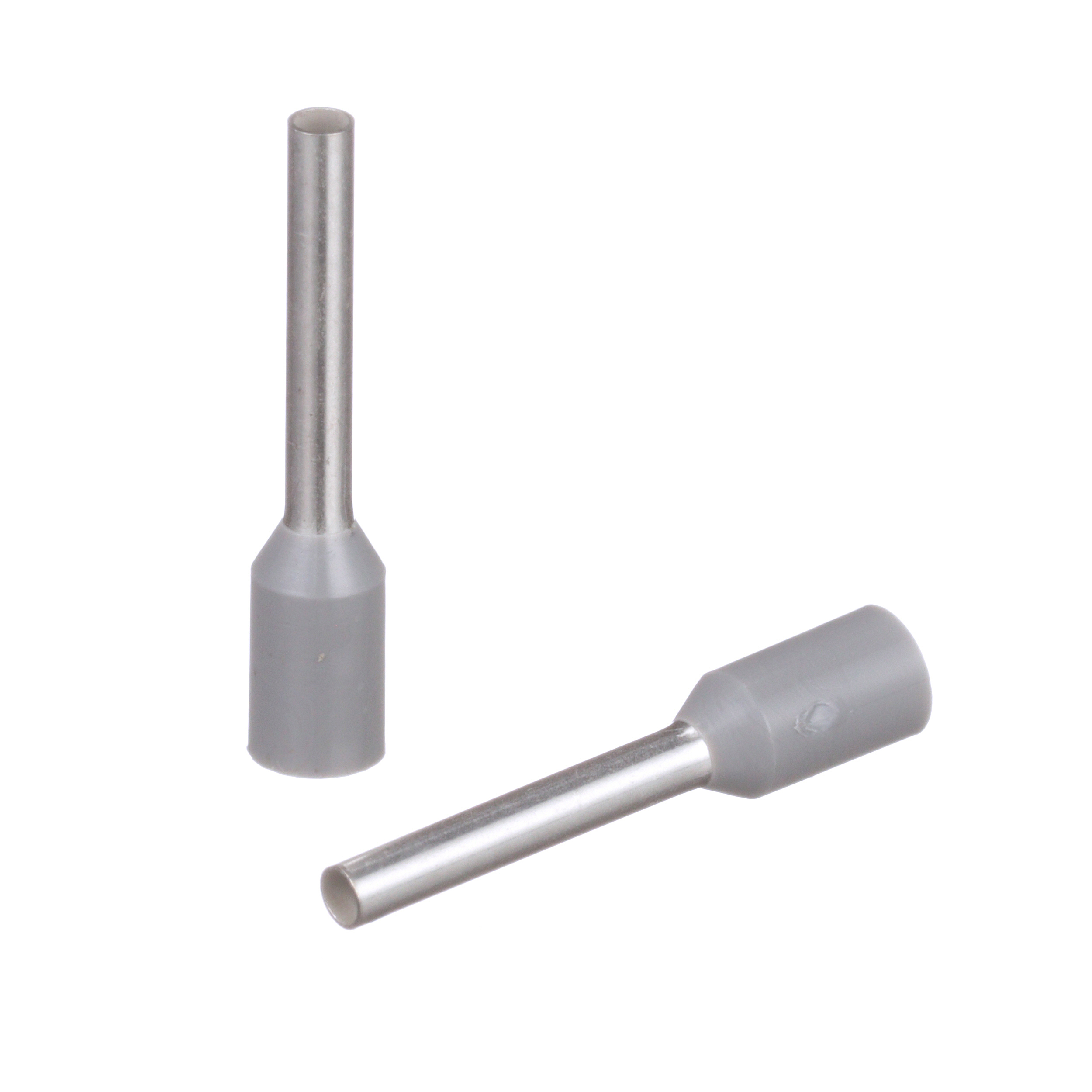

Panduit® FSD76-10-D FSD Loose Piece Wire Ferrule With Sleeve, 20 AWG Stranded Copper Conductor, Insulated Insulation, 600 VAC
Terminal Block Wire Ferrules
269613
MFG #: FSD76-10-D
Panduit®
215.95000
/ ea
- http://www.panduit.com(Seller Home Page URL)
- Install Instructions 1 URL - A41667.pdf(Install Instructions 1 URL)
- Line Drawing URL(Line Drawing URL)
- Spec Sheet 1 URL - Panduit_F2X3WH6_A_Specification_Sheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - C-TMFSD72-8-D--ENG.pdf(Spec Sheet URL)
- Tech Drawing URL - 10965_6PN47AECOJ095GFH.pdf(Tech Drawing URL)
- Tech Drawing URL - 10965_UKIGH6MJEPD1WRAF.pdf(Tech Drawing URL)
- Tech Drawing URL - C-TMFSD72-8-D--ENG.pdf(Tech Drawing URL)
- Video - http://www.panduit.com/heiler/Videos/M-PCCP-881-InstallationMachine--169-ENG.mp4(Video)
- Video - https://www.panduit.com/content/dam/panduit/en/products/media/0/00/600/4600/110114600.mp4(Video)
- Features
| 17/32 in wire strip length |
| Designed with a seamless barrel to contain loose wire strands for superior terminations |
| A wide assortment of ferrule styles and tool designs provide a proven way to make reliable connections |
| Insulation flare allows for ease of wire insertion and eliminates loose strands of wire |
| Eases insertion of wire into terminal block |
| Encapsulated crimp contains loose wires to eliminate stray wire breakage |
| Funnel entry for faster insertion and lower installed cost |
| Polypropylene insulation housing conforms to DIN color requirements |
| Features end sleeve style, single wire |
| CT-1002, CT-1003, CT-1123 recommended installation tool |
| Made of copper with tin plating for prolonged durability |
| 0.11 in max insulation dia |
| B, K, M wire class |
| 0.05 in ID |
| 500/Pack, bag |
