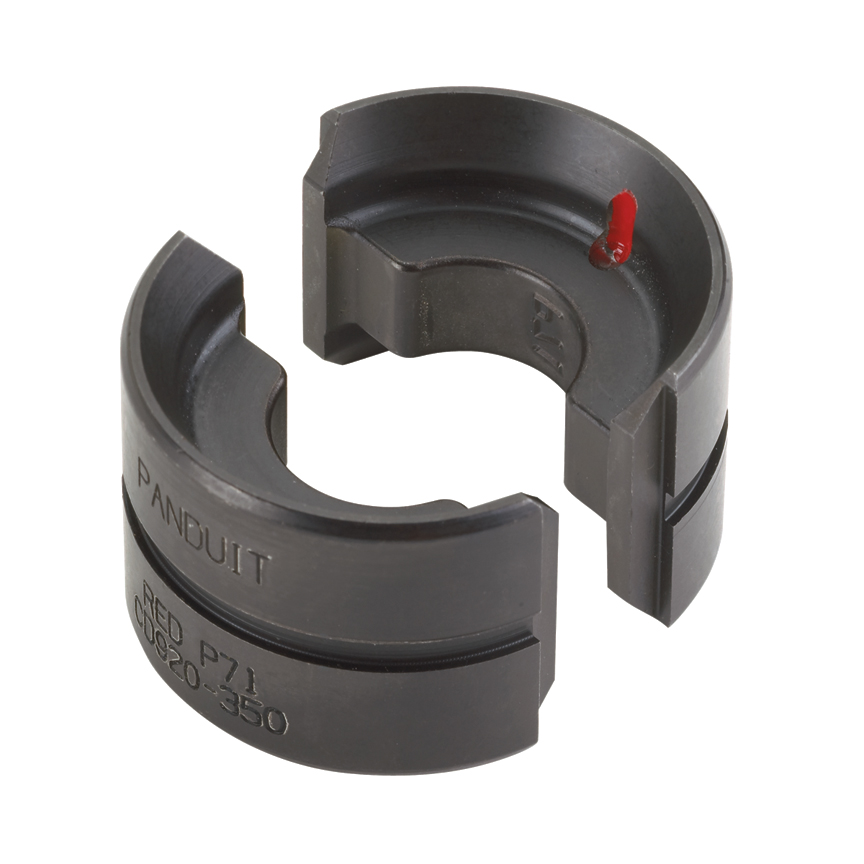

Panduit® CD-920H-6 Crimping Die, Steel
Crimping Tool Dies
218399
MFG #: CD-920H-6
Panduit®
259.07000
/ ea
- http://www.panduit.com(Seller Home Page URL)
- Spec Sheet 1 URL - Panduit_CD_920_BG_Datasheet.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - CD-920-8 Product Page.pdf(Spec Sheet URL)
- Tech Bulletin URL - Panduit_CD_920H_6_Datasheet.pdf(Tech Bulletin URL)
- Tech Drawing URL - 10965_8V71HD2F5NQI3PRK.pdf(Tech Drawing URL)
- Tech Drawing URL - 110580851.pdf(Tech Drawing URL)
- Video - https://www.panduit.com/content/dam/panduit/en/products/media/1/31/131/0131/110610131.mp4(Video)
- Applications
- Features
| Cable compression lugs and connectors |
| Embosses die index number on connector barrels to provide post crimp inspection |
| Color coded to provide easy matching to color-coding marked on connectors |
| Color coded to connector, premium crimp, embosses die number |
| Part number permanently marked on crimping die for easy identification |
| Provide circumferential crimp results in terminations with premium electrical and mechanical performance |
| For use with CT-920, CT-2920, CT-930, CT-2930/L, CT-2930/LE, CT-2931 and CT-2931/E crimp tools and CT-930/CH crimp head, can also be used with Panduit CT-2940/L and CT-2940/LE crimp tools, HTCT6X-6X-1 copper tap and CT-940CH crimp head with CD-940-DA die adapter |
| Orange color |
| PH6 die code |
