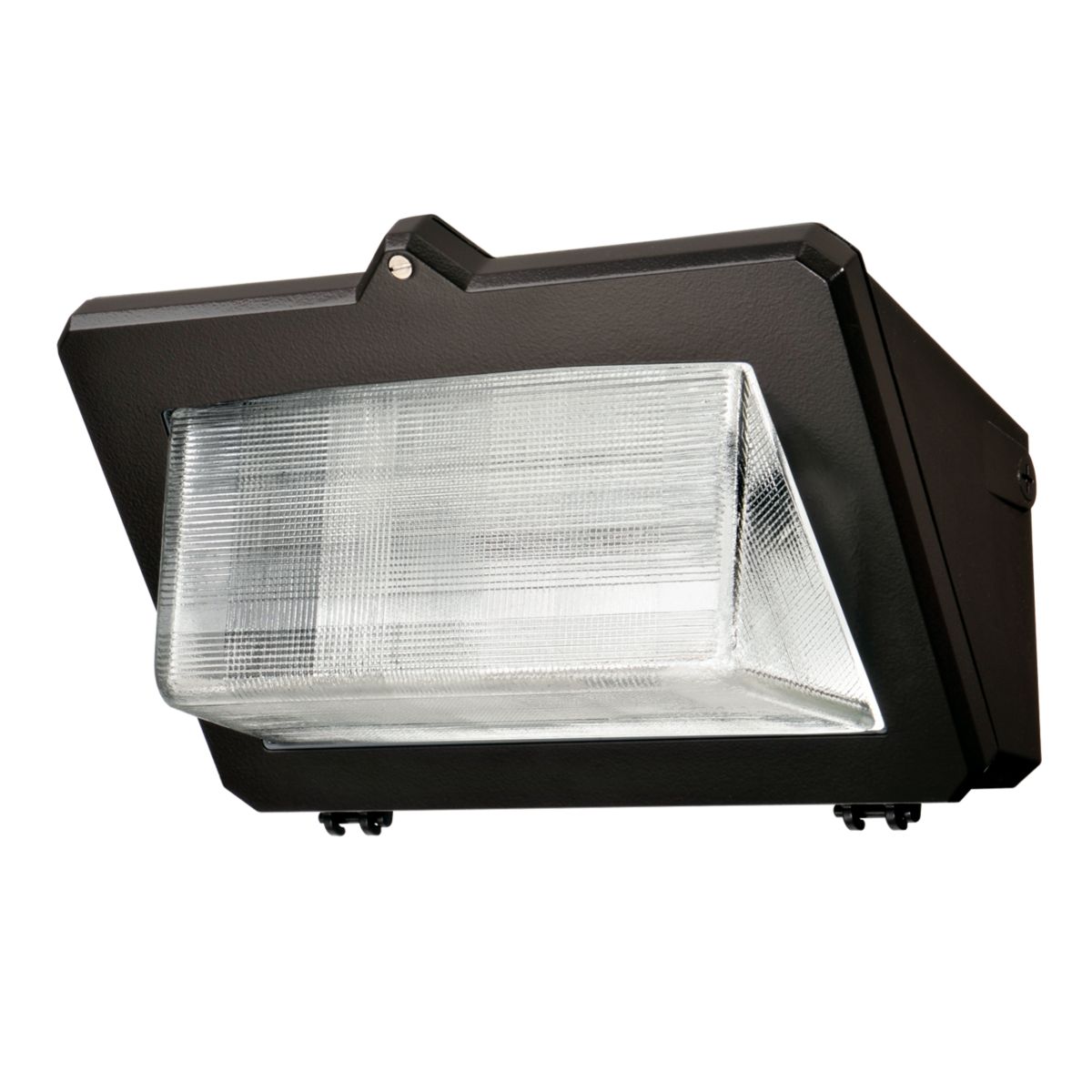

Lumark LDWP-GL-6B-ED-7040 Borosilicate Glass Door Standard Outdoor Wall Pack, (1) LED Lamp, 46 W Fixture, 120 to 277 VAC, Bronze Polyester
Outdoor Wallpacks
1295012
MFG #: LDWP-GL-6B-ED-7040
Lumark
593.15000
/ ea
Lumark Outdoor Wall Pack, Borosilicate Glass Door Standard, 120 to 277 VAC, 46 W Fixture, 0.4/0.18 A, LED Lamp, 1 Lamps, 72000 hr Average Life, 4000 K Color Temperature, 72 CRI, 0 to 10 V Dimmable Ballast, Refractive Lens, 5828 Lumens, Class H Insulation, IP66 Enclosure, Wall Mounting, Die Cast Aluminum Housing Material, Bronze Polyester Powder Coated Housing Finish, 16-5/8 in W x 12-3/4 in D x 10 in H Dimensions
- Brochure URL - 11143_6AHYCBM2PIV5WJTG.pdf(Brochure URL)
- http://www.cooperlighting.com(Seller Home Page URL)
- Install Instructions 1 URL - 11143_4E7HKOJPTA0Q86WD.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - b63f3885f8ef49ff85b9ad40006b6b00(Install Instructions 1 URL)
- Spec Sheet URL - 11143_EP4FTIQ6AW9X7803.pdf(Spec Sheet URL)
- Spec Sheet URL - 46c5f6a5afa04ed5869ead41008388b3(Spec Sheet URL)
- Applications
- Features
| Pathway Illumination, Building Entrances, Vehicle Ramps, Schools, Tunnels, Stairways, Loading D |
| Rugged die-cast aluminum housing and door in bronze powder-coat paint |
| Rugged die cast aluminum housing and door in bronze powder-coat paint |
| Captive, single-point stainless steel hardware closure point |
| Impact-resistant borosilicate prismatic glass hinged, removable door |
| Highly reflective anodized reflector provides optimized illumination |
| Patent pending, energy-saving LED technology with electronic driver |
| Ballast/LED driver are secured to housing for optimal heat sinking |
