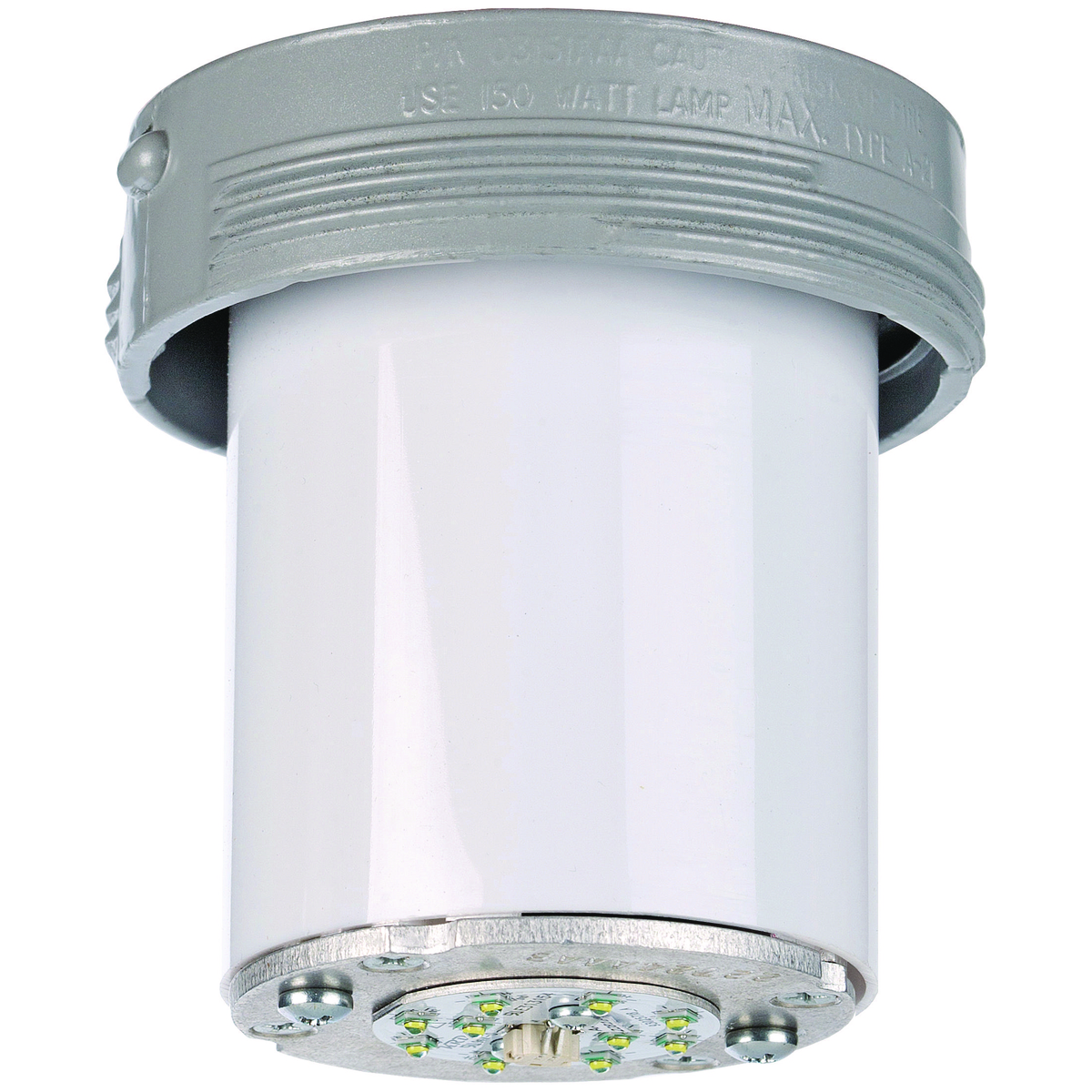

Killark® VSL1630 VSL Fixture Body With LED and Driver, LED Lamp, 16 W Fixture, 120 to 277 VAC
Explosion Proof Outdoor Lighting
792548
MFG #: VSL1630
Killark
773.18000
/ ea
Fixture bodies contain the LED driver and array, heat sink plus gaskets, and are threaded to accept globes, guards and reflectors. Users with KILLARK "V" Series vapor tight fixtures from the 1960's onward can upgrade to the latest technology and, in many cases, reuse existing mounts, globes and guards. VSL bodies are designed for metallic boxes and mount directly to V Series splice boxes or adapters as indicated.
- Catalog URL - Killark_MBL4530X2R5G_Catalog_1.pdf(Catalog URL)
- http://www.hubbell-killark.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11161_039QH71ZFVPOASID.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - KIL_VSL Series LED Luminaires IOM_K1378.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 11161_3HV2UQ49NJG6Y71I.pdf(Spec Sheet URL)
- Spec Sheet URL - KIL_VSL_SERIES_UTILITY_LIGHT.pdf(Spec Sheet URL)
- Warranty URL - 11161_ID-WAR-Warranty_Front_Pages_DNC_4-1-2011.pdf(Warranty URL)
- Warranty URL - Warranty_Front_Pages_DNC_4-1-2011.pdf(Warranty URL)
- Applications
- Features
| Killark ‘VSL’ Series LED fixtures are designed for installations where moisture, dirt, dust, corrosion and vibration may be present, or NEMA 3 and 4 areas where wind, water, snow or high ambients can be expected. VSL’s are sized to replace “Utility” type fixtures (incandescent or CFL’s) in hallways, closets, elevator pits, docks, stairwells, access tunnels, and mechanical rooms. These fixtures can be used in locations made hazardous by the presence of flammable vapors or gases or combustible dusts as defined by the NEC. Typical applications include manufacturing plants, and certain chemical and petrochemical processing facilities, sewage treatment plants, off-shore and dockside installations, and garage areas |
| Compact in size with traditional industrial appearance and suitability. VSL LED housings can be retrofitted to existing V Series splice boxes; upgrade from CFL or incandescent. Energy savings - less than 13W of power. Replaces 75W or higher incandescent. |
| 50/60 Hz frequency rating |
| 40 deg C ambient temperature |
| MBL LED housings can be retrofitted to existing |
| 3/4 in NPT |
| Long life up to 100000+ maintenance free hr to 70% initial lumens |
| Crisp white light for excellent color rendering, chromaticity 5000 deg K color temperature, 70 CRI, TM-21 |
| Instant on operation after power interruption |
| World voltage 120 to 277 VAC, 50/60 Hz |
| Solderless LED board connections, vibration resistant |
| Dual Drivers 40, 45, 50 W redundant systems (built-in backup), or for additional energy savings half of MBL4530 can be turned off |
| Gray color |
| 50/60 Hz frequency |
