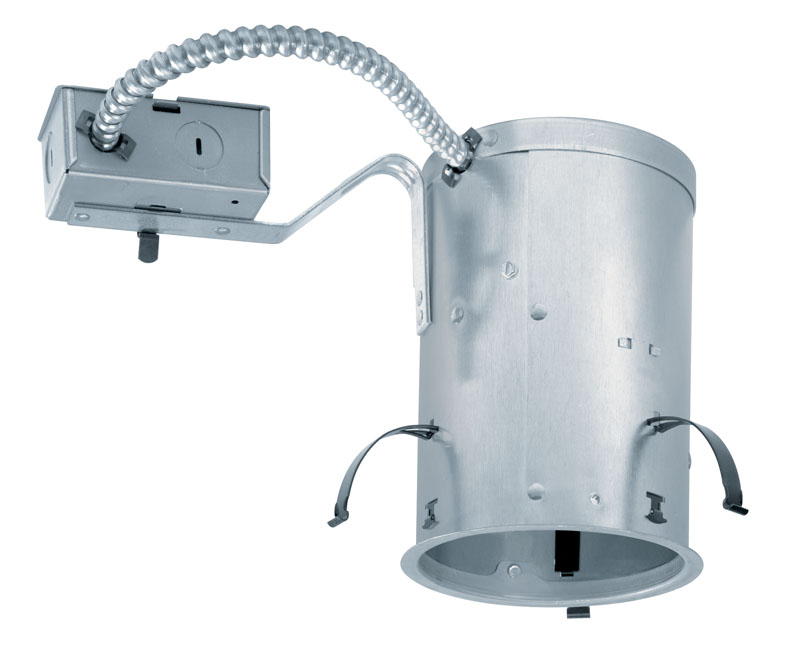

Juno® Air-Loc® IC20R Remodel Universal Recessed Lighting Housing, Incandescent Lamp, IC Insulation, 120 VAC
Recessed Lighting Housings
77065
MFG #: IC20R
Juno®
17.09000
/ ea
- Brochure URL - 10988_R7XB1AY34E02HTZD.pdf(Brochure URL)
- Catalog URL - JUNO_IC1_Brochure.pdf(Catalog URL)
- http://www.junolightinggroup.com(Seller Home Page URL)
- http://www.junolightinggroup.com/(Seller Home Page URL)
- http://www.lithonia.com(Seller Home Page URL)
- Install Instructions 1 URL - 10988_ONEILC3GPUHKY7JZ.pdf(Install Instructions 1 URL)
- Install Instructions URL - IC & TC Remodel P3060.pdf(Install Instructions URL)
- Installation Video URL - watch?v=jVup97s-JGA(Installation Video URL)
- Line Drawing URL - 10988_9RW1J3MBS0ZVON8X.gif(Line Drawing URL)
- Line Drawing URL - JR-IC20R-LA1.gif(Line Drawing URL)
- Spec Sheet 1 URL - ID-SPE-v1-G2_1_1.pdf(Spec Sheet 1 URL)
- Spec Sheet URL - 10988_VIGYA1R79UFHO06S.pdf(Spec Sheet URL)
- Warranty URL - terms-and-conditions(Warranty URL)
- Spec Sheet URL - G2_1_1.pdf(Spec Sheet URL)
- Video - https://www.youtube.com/embed/ZPo75vz8IJw(Video)
- Applications
- Features
| Recessed Residential; Damp Location; Wet Location w/appr Trims; IC Rated; Air-Loc |
| Drop socket with spring to accommodate various trim installations |
| Medium base porcelain socket with nickel plated copper screw shell |
| Shadow-free, knife edge trim design blends smoothly into the ceiling |
| Thermally protected against improper use of lamps |
| Pre-wired junction box includes (5) 1/2 in knockouts with pryout slots, (4) non-metallic sheathed cable connectors and ground wire |
| UL listed, cUL, CSA certified for through branch wiring, maximum (4) 12 AWG branch circuit conductors |
| IC remodel housing for remodel application where back side of ceiling is not accessible |
| Installs through an opening in the ceiling from below |
| Can be completely covered with insulation |
| Energy efficient, sealed housing |
| Secured in place by factory installed remodel springs |
| 22 ga die-formed galvanized steel mounting frame |
| Remodel spring accommodate up to 1-1/8 in ceiling thickness |
| A19/BR30/PAR20/PAR30/PAR30L/R20/R30 lamps |
| Air-Loc® housing can be completely covered with insulation and stops infiltration and exfiltration of air, reducing heating and cooling costs |
