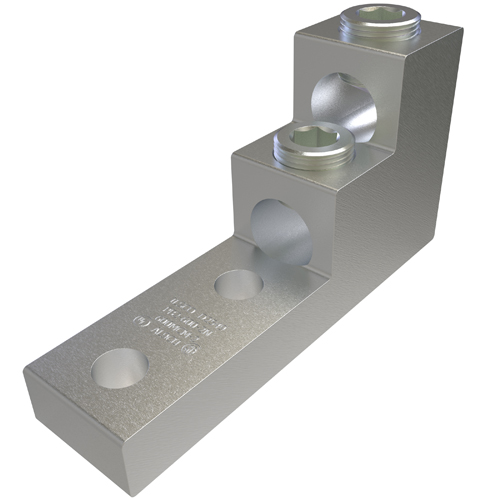

ILSCO® PB2-600-2N PB Dual Rated Panelboard Stack Lug, 2 AWG to 600 kcmil, 1/2 in Bolt/Stud, 1-3/4 in, Aluminum/Copper Conductors
Panelboard Lugs
93391
MFG #: PB2-600-2N
ILSCO®
175.53000
/ ea
- Compliance Cert URL - ILSCO_LDA_112_350_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.ilsco.com(Seller Home Page URL)
- Install Instructions URL - ILSCO_AU_0_Installation_Instructions.pdf(Install Instructions URL)
- Safety Data Sheet URL - MSDS_Letter_072015.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 10975_XSUT0OA85EZ134IJ.pdf(Spec Sheet URL)
- Tech Drawing 1 URL - ID-DRW-v1-D2549-22.pdf(Tech Drawing 1 URL)
- Tech Drawing URL - 10975_WVTZ7CGFXRIUKN9J.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/SXIDc-w-v9U&t=6s(Video)
- Warranty URL - ILSCO_GGC_2_Warranty.pdf(Warranty URL)
- Applications
- Features
| Panelboard Lug |
| Rated for copper or aluminum conductors;Suitable for use in circuits rated 35KV or less;Chamfered entry for ease of conductor insertion;Stacked design saves space and reduces installation time |
| Manufactured from high strength 6061-T6 aluminum alloy |
| Electro-tin plated provides low contact resistance |
| Chamfered wire entry provides ease of installation |
| Stacked design saves space and reduces installation time |
| Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used |
| Application versatility |
| Ensures reliability for copper or aluminum conductors |
| 2-11/32 in L x 1-1/2 in W x 3/4 in THK straight tongue |
| 90 deg C temperature rating |
| 2-studs |
| 2-ports/holes |
