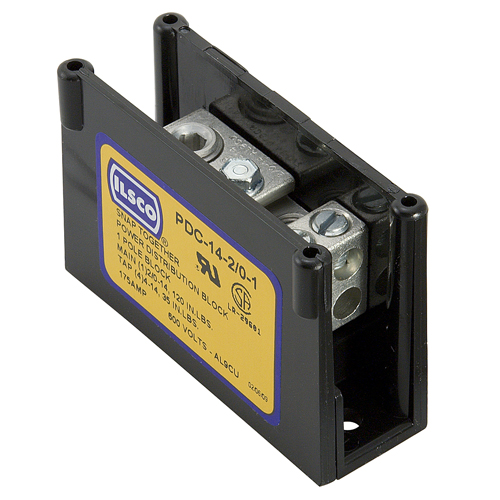

ILSCO® ClearChoice® PDC-14-2/0-1 Type PDC Power Distribution Block, 600 VAC, 175 A, 1 Pole, Aluminum
Single Pole Distribution Blocks
27921
MFG #: PDC-14-2/0-1
ILSCO®
46.81000
/ ea
- Compliance Cert URL - ILSCO_LDA_112_350_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.ilsco.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS_Letter_072015.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 10975_XCB7IP3W89GUAM6N.pdf(Spec Sheet URL)
- Spec Sheet URL - PDA.pdf(Spec Sheet URL)
- Tech Drawing 1 URL - ID-DRW-v1-M2627.pdf(Tech Drawing 1 URL)
- Tech Drawing URL - 10975_I5JAPFTGZ4BULX0K.pdf(Tech Drawing URL)
- Tech Drawing URL - M2627.PDF(Tech Drawing URL)
- Video - https://www.youtube.com/embed/iSKMnUv95Wk(Video)
- Features
| Modular design simplifies stocking. Combine any number of blocks with multiple conductor ranges for the specific configuration required for the job;Unique locking feature allows individual blocks to be combined quickly without special tools;Lexan insulating base provides a high degree of impact resistance with superior insulating qualities;Suitable for use with either copper or aluminum conductors |
| Modular design-simplifies stocking, combines any number of blocks with multiple conductor ranges into the specific configuration required for the job |
| Easy to assemble unique locking feature allows individual blocks to be combined quickly without special tools |
| Electro tin plated provides low contact resistance |
| Lexan insulating base - provides a high degree of impact resistance with superior insulating qualities |
| Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors |
| PDA are added to PDC to obtain a multi-pole block |
| 90 deg C temperature rating |
| (1) box lug primary, (4) box lug secondary |
| 3/16 in hex primary, slot hex secondary |
| 14 to 2/0 AWG primary and 14 to 4 AWG secondary wire |
| Modular design for ease of assemble |
| UL assigned short circuit current rating |
| Lexan® insulating base |
