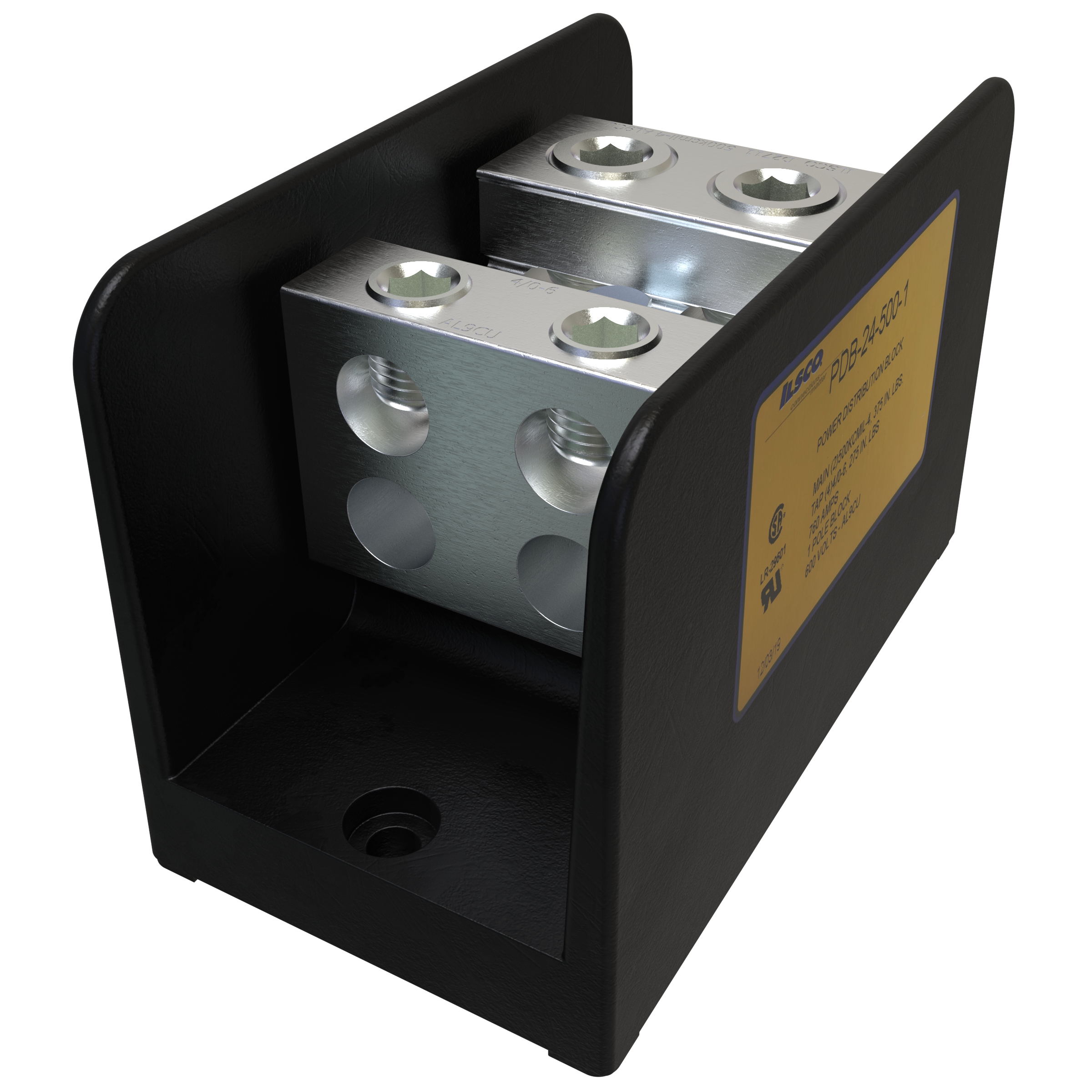

ILSCO® ClearChoice® PDB-24-500-1 Type PDB Power Distribution Block, 600 VAC, 760 A, 1 Pole, Aluminum
Single Pole Distribution Blocks
884827
MFG #: PDB-24-500-1
ILSCO®
209.94000
/ ea
- Compliance Cert URL - ILSCO_LDA_112_350_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.ilsco.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS_Letter_072015.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 10975_563F0ANB9GZROMX8.pdf(Spec Sheet URL)
- Spec Sheet URL - PDB.pdf(Spec Sheet URL)
- Tech Drawing URL - 10975_WKDY290OTM3BLXVI.pdf(Tech Drawing URL)
- Tech Drawing URL - M2498.PDF(Tech Drawing URL)
- Video - https://www.youtube.com/embed/iSKMnUv95Wk(Video)
- Features
| Rated for copper or aluminum conductors;Lay-in primary ports allow feed through of two primary conductors with no need to break the main feeder cable;Valox insulating base provides a high degree of impact resistance with superior insulating qualities |
| Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains |
| Range taking - provides tapping flexibility over a broad wire range |
| Electro tin plated provides low contact resistance |
| Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only |
| Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors |
| UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability |
| Provides low contact resistance |
| Suitable for use with either copper or aluminum conductors |
| Ensures reliability |
| Range taking for reduced inventories and flexibility |
| 3/8 in hex primary, 5/16 in hex secondary |
| Block L |
| (2) box lug primary, (4) box lug secondary |
| 4 AWG to 500 kcmil primary and 6 to 4/0 AWG secondary wire size |
| Valox® insulating base |
| 90 deg C temperature rating |
| UL assigned short circuit current rating |
| Provides great flexibility in using the connector as an in-line splice or to reduce conductor size |
| Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1 |
