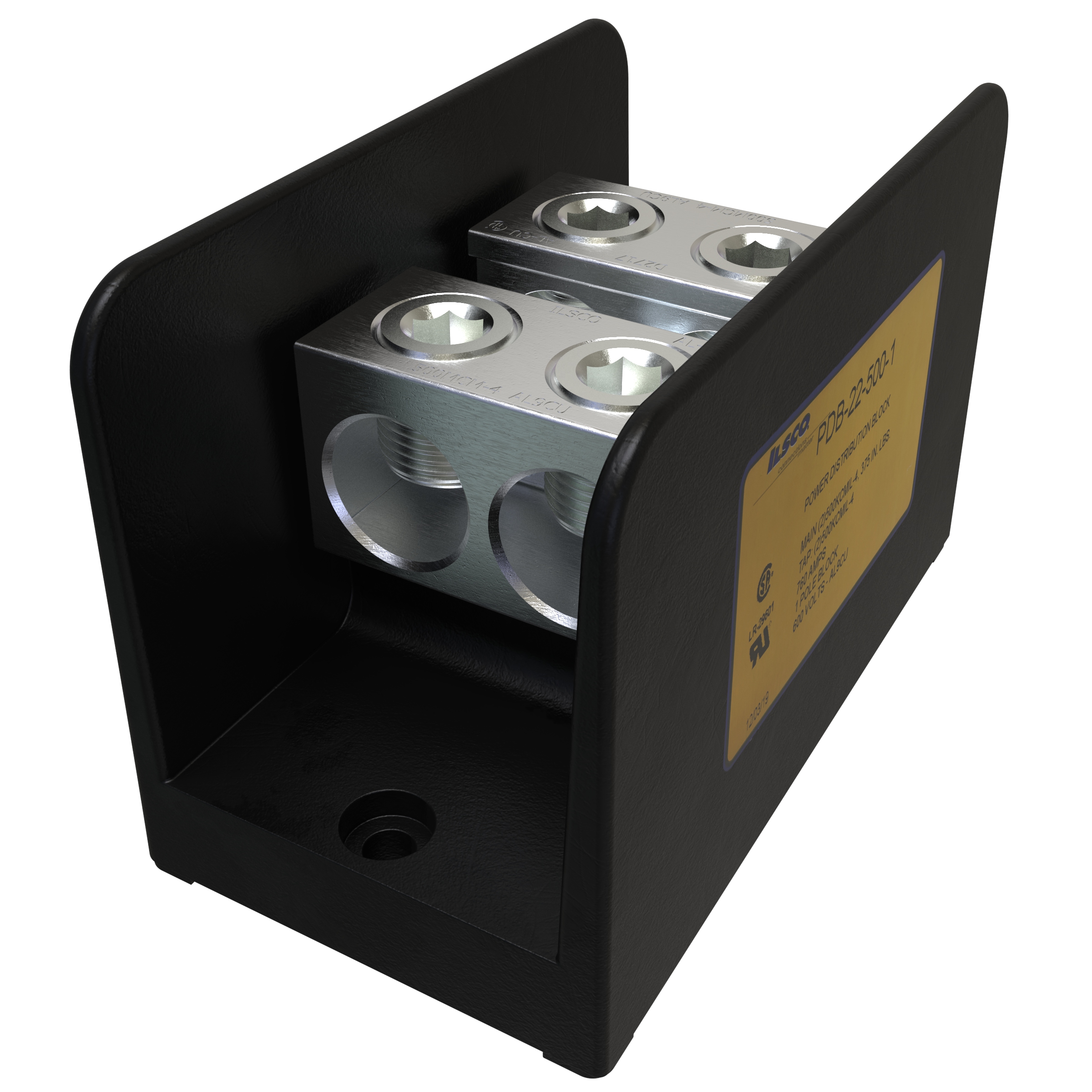

ILSCO® ClearChoice® PDB-22-500-1 Type PDB Power Distribution Block, 600 VAC, 760 A, 1 Pole, 4 AWG to 500 kcmil Wire
Single Pole Distribution Blocks
463647
MFG #: PDB-22-500-1
ILSCO®
191.18000
/ ea
- Compliance Cert URL - ILSCO_LDA_112_350_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.ilsco.com(Seller Home Page URL)
- Line Drawing URL(Line Drawing URL)
- Safety Data Sheet URL - MSDS_Letter_072015.pdf(Safety Data Sheet URL)
- Spec Sheet URL - 10975_CEW1YDH4XLANMIBZ.pdf(Spec Sheet URL)
- Spec Sheet URL - PDB.pdf(Spec Sheet URL)
- Tech Drawing 1 URL - ID-DRW-v1-M2571.pdf(Tech Drawing 1 URL)
- Tech Drawing URL - 10975_DYX5UVML2HB3T8QP.pdf(Tech Drawing URL)
- Tech Drawing URL - M2571.PDF(Tech Drawing URL)
- Video - https://www.youtube.com/embed/iSKMnUv95Wk(Video)
- Features
Rated for copper or aluminum conductors;Lay-in primary ports allow feed through of two primary conductors with no need to break the main feeder cable;Valox insulating base provides a high degree of impact resistance with superior insulating qualities |
Multiple taps - depending on product selected, up to twelve taps can be taken from one or two mains |
Range taking - provides tapping flexibility over a broad wire range |
Electro tin plated provides low contact resistance |
Dual-rated for aluminum and copper conductor except for PDBU-55-600-1 and PDB-55-600-1 rated for copper wire only |
Manufactured from high strength 6061-T6 aluminum alloy - suitable for use with either copper or aluminum conductors |
UL recognized rated 90 deg C and is CSA certified, rated for 600 VAC ensures reliability |
Provides low contact resistance |
Suitable for use with either copper or aluminum conductors |
Ensures reliability |
Range taking for reduced inventories and flexibility |
3/8 in hex primary, 3/8 in hex secondary |
90 deg C temperature rating |
Block L |
(2) box lug primary, (2) box lug secondary |
4 AWG to 500 kcmil primary and secondary wire size |
Valox® insulating base |
UL assigned short circuit current rating |
Provides great flexibility in using the connector as an in-line splice or to reduce conductor size |
Additional 8-14 tap on PDBU-55-500-1,PDB-55-500-1, PDBU-55-600-1 and PDB-55-600-1 |
