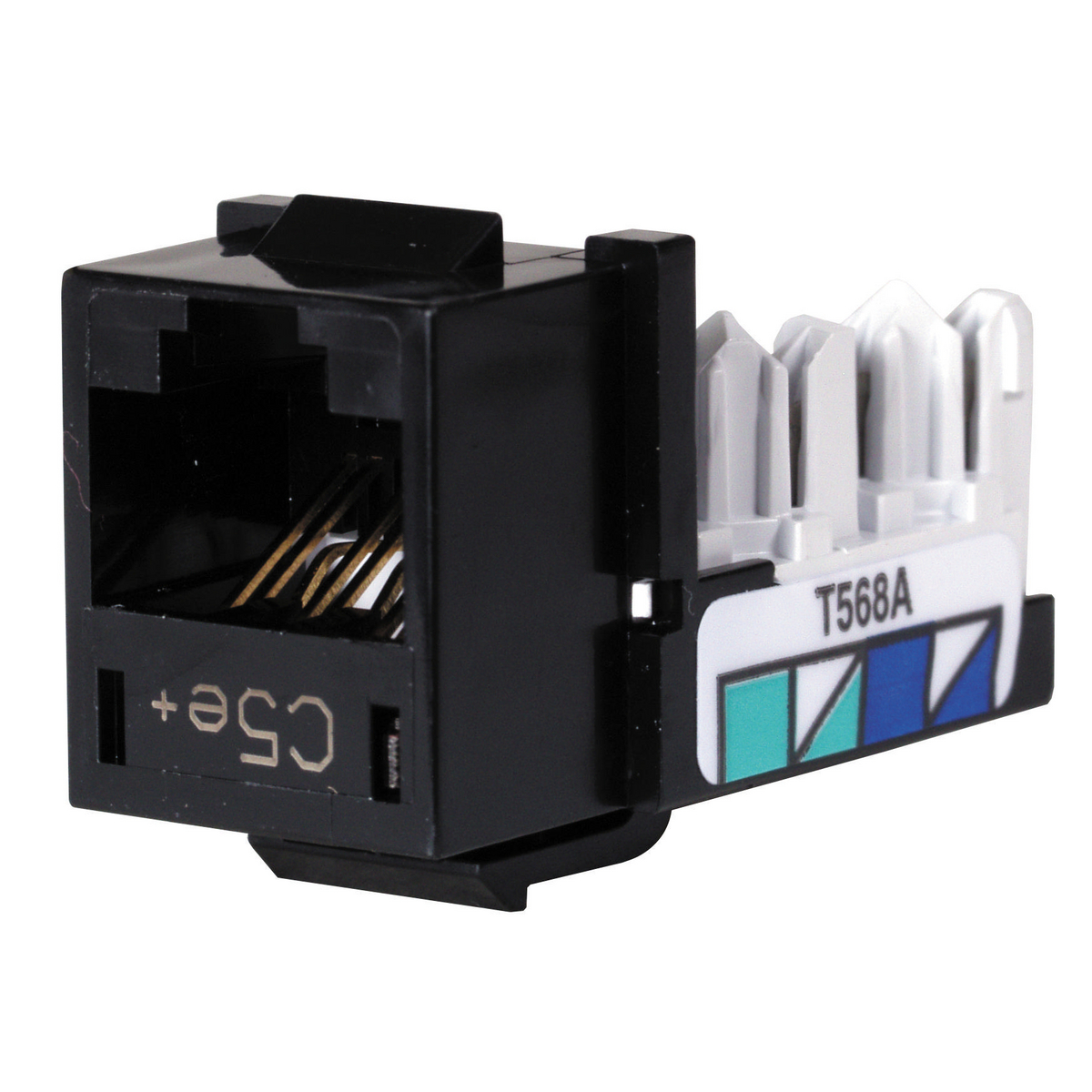

Hubbell® XCELERATOR™ SPEEDGAIN® HXJ5EBK Snap-Fit Standard Modular Jack, Cat 5e Module, Keystone Mount, 1 Port, Black
UTP Jack Inserts
47822
MFG #: HXJ5EBK
Hubbell Premise Wiring
10.47000
/ ea
- Catalog 1 URL - PREMISE_WIRING_HXJ5EB_Catalog_2.pdf(Catalog 1 URL)
- Catalog URL - Wiring_Device_Kellems_HDMIC14_Brochure.pdf(Catalog URL)
- http://www.hubbell-premise.com(Seller Home Page URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - HWS772036_INST_HJU_SERIES_UTP_JACK.pdf(Install Instructions 1 URL)
- Line Drawing URL - HPW_HXJ5E_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11455_8923472-SPE-EN-1.pdf(Spec Sheet URL)
- Spec Sheet URL - 11456_DTFIZOJCVGNK7015.pdf(Spec Sheet URL)
- Spec Sheet URL - 8923472-SPE-EN-1.pdf(Spec Sheet URL)
- Spec Sheet URL - PREMISE_HXJ5EBK_spec.pdf(Spec Sheet URL)
- Applications
- Features
| Up to 2.5GBASE-T, 802.3bt POE |
| Quick-Lace Termination |
| One punch termination reduces termination time by 75% |
| Mating cycles exceed industry standards by two times |
| Exceeds component requirements by a minimum of 3 dB |
| 3+Gbs of bandwidth |
| 2000+ mating cycles with FCC compliant 8-position plug |
| Backwards compatible to Cat 5 and 3 |
| IDC pair splitting tower allows for minimum disruption to cable twist |
| Compatible with standard 110 termination tools |
| 8-positions and 4-contacts |
| Center balanced to Cat 5e plug specifications |
| Positive PSACR beyond 190 MHz |
| Exceeds component requirements by a minimum of 3 dB |
| 3+Gbs of bandwidth |
| Exceeds IEEE 802.3af DTE power specification to 4X the standard |
| For use with Hubbell® series wallplates |
| High impact thermoplastic (UL94V-0) housing, lexan (UL94V-0) stuffer cap, polypropylene dust cover |
| Beryllium copper with precious metal plating with nickel under plating nose contacts |
| Phosphor bronze with 100 micro in tin plating over nickel under plating IDC contacts |
| Withstands 1000 VAC RMS, 1414 VDC voltage |
| 100 Ohm contact resistance |
