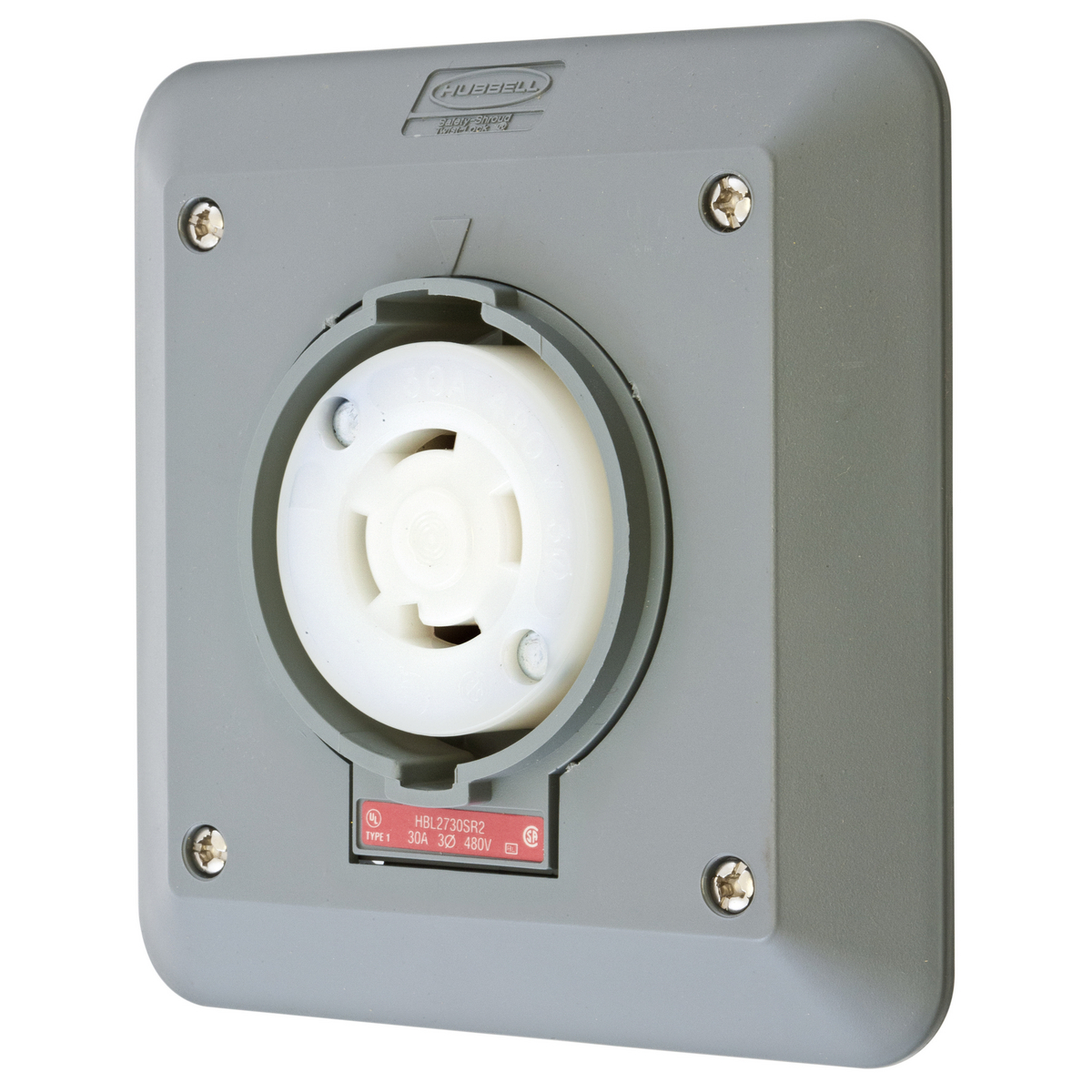

Hubbell Wiring Device-Kellems Twist-Lock® Safety-Shroud® HBL2730SR2 2-Gang Shrouded Single Locking Receptacle, 480 VAC, 30 A, 3 Poles, 4 Wires, Gray
Locking Receptacles
91951
MFG #: HBL2730SR2
Hubbell Wiring Device-Kellems
91.33000
/ ea
- Catalog URL - Wiring_Device_Kellems_HBL2830SW_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_AB8I95H3QU17LFYM.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_5M9A3N2C46BVERLI.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_7OMQGHWI0TLK856N.pdf(Spec Sheet URL)
- Tech Drawing URL - Wiring_Device_Kellems_HBL2310SR2_Technical_Drawing.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/cXi_GcGBWpc(Video)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty Industrial Shrouded |
| 2-Gang Surface Mount |
| Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected |
| Catalog number and color coded voltage rating are visible even when in use |
| Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments |
| Accepts Hubbell shrouded and standard NEMA locking plugs |
| 4-wire grounding |
| HB or better per UL 94 or CSA 22.2 no. 0.6 flammability |
| 30 A 10 AWG terminal accommodation |
| NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw |
| Zinc plated steel mounting screws |
| 0.031 in brass ground contact |
| Natural white nylon body contact carrier material |
| Steel rivet material |
| Steel, nickel plated 0.08 in curved, scalloped terminal clamp material |
| Gray Valox® 357U housing and flange material |
| Galvanized steel mounting plate material |
| 3-phase |
| Accepts Hubbell shrouded and standard NEMA locking plugs |
| Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected |
| Catalog number and color coded voltage rating are easily visible even when in use |
| Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy duty industrial environments |
