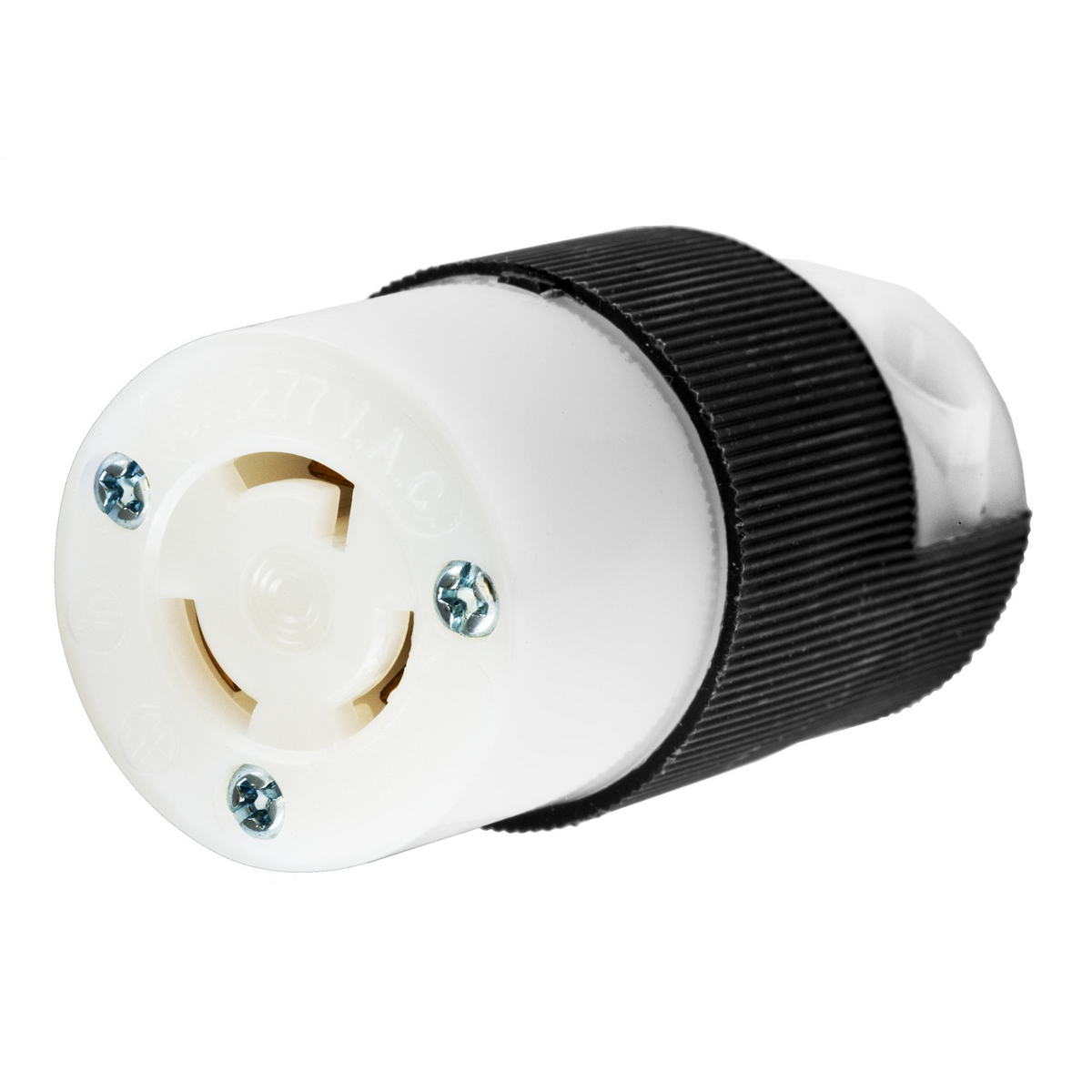

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL4779C Grounding Locking Connector, 277 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Locking Connectors
26447
MFG #: HBL4779C
Hubbell Wiring Device-Kellems
43.93000
/ ea
Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, Grounding, 277 VAC, 15 A, 2 hp, 2 Pole, 3 Wires, NEMA L7-15R, Grade: Industrial, IP20 Enclosure, 0.23 to 0.72 in Cord Dia, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 1.53 in Dia x 2.78 in L
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_FSUQ4CTE97YAVRW6.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_AO58VHEQ4XM30N72.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_8ES7F4D3IOR15AB0.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL4779C_M7152_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty Industrial |
| Standard Product |
| Ribbed nylon housing provides secure, impact and chemical resistant grip |
| Superior cord grip design protects terminations from excess strain |
| Integral VARI-SIZE® insert accommodates a wide range of cord diameters |
| Clear polycarbonate terminal retainer |
| Natural white nylon cord clamp material, body contact carrier material |
| Steel nickel plated terminal clamp |
| Brass terminal screw, ground screw, contact spring, spring binding plate, ground contact |
| Steel zinc plated cord clamp screw, body holding screw |
| 15 A, 14 AWG terminal accommodation |
| Withstands 2000 VAC dielectric voltage |
| Cord mounted |
| Insulated body |
| 14 to 12 AWG wire size |
