Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2813 Grounding Heavy Duty Locking Connector, 120/208Y VAC, 30 A, 4 Poles, 5 Wires, Black/White
Locking Connectors
26347
MFG #: HBL2813
Hubbell Wiring Device-Kellems
122.29000
/ ea

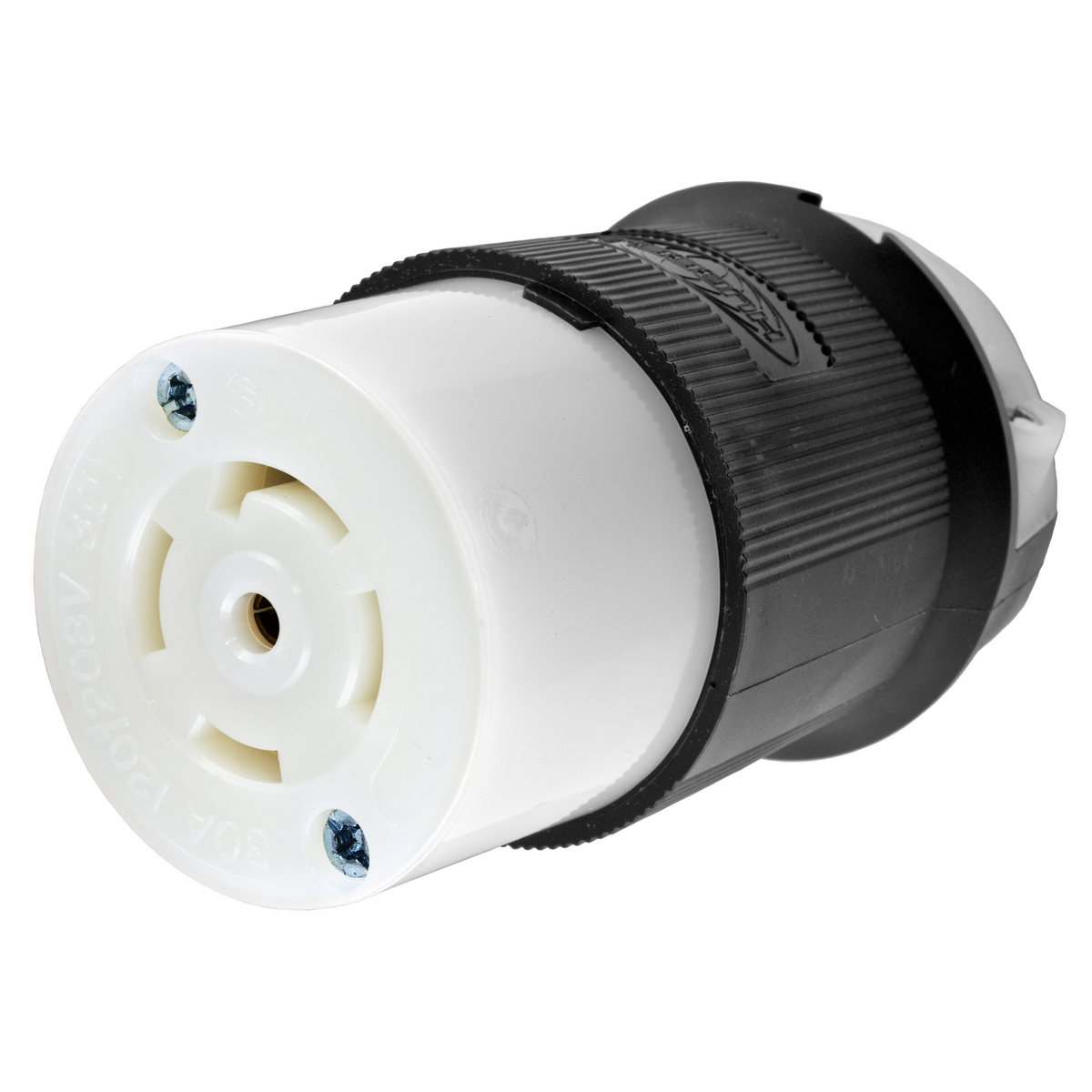

Wiring Device-Kellems Twist-Lock® Insulgrip® Locking Connector, Grounding Heavy Duty, 120/208Y VAC, 30 A, 3 hp, 4 Pole, 5 Wires, NEMA L21-30R, Grade: Commercial/Industrial, IP20 Enclosure, 0.35 to 1.15 in Cord Dia, -40 to 75 deg C, Pressure Screw Terminal, Composite, Black/White, 3.84 in L x 2.22 in W
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_1LUJIPK9Y5XDHOBC.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD1730_INSTALLINST.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_E9LSHW4GPZ06YBDN.pdf(Line Drawing URL)
- Line Drawing URL - WDK_HBL2813_DRAWINGS_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_FL6BC2V5DUWI1RJQ.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL2813_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - WIRING_HBL2813_M7904_ACAD_DRAWING.dwg(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty Industrial |
| Standard Product |
| Clear polycarbonate terminal retainer |
| Natural white nylon cord clamp material |
| 0.08 in (2) steel nickel plated terminal clamp |
| #10-32 brass (white finish on neutral screw when used) multi-drive terminal screw |
| #10-32 brass (green finish) multi-drive ground screw |
| Steel, zinc plated multi-drive cord clamp screw |
| Steel, zinc plated multi-drive body holding screw |
| Brass contact spring, brass spring binding plate, 0.031 in brass ground contact |
| Molded-in or stamped on ratings, withstands 2000 VAC minimum dielectric voltage |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75% temperature rise |
| Round portable service cords of diameters commensurate with the device rating as defined in UL standard 62, CSA C22.2 No. 49 cord accommodation |
| Terminals identified in accordance with UL 498 (X, Y, Z, white, green) |
| HB or better per UL 94 or CSA 22.2 No. 0.6 flammability |
