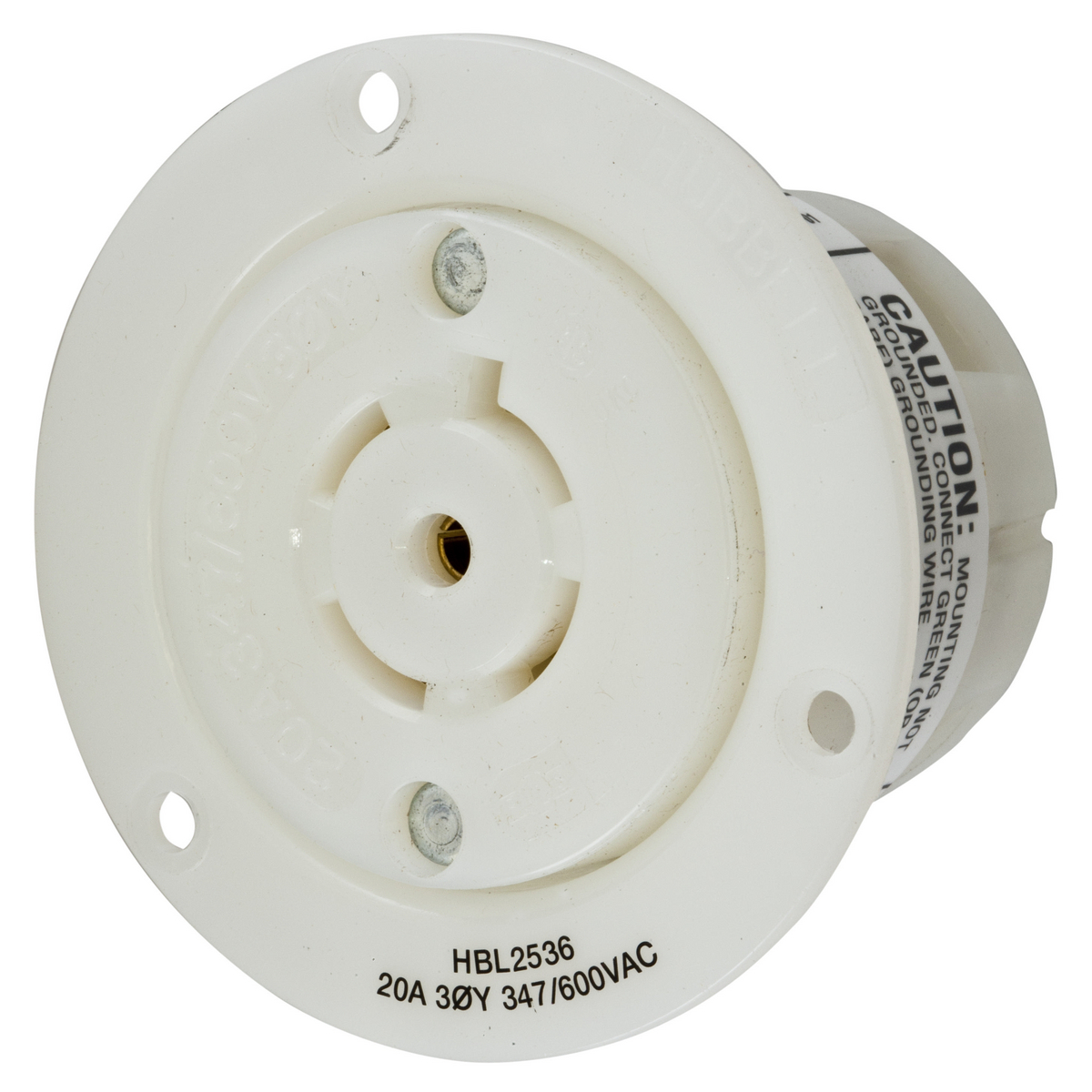

Hubbell Wiring Device-Kellems Twist-Lock® Insulgrip® HBL2536 Flanged Grounding Single Standard Locking Receptacle, 347/600 VAC, 20 A, 4 Poles, 5 Wires, White
Locking Receptacles
214921
MFG #: HBL2536
Hubbell Wiring Device-Kellems
141.29000
/ ea
- Catalog 1 URL - Wiring_Device_Kellems_HBL2466_Brochure.pdf(Catalog 1 URL)
- Catalog URL - Wiring_Device_Kellems_HBL2830SW_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_7WZFDB26PR04NTXM.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD1259_INSTALLINST.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_HN98ZOF3RWL6PKG1.pdf(Line Drawing URL)
- Line Drawing URL - WDK_HBL2536_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_5MV8SGZCDBJLROET.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL2536_spec.pdf(Spec Sheet URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Video - https://www.youtube.com/embed/cXi_GcGBWpc(Video)
- Tech Drawing URL - Wiring_Device_Kellems_HBL2436M9_Technical_Drawing.pdf(Tech Drawing URL)
- Applications
- Features
| Heavy Duty Industrial |
| Standard |
| NO 10-32 multiple drive terminal screws (slotted, Phillips, Robertson) |
| Certified for current interrupting at full rated current |
| Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75 |
| Terminals identified in accordance with UL 498 (x, y, z, white, green) terminal identification |
| 5-wire grounding |
| HB or better per UL 94 or CSA 22.2 no. 0.6 flammability |
| 20 A 12 AWG terminal accommodation |
| NO 10 to 32 brass (white finish on neutral screw when used) multi-drive terminal screw |
| Nickel-plated brass round head mounting screw material |
| 0.031 in brass ground contact |
| Natural white nylon body contact carrier material |
| 0.08 in steel-nickel plated terminal clamp |
| 3-phase |
| Natural white nylon flanged casing material |
| Zinc plated multi drive steel body holding screw |
| Back wired terminations for ease of installation |
| NO 10 to 32 multiple drive terminal screws (slotted, Phillips, Robertson) |
| Mounting screws included |
