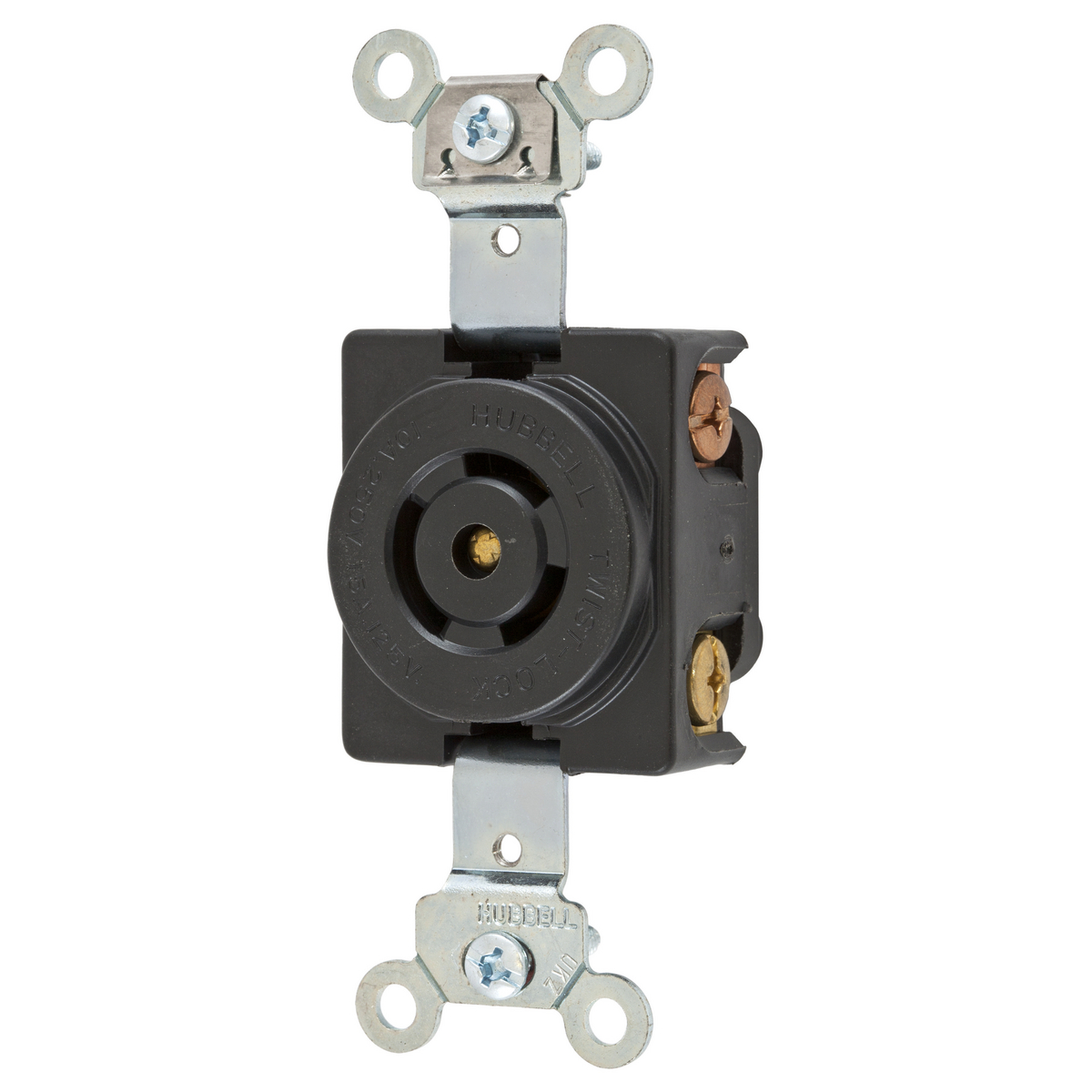

Hubbell Wiring Device-Kellems Twist-Lock® HBL7582G Grounding Midget Single Locking Receptacle, 125/250 VAC, 10/15 A, 2 Poles, 3 Wires, Black
Locking Receptacles
26655
MFG #: HBL7582G
Hubbell Wiring Device-Kellems
44.02000
/ ea
- Catalog URL - Wiring_Device_Kellems_HBL4585C_Catalog.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_Q1BIS5ACTO2R3YWE.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 11456_RXIJ8FKQ61CPMHO2.pdf(Spec Sheet URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Heavy Duty Industrial |
| Standard |
| 0.062 in steel terminal clamp |
| #8-32 brass terminal screw |
| #8-32 brass (green) ground screw |
| 0.031 in brass contact spring |
| Zinc plated steel mounting screw |
| Black nylon cover (top), black polyester base |
| 0.031 in brass ground contact |
| 0.05 in zinc plated steel bridge (mounting strap) |
| Brass rivet |
| Stainless steel auto ground clip |
| Molded in or stamped-on ratings |
| Permanently ink marked on product catalog number |
| Withstands 2000 VAC minimum dielectric voltage |
| Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current at a power factor of 75% |
| Terminals identified in accordance with UL 498 (x, y, z, white, green) |
| UL94 V-0 for receptacles and inlets, HB or better for plugs and connectors flammability |
| Corrosion resistant zinc plated steel one-piece mounting strap |
| 10 A at 250 VAC, 15 A at 125 VAC multi-rating |
| Thermoset construction offers high heat resistance |
| High performance copper alloy contacts |
