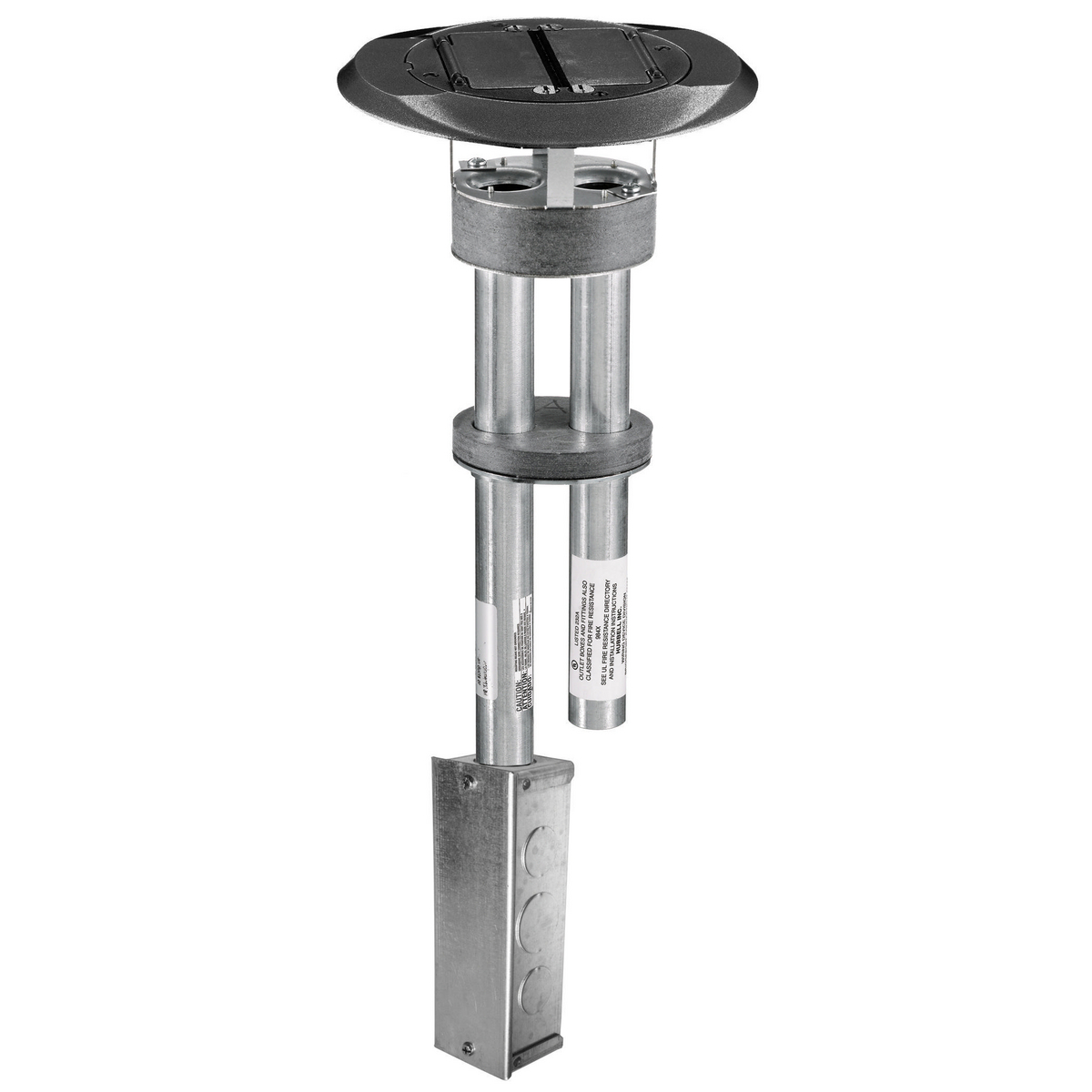

Hubbell Wiring Device-Kellems HCI S1PTBLJ FRPT,1 PC, 2 STYLE, SYS
Poke-Through Assembled Units
566585
MFG #: S1PTBLJ
Hubbell Wiring Device-Kellems
344.40000
/ ea
- Catalog URL - Wiring_Device_Kellems_PT2X2BL_Catalog.pdf(Catalog URL)
- http://www.hubbell-premise.com(Seller Home Page URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - WIRING_PD2104_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537662423311.pdf(Install Instructions URL)
- Line Drawing URL - WDK_S1PTJ_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11455_7WFZSTL8N0I2UE15.pdf(Spec Sheet URL)
- Spec Sheet URL - 11456_KE9V3AIFDMBQ61LN.pdf(Spec Sheet URL)
- Tech Drawing URL - PREMISE_WIRING_S1PTBLJ_Technical_Drawing.pdf(Tech Drawing URL)
- Applications
- Features
| Complete Units |
| With Junction Box |
| Excellent solution for retrofit and new construction |
| (1) 1 in top, (1) 3/4 in bottom, (2) 1/2 in, 1-3/4 in side knockout |
| Adjustable lower fire barrier accommodates concrete floor thicknesses from 2-1/4 to 7 in |
| Oversized EMT conduit tubes for increased cable capacity |
| Accepts all Hubbell SystemOne covers and sub-plates |
| Excellent solution for retrofit and new construction |
| Delivers power, voice, data and multimedia |
| UL listed for use in 1 to 4 hr fire rated floors at 100% rated fill |
| UL installation spacing - minimum 2 feet on center, not more than one per 65 sq -ft of floor area in each span |
| Flush connection type |
| 2.25 in over metal dec minimum thickness |
| 300 lb static load through 3 in diameter mandral |
| (2) 1 in EMT for power and low voltage |
