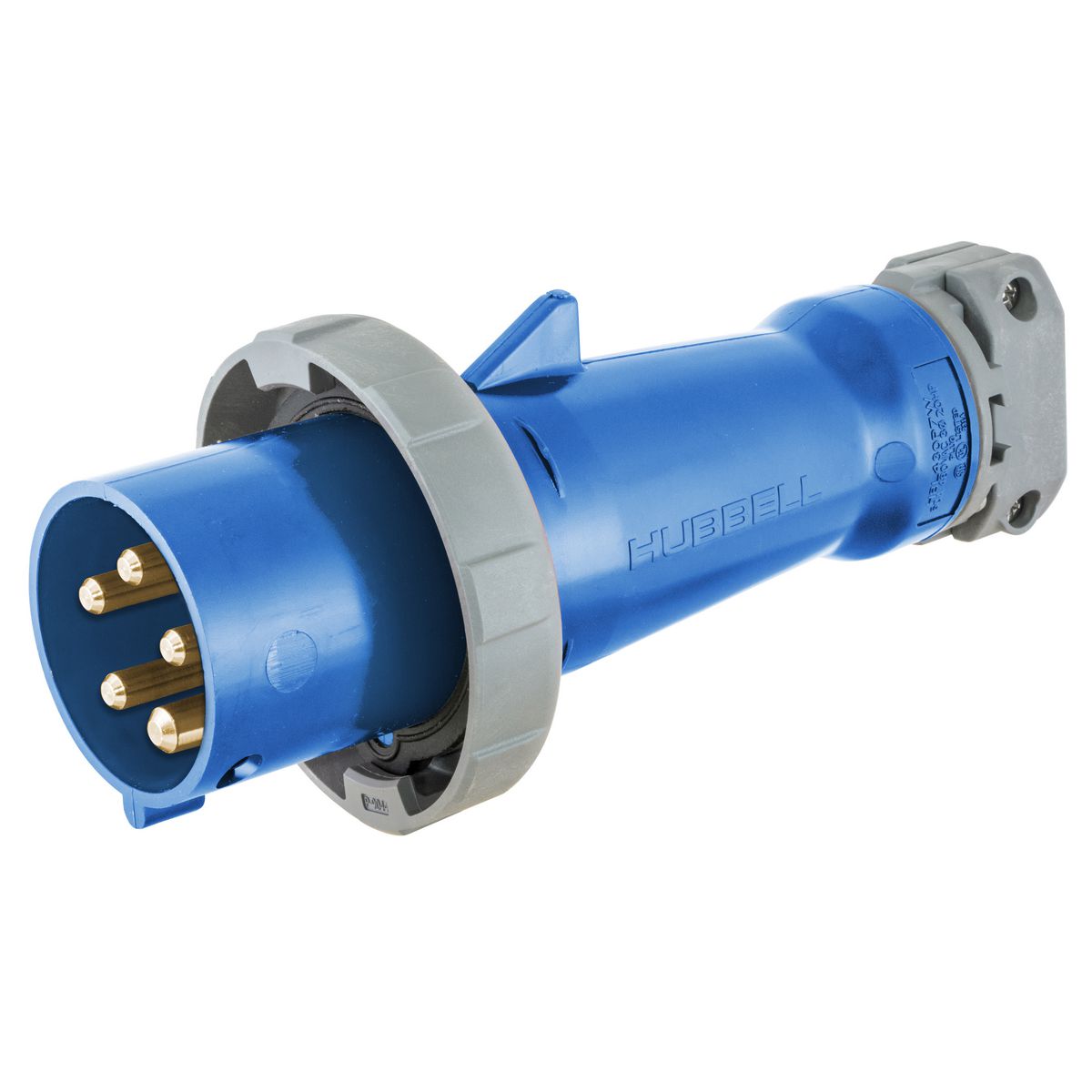

Hubbell Wiring Device-Kellems HBL560P9W Heavy Duty Male Standard Watertight Pin & Sleeve Plug, 120 to 208Y VAC, 60 A, 4 Poles, 5 Wires, Blue
Pin & Sleeve Plugs
27011
MFG #: HBL560P9W
Hubbell Wiring Device-Kellems
626.53000
/ ea
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_PDY5FZ2LGIMES1BW.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD1303_INSTALLINST.pdf(Install Instructions 1 URL)
- Line Drawing URL - 11456_6OL3W9TRUK7ZCD1M.pdf(Line Drawing URL)
- Line Drawing URL - WIRING_M13333_SALESDRAWING.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_NM8WE7DV0J4XUYZI.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL560P9W_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - Wiring_Device_Kellems_HBL560P5W_Technical_Drawing.pdf(Tech Drawing URL)
- Tech Drawing URL - WIRING_HBL560P9W_M13333_ACAD_DRAWING.dwg(Tech Drawing URL)
- Video - https://www.youtube.com/embed/pk3B7mE3w8Q(Video)
- Video - https://www.youtube.com/embed/ZP-jfAAABN0(Video)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Applications
- Features
| High Ampacity Connections |
| Watertight |
| Solid 1-piece pins for reliable electrical contact |
| Gasketed sealing ring provides watertight seal |
| Heavy duty external cord grips |
| Stainless steel terminal screws, assembly screws, cord clamp screws |
| Brass ground, phase pins |
| High impact thermoset contact carrier and retainer |
| Rynite SST35 lock ring, cord clamps, gland cap |
| 1/2 to 1.45 in cord clamp range |
| 3000 VAC minimum dielectric withstand voltage |
| Watertight per IEC 60309-1 |
