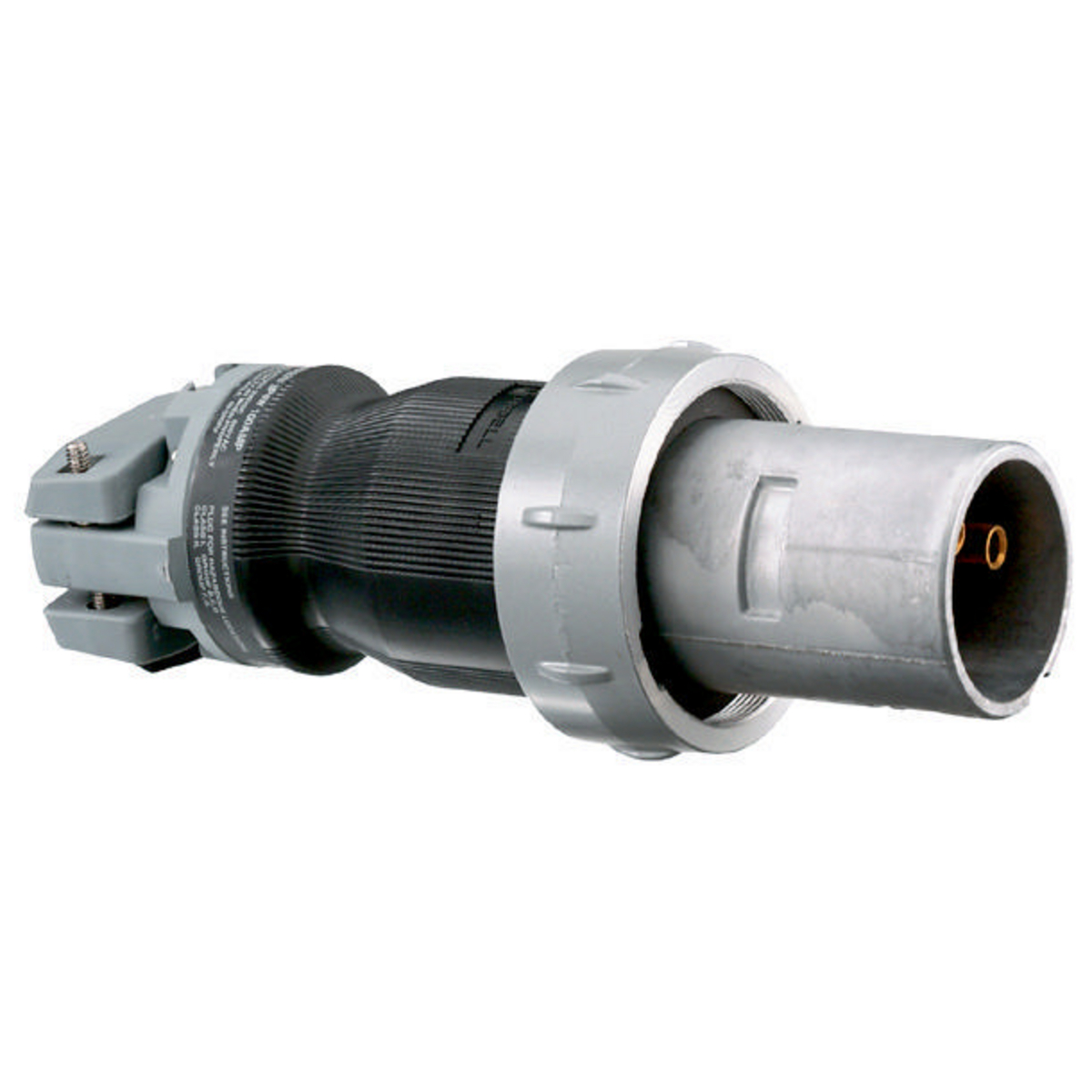

Hubbell® Insulgrip® HBL4100PS2W Watertight Pin & Sleeve Plug, 600 VAC/250 VDC, 100 A, 3 Poles, 4 Wires, Black/Gray
Pin & Sleeve Plugs
262524
MFG #: HBL4100PS2W
Hubbell Wiring Device-Kellems
824.61000
/ ea
- Catalog URL - IDW_DOCUMENT_334d39ff0470b0fa4ece909cfbd9ec82d05710b7cf58b345e872b742d2baf535.pdf(Catalog URL)
- http://www.hubbell-wiring.com/(Seller Home Page URL)
- Install Instructions 1 URL - 11456_0RKWVQB9LNHEF564.pdf(Install Instructions 1 URL)
- Install Instructions 1 URL - WIRING_PD1513_PD1581_INSTALLINST.pdf(Install Instructions 1 URL)
- Install Instructions URL - IDW_DOCUMENT_1537664753813.pdf(Install Instructions URL)
- Line Drawing URL - 11456_UW8MBVSKY2PQ5ZA0.pdf(Line Drawing URL)
- Line Drawing URL - WDK_HBL4100PS2W_DRAWING_PDF.pdf(Line Drawing URL)
- Spec Sheet URL - 11456_JX68ZAQYNIDB7HMT.pdf(Spec Sheet URL)
- Spec Sheet URL - WIRING_HBL4100PS2W_spec.pdf(Spec Sheet URL)
- Tech Drawing URL - Wiring_Device_Kellems_HBL3100PS2W_Technical_Drawing.pdf(Tech Drawing URL)
- Warranty URL - 11456_Y8PS6T0FNOGH3Q75.pdf(Warranty URL)
- Warranty URL - Wiring_WDK_Warranty.pdf(Warranty URL)
- Applications
- Features
| Metallic with Nylon Shroud |
| Watertight |
| Locking ring provides UL Type 4X watertight, dust tight seal |
| Catalog number and rating visible while in use |
| All brass sleeve contacts provide reliable electrical contact |
| Thermoset polyester contact carrier and retainer |
| Epoxy painted aluminum lock ring |
| Rynite SST35 cord clamps |
| 1.1 to 1.65 in cord clamp range |
| 3000 VAC minimum dielectric withstand voltage |
| NEMA 3/4/4X per UL 50 and CSA C22.2, No 94 |
