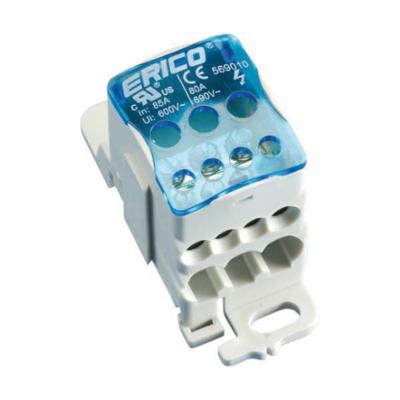

Erico® Eriflex 569010 Distribution Block, 1000 VAC/VDC/600 VAC, 80/85 A, 1 Poles, 16 to 4 AWG/16 to 8 AWG Wire
Single Pole Distribution Blocks
1317074
MFG #: 569010
nVent ERIFLEX
11.08000
/ ea
ERICO® Eriflex Distribution Block, 1000 VAC/VDC/600 VAC, 80/85 A, 1 Pole, 16 to 4 AWG/16 to 8 AWG Wire, 22/100 kA Short Circuit Current Rating, Copper/Thermoplastic, Tinned, Gray, 2.72 in H x 1.18 in W x 1.82 in D
- Features
| BLOCK,SINGLE POLE,DISTRIBUTION,80 A,600 V |
| Increase the number of outputs with one input using a jumper wire |
| Tinned copper block allows for copper or aluminium conductor connections |
| Screw retaining cover is hinged and removable |
| Design allows for visual inspection of conductor and confirmation of connection |
| Gangable for building multi-pole power blocks |
| Easily clips onto DIN rail or mounts to panel with screws |
| 95% fill ratio |
| Halogen-free |
| 3 kA short-term withstand current (Icw) |
| 1 line side connection/6 load side connections |
| 6 to 16 sq-mm line side compact stranded wire |
| 16 to 4 AWG line side wire |
| (2) 2.5 to 16 sq-mm, (4) 2.5 to 16 sq-mm load side compact stranded wire and load side stranded wire (ferrule) |
| (1) 14 to 2 AWG stranded and 14 to 10 AWG solid, (6) 14 to 4 AWG load side wire |
| IP20 enclosure |
