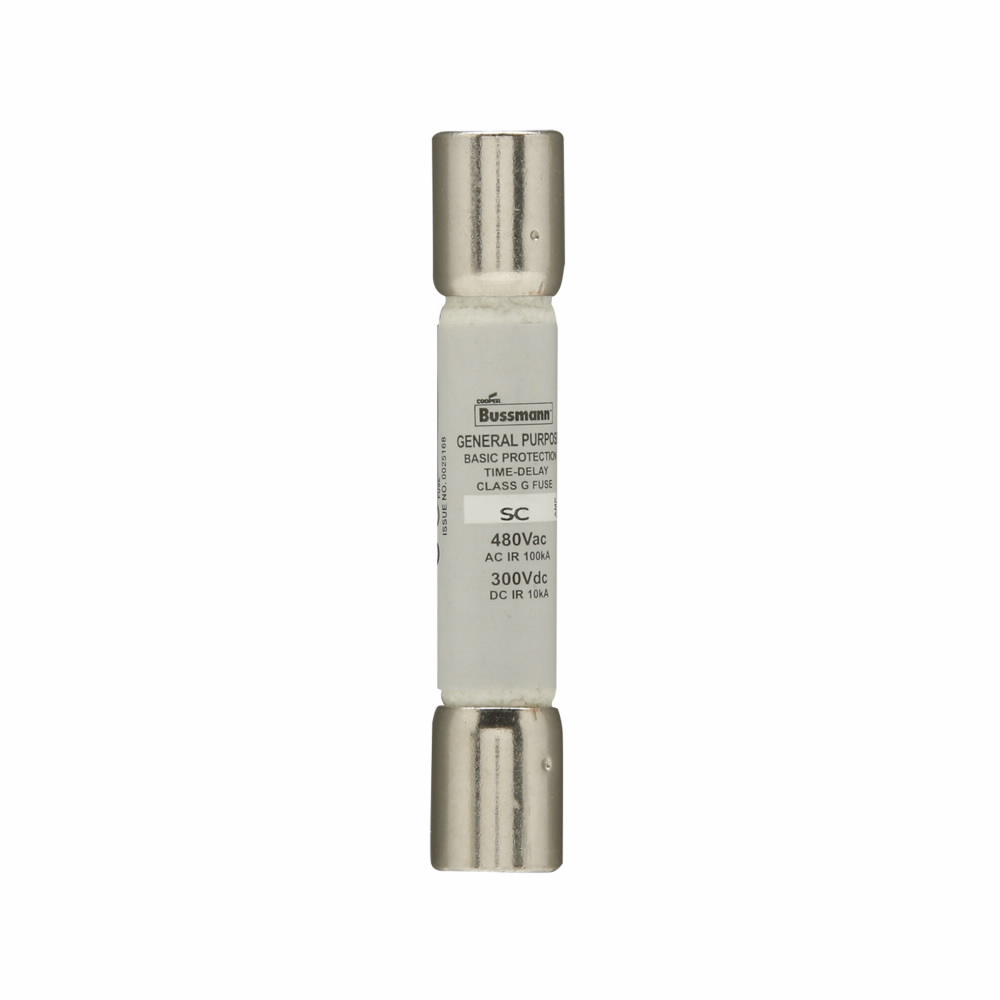

Bussmann® SC-40 SC Series Current Limiting Time Delay Fuse, 40 A, 480 VAC/300 VDC, 10/100 kA Interrupt, Class G
Time Delay Fuses
4917
MFG #: SC-40
Bussmann
46.83000
/ ea
- Brochure URL - COBUSSE01827_22.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_a73e48a1324643bc8154f8cc8ce546c3c38d7d1d19c040eb3ba364d2fb957940.pdf(Catalog URL)
- Compliance Cert URL - Bussmann_SC_1_Compliance_Certificate.pdf(Compliance Cert URL)
- http://www.bussmann.com(Seller Home Page URL)
- Spec Sheet 2 URL - IDW_DOCUMENT_1515125491433.pdf(Spec Sheet 2 URL)
- Spec Sheet URL - 10973_MT8VR61IJWBS5AZE.pdf(Spec Sheet URL)
- Spec Sheet URL - SC-40(Spec Sheet URL)
- Spec Sheet URL - skuPage.SC-40.pdf(Spec Sheet URL)
- Tech Bulletin URL - datasheet.php?model=FNQ-30&locale=en_GB(Tech Bulletin URL)
- Tech Drawing URL - Bus_Ele_DS_1024_SC.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/YMvqUyoETXk(Video)
- Applications
- Features
| Ind Facilities & Factories - Facility: Safety and Security Systems |
| Rejection Style |
| Current limiting for component protection, providing class G energy limitation for branch circuit protection |
| 100 kA interrupting rating provides cost effective branch circuit fusing |
| Variations in length help prevent overfusing |
| Most economical overcurrent protection solution compared to circuit breakers |
| For use in various non-demanding, general purpose applications |
| Compact branch circuit units with high interrupting rating and current limitation |
| With up to a 600 VAC rating, they can be used in 120/208 VAC, 120/240 VAC and 277/480 VAC circuits |
| Have a deg of overload time delay that permits them to pass temporary overloads |
| Basic protection class G size rejecting, current limiting fuses |
| 100 kA (RMS Symmetrical) at 480 VAC, 10 kA at 300 VDC interrupt rating |
| 12 sec (minimum) at 200% of rated current time delay |
