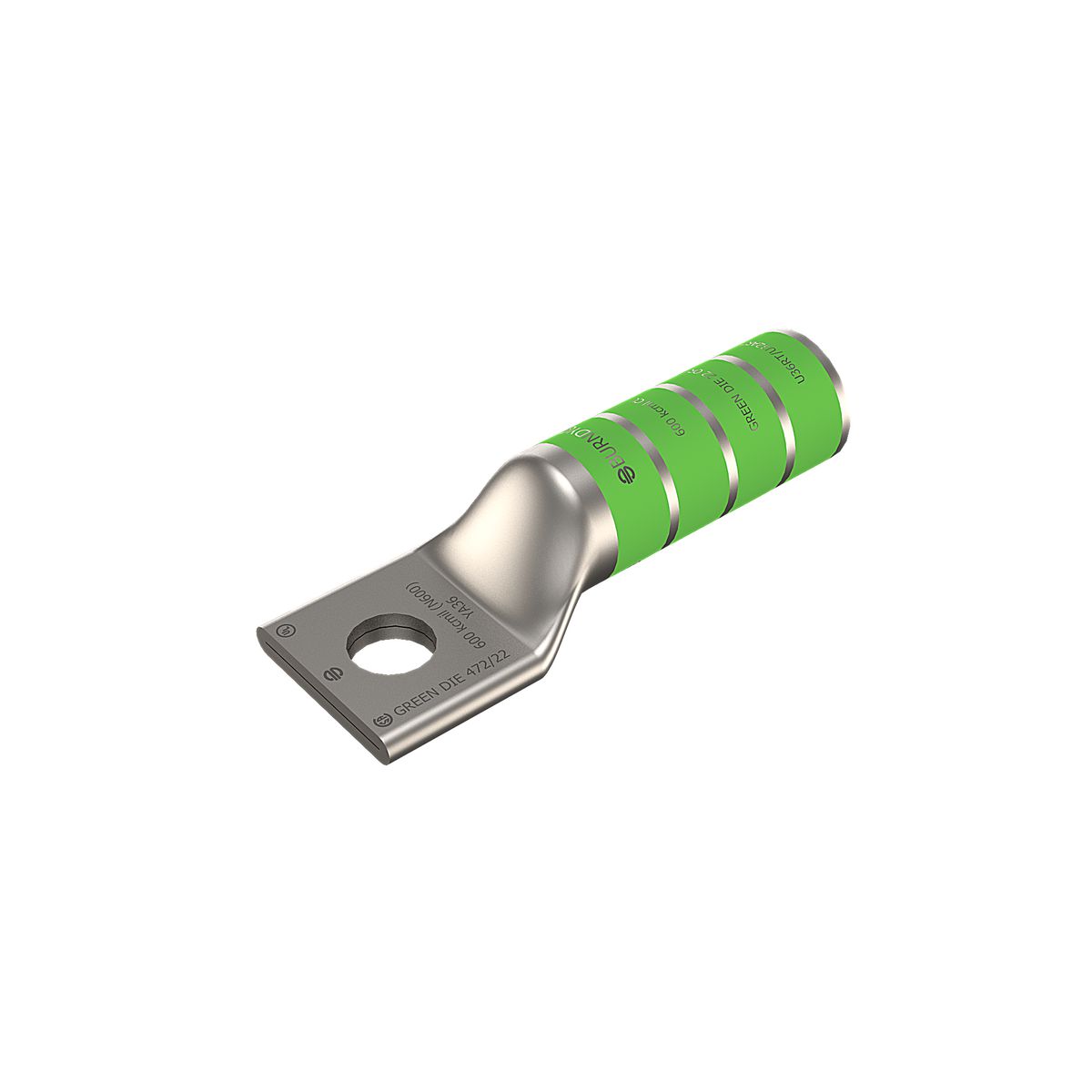

Burndy® YA36 HYLUG™ 1-Hole Compression Lug, 600 kcmil, Die Code 22/472, 5/8 in Stud, Copper
Lugs
19561
MFG #: YA36
BURNDY®
27.93000
/ ea
- Brochure URL - 10969_VKHZ635QTIN97BAU.pdf(Brochure URL)
- Catalog URL - IDW_DOCUMENT_0b3826189c604de794f9b64f7e431fba586771ce95f64af58a2979a45269ef90.pdf(Catalog URL)
- http://www.burndy.com(Seller Home Page URL)
- Install Instructions 1 URL - 10969_M6IT3GNVDBYQ1JEX.pdf(Install Instructions 1 URL)
- Spec Sheet URL - 10969_Y2KANHZVL84EI69P.pdf(Spec Sheet URL)
- Tech Drawing URL - 10969_ID-DRW-v1-SD_079849-07.pdf(Tech Drawing URL)
- Video - https://www.youtube.com/embed/pIuf8pkcL2Y(Video)
- Applications
- Features
| Wire Termination |
| Features: UL Listed 90 DEG C, 600 V - 35 KV, 45 DEG And 90 DEG Angles Are Available, Wire Strip Length: 2-3/4 IN, Finish: Electro-Tin Plated, Temperature Rating: 90 DEG C, Die Index: 22 Or 472, Tongue Angle: Straight, Color Code: Green, Tools, Die Set Catalog Number, And (number Of Crimps): Hydraulic: Y35, Y39, Y750, PAT750 Tool, U36RT, U32ART Die, (4), Y46 Tool, U36RT, U32ART Die With PUADP-1 Adapter, (4), Conductor Type: Commercial Stranded Copper, Dieless Tools (number Of Crimps): Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (4) |
| Electro-tin plated |
| 2-3/4 in L strip |
| 0.52 in bolt hole |
| Straight tongue angle |
| 0.27 in thickness |
| Without inspection window |
| Stud Hole Spacing: 1-3/4 in |
